Campfire Audio Relay DAC/AMP

The Relay DAC/AMP is Campfire Audio's portable USB-C DAC and headphone amplifier built around an AKM AK4493SEQ Velvet Sound DAC chip and a dual-output amplifier stage with both 3.5mm single-ended and 4.4mm balanced outputs. Six selectable digital filters and a 60-step volume control are accessible directly from the device. Designed, engineered, and final-assembled in Portland, Oregon by the team that hand-builds Campfire's IEMs.

Type and Technology

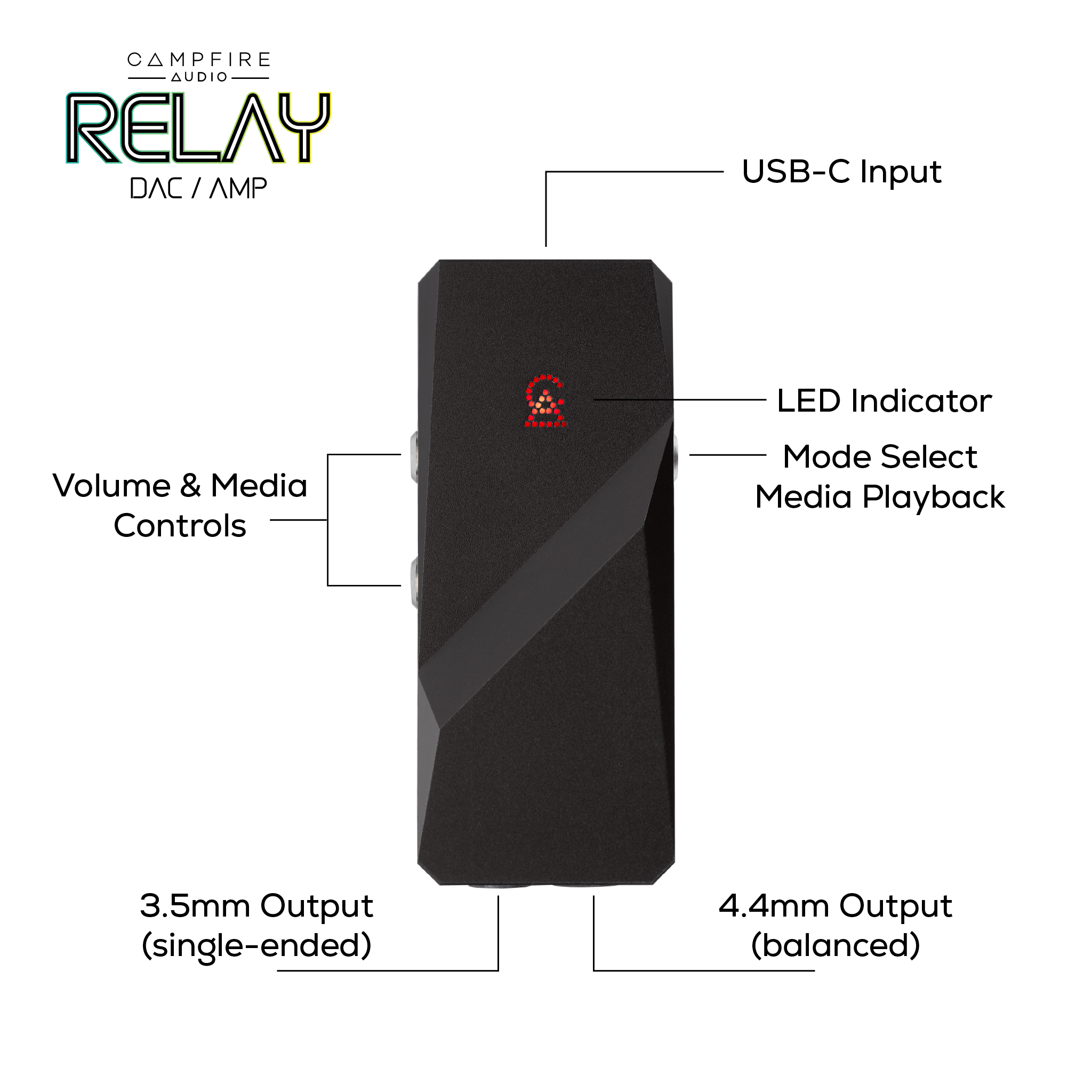

Bus-powered portable DAC/AMP. AKM AK4493SEQ DAC. Dual low-noise, high-output amplifier drivers, one per output. USB 2.0 Type-C input. 3.5mm single-ended and 4.4mm balanced headphone outputs. PCM support to 32-bit / 768 kHz; DSD support. Six selectable digital filter modes. High and Low gain. Media playback controls (play / pause / skip / previous). Status LED on the "CA" logo reports gain, filter, and audio resolution.

Sound Character

The AK4493SEQ contributes a balanced, slightly analog tonality with strong micro-dynamic detail and a low noise floor. The amplifier stage drives sensitive IEMs cleanly on Low gain and shifts to enough output current on High gain to handle most full-size dynamic and planar headphones in portable use.

Modular Expansion

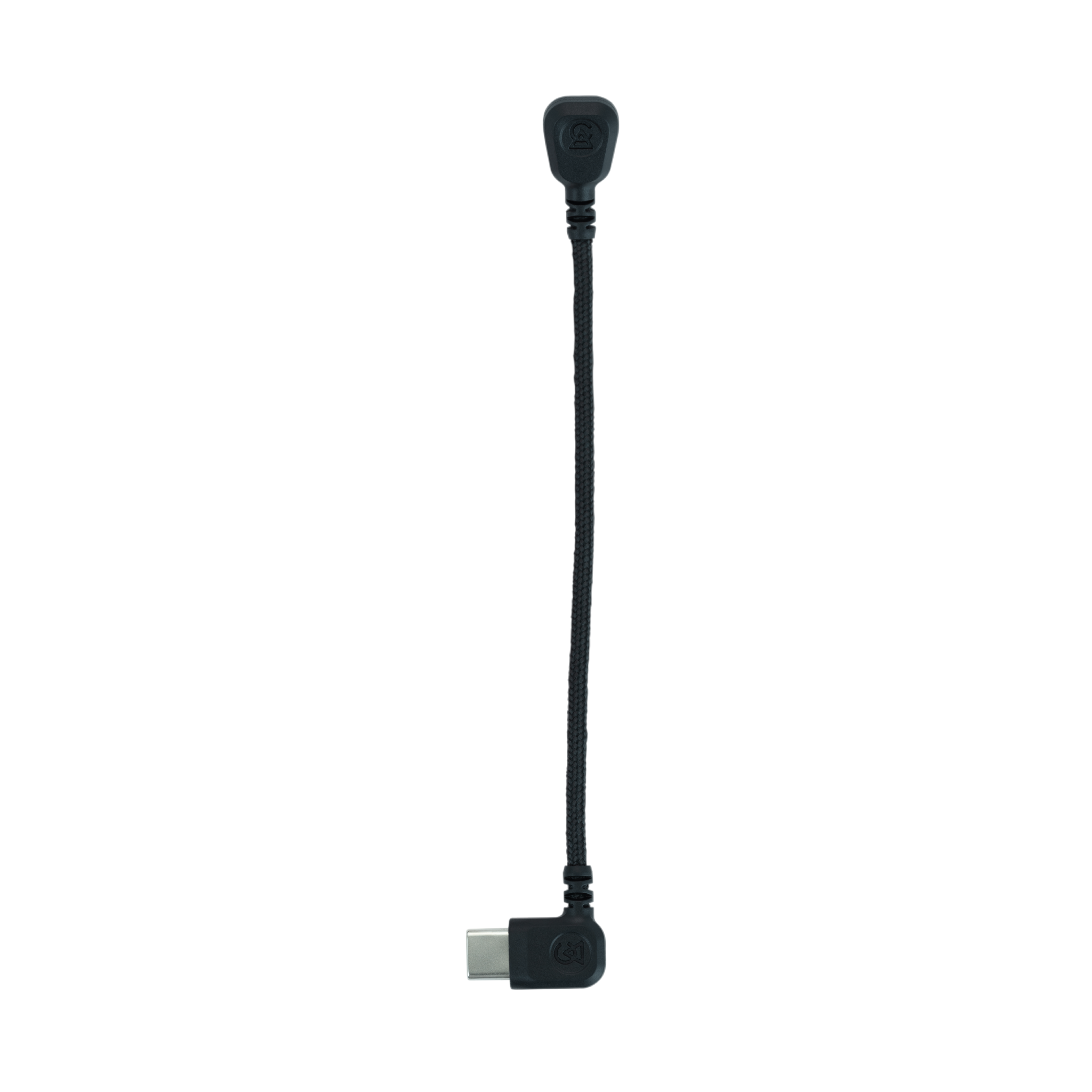

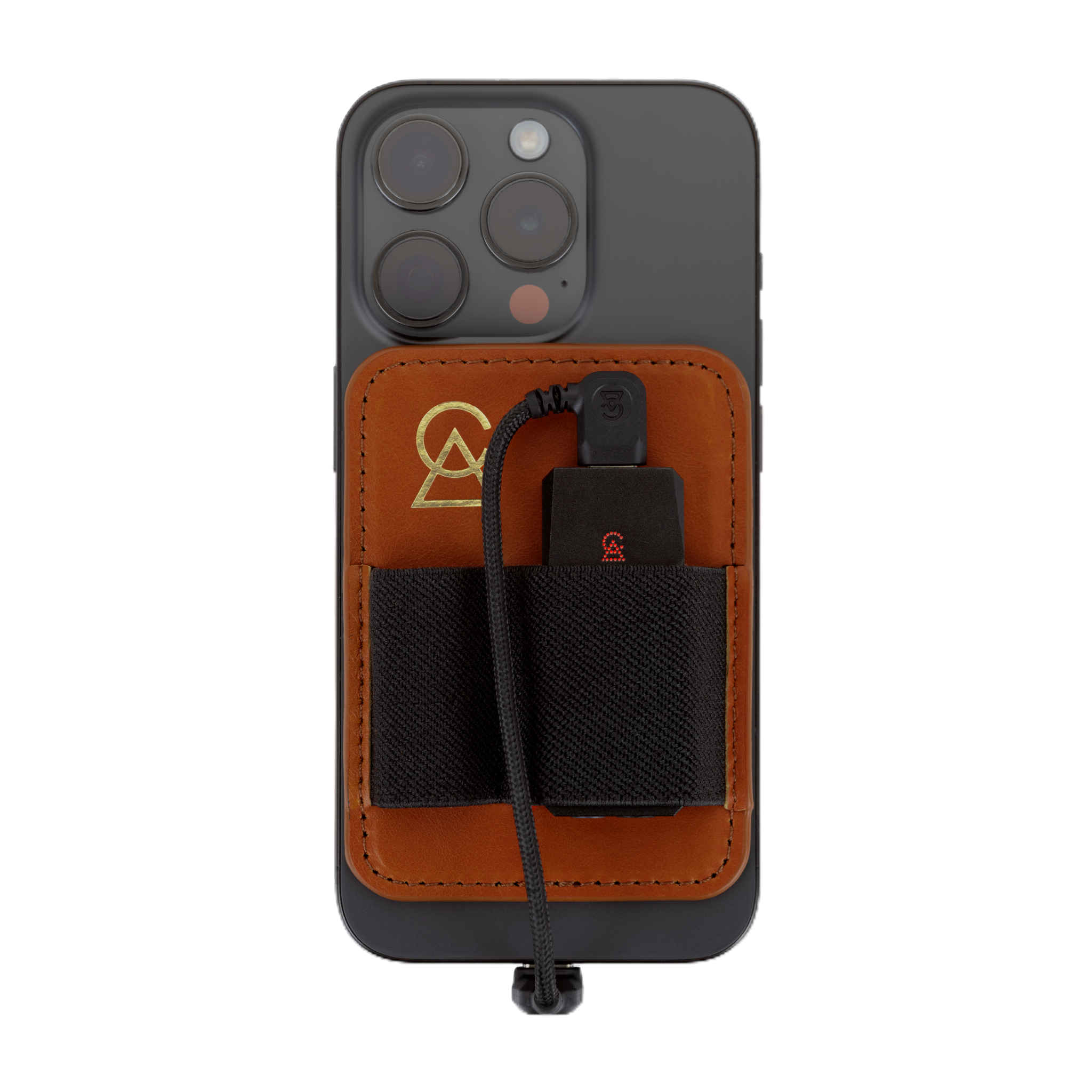

Pairs with the Campfire Audio Portable DAC Mag Wallet (sold as an add-on variant below) for magnetic attachment to the back of a MagSafe-equipped phone or case, with a short dual-angle USB-C cable that minimizes connector strain.

Build and Connectivity

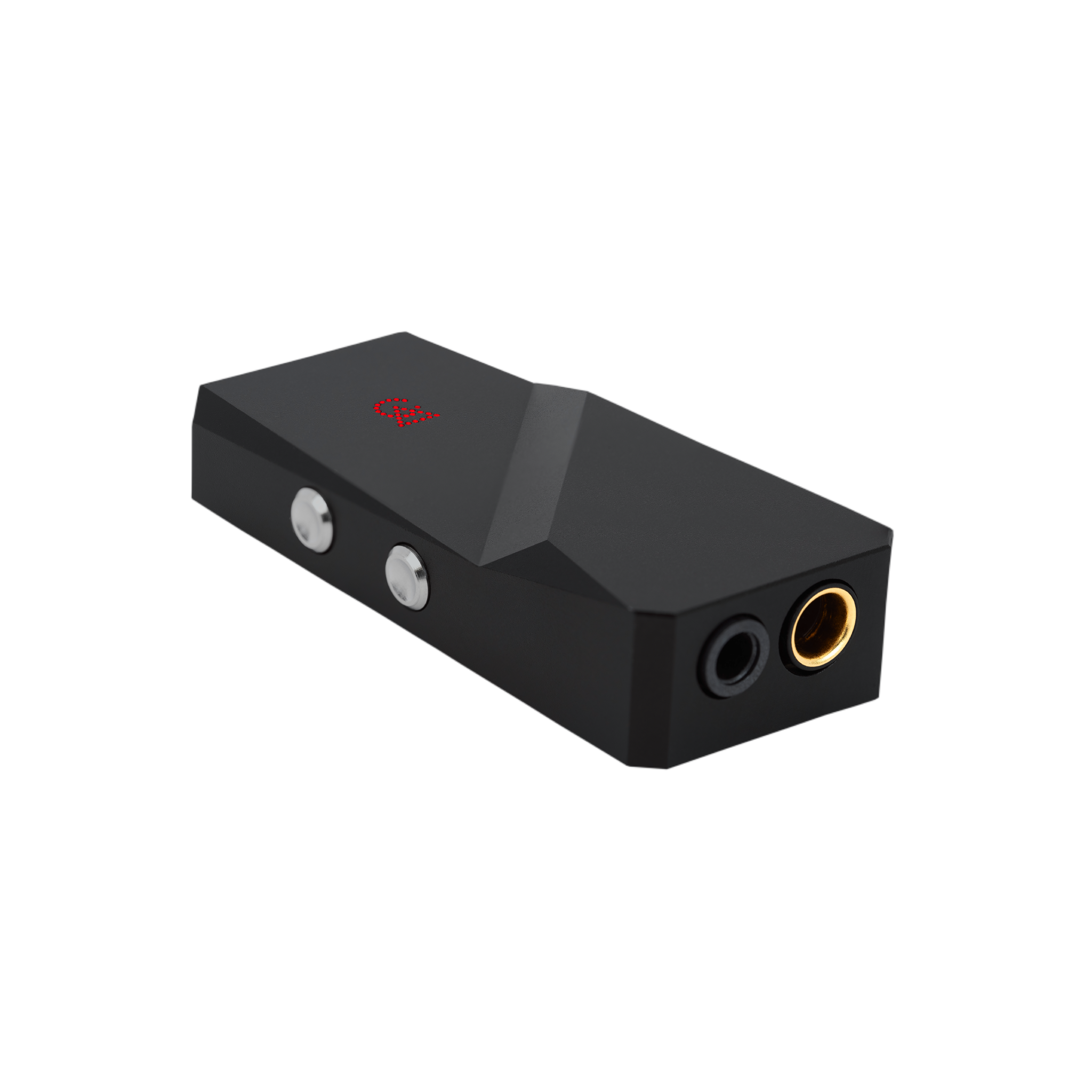

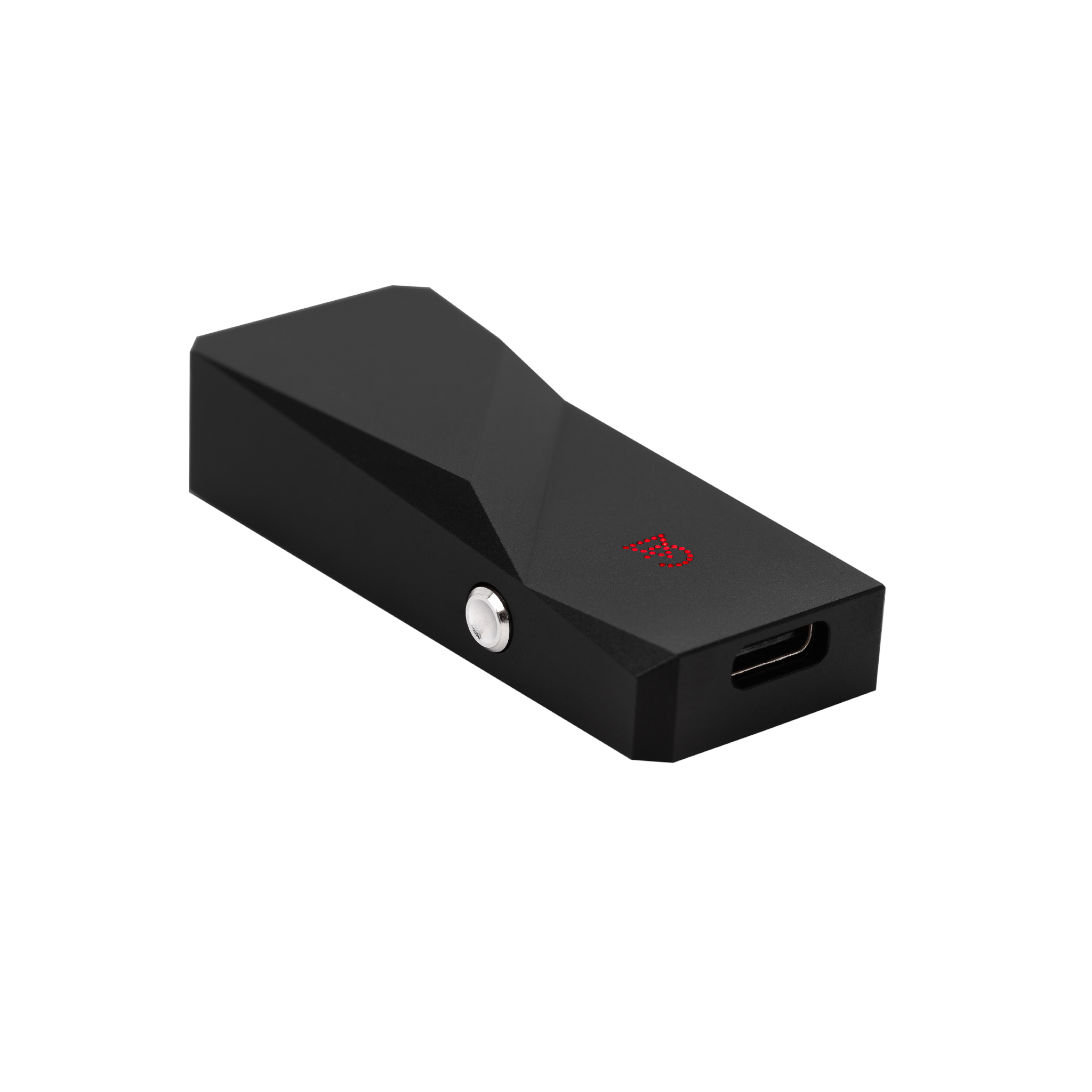

Black PVD-coated CNC aluminum chassis, approximately 57 × 23 × 10 mm. USB Type-C input on one end; 3.5mm and 4.4mm outputs on the other. Bus-powered, no internal battery, no charging step. Two-year manufacturer warranty.

Best For

Listeners who want a single portable DAC/AMP that handles both sensitive IEMs and demanding full-size headphones without a gain compromise, and phone-based audiophiles who want balanced output, filter selection, and physical controls in something that travels on the back of a phone. Direct pairing with any current Campfire IEM, including the Andromeda 10 and Grand Luna.

What's in the Box

• Relay DAC/AMP
• USB-C to USB-C cable
• RipStop cushioned accessory bag
• Microfiber cleaning cloth
• Portable DAC Mag Wallet with dual-angle USB-C cable and adhesive magnet ring adapter (included only with the "with Portable Mag Wallet" variant)

Specifications

Options

Choose Standalone ($229) for the Relay alone, or With Portable Mag Wallet ($288) to add the magnetic phone wallet, dual-angle USB-C cable, and adhesive magnet ring adapter for non-MagSafe devices.
