Benchmark DAC3 B

Sale price$1,899.00
5.0

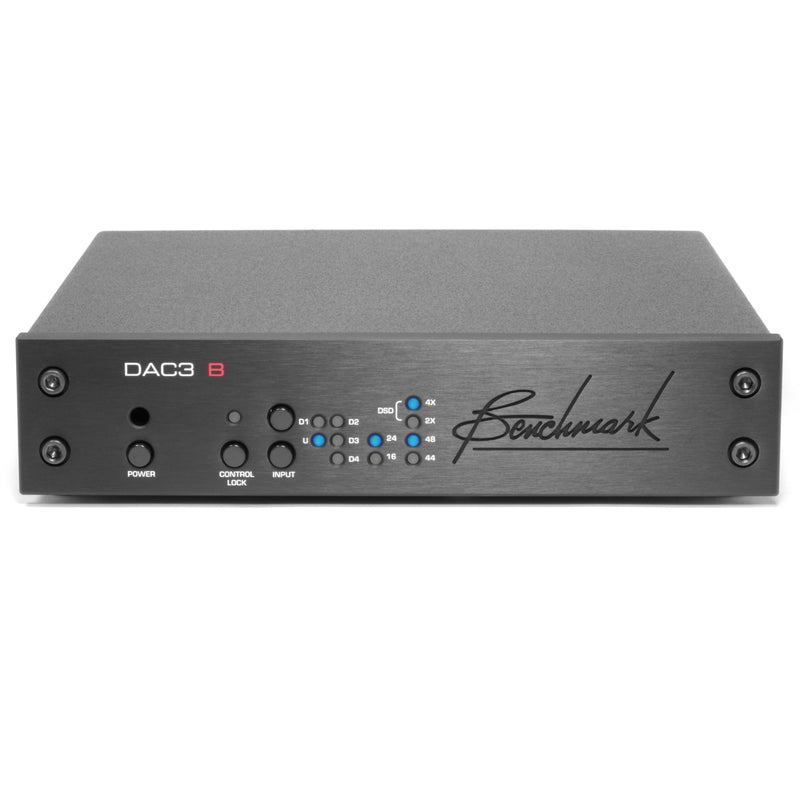

Color: Black

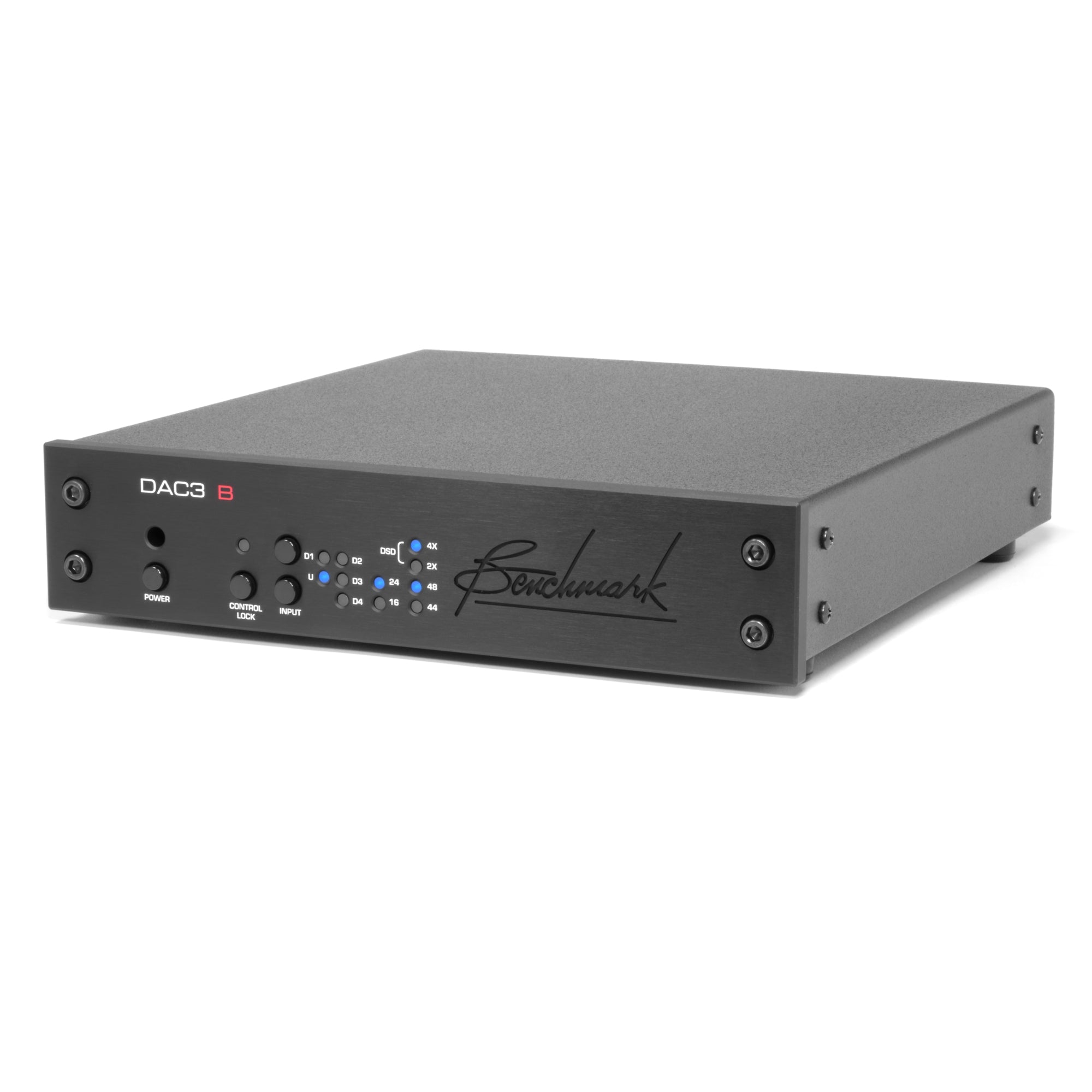

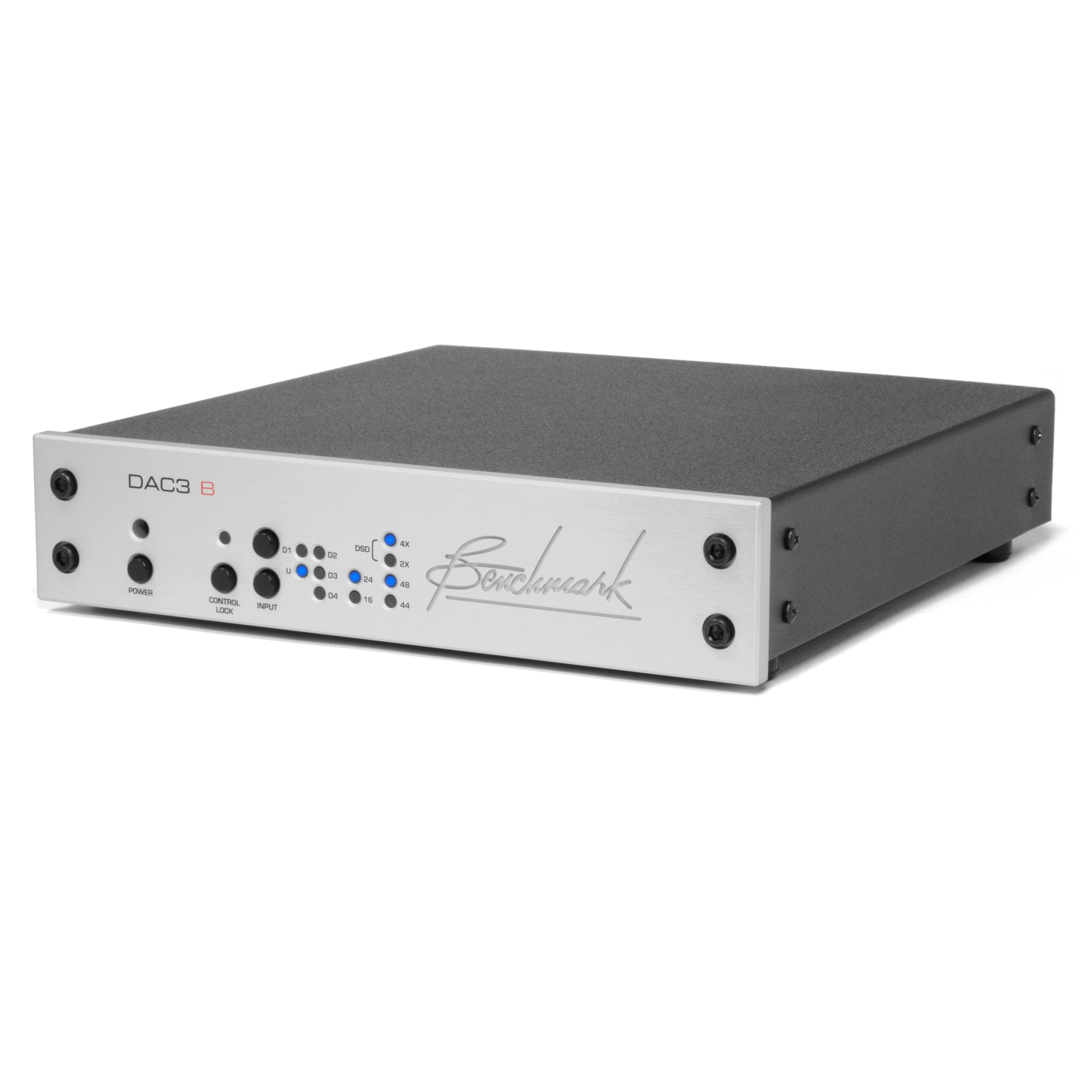

Benchmark DAC3 B

The DAC3 B is the ideal converter to use in front of Benchmark's HPA4 headphone amplifier or LA4 line amplifier. It is also ideal for many professional studio applications. It delivers the full performance of the flagship DAC3 HGC, but eliminates the volume control, the analog inputs, the mute and polarity controls, and the headphone amplifier.

  • DAC3 B - REFERENCE QUALITY - BASIC FEATURES

    The DAC3 B is the basic D/A converter in Benchmark's DAC3 converter series. The DAC3 B is the ideal converter to use in front of Benchmark's HPA4headphone amplifier or LA4 line amplifier. It is also ideal for many professional studio applications. It delivers the full performance of the flagship DAC3 HGC, but eliminates the volume control, the analog inputs, the mute and polarity controls, and the headphone amplifier.

    To make system integration easy, the DAC3 B retains IR remote control (handset optional), 12 V trigger,  and the programmable auto-on feature. The DAC3 Badds a control-lock feature that turns off the remote control and locks the keypad to prevent tampering and accidental changes. The optional 1/2-width rack-mount faceplate allows the mounting of two units in a single 1-RU rack space.

  • The DAC3 B sounds exactly like the DAC3 HGC because it uses the exact same circuit board and the exact same audio path. Benchmark has simply eliminated the unnecessary parts to deliver a stripped down race car of a converter. If you want a basic D/A converter that delivers the finest conversion available, the DAC3 B is for you.

  • The DAC3 B  is a 2-channel D/A converter featuring the new ESS Technologies ES9028PRO converter chip. The DAC3 converter has lower THD and THD+N noise than Benchmark's DAC2 converters.

  • Benchmark's DAC1 and DAC2 D/A converter families have been the reference to which other converters have been compared. It is rare to find a converter review that does not draw comparisons to the DAC1 or the DAC2. Benchmark converters are in daily use at many of the world's finest recording studios and mastering rooms. Benchmark converters are also enjoyed by thousands of audiophiles. Benchmark has raised the bar again ... the DAC3 defines a new reference.

    REFERENCE PERFORMANCE

    The DAC3  delivers outstanding musical detail and precise stereo imaging. It employs an advanced high-headroom digital filter design, and a high-sample-rate Asynchronous USB Audio interface. All inputs are fully isolated from interface jitter by Benchmark's new UltraLock3™ jitter attenuation system.

    Internal digital processing and conversion is 32-bits, and this processing includes 3.5 dB of headroom above 0 dBFS. This headroom prevents the DSP overloads that commonly occur in other D/A converters.

    Four balanced 32-bit D/A converters are summed together to create each balanced analog output. This 4:1 summation provides a 6 dB noise reduction, and gives the DAC3 industry-leading performance.

    DAC3 VS. DAC2

    The DAC3builds upon Benchmark’s highly successful DAC2 product family. The DAC3 maintains the familiar DAC2 form factor and feature set, but adds the higher performance available from the new ES9028PRO D/A converter. The DAC3 offers the following improvements over the DAC2:

    • Active 2nd Harmonic Compensation
    • Active 3rd Harmonic Compensation
    • Lower THD+N
    • Lower passband ripple
    • Improved frequency response
    • Faster PLL lock times
    • Faster switching between input signals

    DAC3 VS. DAC1

    The DAC3 and DAC2 added these features that were not found on the DAC1:

    • Asynchronous 192kHz USB Audio 2.0
    • 32-bit D/A conversion system
    • Word Length Display
    • Sample Rate Display
    • Direct DSD D/A Conversion
    • Bi-Directional 12V Trigger
    • Power Switch with Auto-On Function
    • Digital Pass-Through
    • High-Headroom DSP
    • Additional I/O

    NATIVE DSD CONVERSION

    All digital inputs on the DAC3 support native 192 kHz PCM or DSD64 conversion. From any input, DSD is transported with bit accuracy over DoP 1.1. DSD and PCM are both natively converted to analog. There are no DSD to PCM or PCM to DSD conversions to compromise the quality of the music. The DAC3 conversion system seamlessly switches between native PCM and native DSD conversion. DSD over DoP 1.1 is supported by many media players, and DSD downloads are now available from several sources.


    SONICALLY-NEUTRAL STUDIO MONITORING

    All Benchmark converters are designed for maximum transparency. This transparency is absolutely essential in the studio monitoring chain. For this reason, DAC3 converters are ideal for critical reference-quality professional systems. Unlike many competing products, the DAC3 is not designed to add "euphonic" coloration to the audio. Instead it is designed to be as uncolored and natural as possible.

    STEP INTO THE STUDIO

    When Benchmark's professional converters are used in hi-fi applications, studio-quality sound can be enjoyed in a home environment. Enjoy pure music without any coloration from the electronics. Hear the music exactly the way it was heard in the studio, and exactly the way the artists intended.

    Discover the natural, uncolored, analog sound of the DAC3.

    SIT IN THE PERFORMANCE SPACE

    Transparent sound can go beyond replicating the studio experience. Recordings that have been produced with a natural and unprocessed sound can transport you to the performance space. But, this can only happen when the entire playback chain is selected for maximum transparency.

    This experience of "being there" cannot be created by systems that are designed to add "warmth" or "euphonic color" to the music.


DESIGNED, ASSEMBLED, AND TESTED IN THE USA

This Benchmark product was designed, assembled, and tested in the USA using USA and imported components. Most major components are made in USA.

  •


    AUDIO PERFORMANCE

    Fs = 44.1 to 96 kHz, 20 to 20 kHz BW, 1 kHz test tone, 0 dBFS = +24 dBu (unless noted)

    SNR – A-Weighted, 0 dBFS = +24 dBu

    125 dB, 128 dB relative to intersample peaks

    SNR – Unweighted, 0 dBFS = +24 dBu

    123 dB, 126 dB relative to intersample peaks

    THD+N, 1 kHz at 0 dBFS

    -113 dBFS, -113 dB, 0.00022%

    THD+N, 1 kHz at -1 dBFS

    -114 dBFS, -113 dB, 0.00022%

    THD+N, 1 kHz at –3 dBFS

    -119 dBFS, -116 dB, 0.00016%

    THD+N, 20 to 20 kHz test tone at –3 dBFS

    -113 dBFS, -110 dB, 0.00032%

    Frequency Response at Fs=192 kHz

    +0 dB, -0.015 dB (20 to 20 kHz)

    -0.015 dB at 10 Hz

    -0.005 dB at 20 kHz

    -0.031 dB at 40 kHz

    -0.15 dB at 80 kHz

    Frequency Response at Fs=48 kHz

    +0 dB, -0.015 dB (20 to 20 kHz)

    -0.015 dB at 10 Hz

    -0.005 dB at 20 kHz

    Crosstalk

    -137 dB at 20 Hz

    -130 dB at 1 kHz

    -116 dB at 20 kHz

    Maximum Amplitude of Jitter Induced Sidebands (10 kHz 0 dBFS test tone, 12.75 UI sinusoidal jitter at 1 kHz)

    < -144 dB

    Maximum Amplitude of Spurious Tones with 0 dBFS test signal

    < -138 dB

    Maximum Amplitude of Idle Tones

    < -147 dB

    Maximum Amplitude of AC line related Hum & Noise

    < -133 dB

    Inter-channel Differential Phase (Stereo Pair – any sample rate)

    +/- 0.25 degrees at 20 kHz

    Inter-channel Differential Phase (Between DAC3 Units Fs<110 kHz) Any sample rate.

    +/- 0.25 degrees at 20 kHz

    Maximum Lock Time after Fs change

    6 ms

    Soft Mute Ramp Up/Down Time

    9.6 ms

    Mute on Receive Error

    Yes

    Mute on Lock Error

    Yes

    Mute on Idle Channel

    No

    50/15 us De-Emphasis Enable

    Automatic in Consumer Mode

    De-Emphasis Method

    Digital IIR

    De-Emphasis Supported at

    Fs = 32, 44.1, 48 kHz



    GROUP DELAY (LATENCY)

    Delay – Digital Input to Analog Output (function of sample rate)







    1.36 ms at 44.1 kHz

    1.27 ms at 48 kHz

    0.90 ms at 88.2 kHz

    0.82 ms at 96 kHz

    0.51 ms at 176.4 kHz

    0.47 ms at 192 kHz

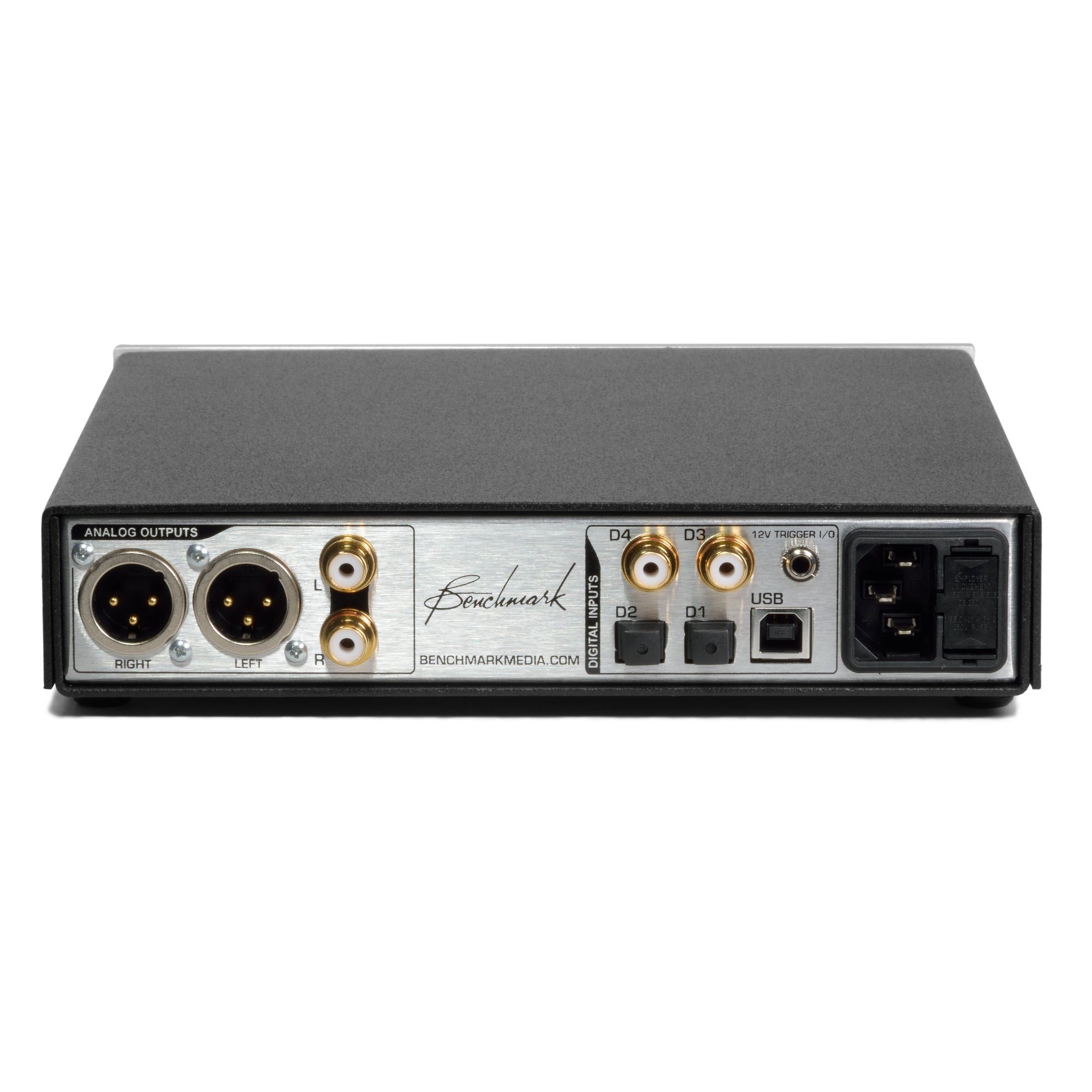

    DIGITAL AUDIO INPUTS

    Number of Digital Inputs (switch selected)

    5 (1 USB, 2 Optical, 2 Coaxial)

    Number of Channels

    2

    Input Sample Frequency Range

    28 to 210 kHz (Coaxial Inputs)

    28 to 96 kHz (Optical Inputs)

    44.1, 48, 88.2, 96, 176.4, 192 kHz (USB Input)

    Maximum Input Word Length

    24 bits

    Digital Input Impedance

    75 Ohms (Coaxial Inputs)

    DC Blocking Capacitors on Digital Inputs

    Yes (Coaxial Inputs)

    Transient and Over-Voltage Protection on Digital Inputs

    Yes (Coaxial Inputs)

    Minimum Digital Input Level

    250 mVpp (Coaxial Inputs)

    Jitter Tolerance

    (With no Measurable Change in Performance)



    >12.75 UI sine, 100 Hz to 3 kHz

    >1.5 UI sine at 20 kHz

    >1.5 UI sine at 40 kHz

    >1.5 UI sine at 80 kHz

    >1.5 UI sine at 90 kHz

    >0.25 UI sine above 160 kHz

    Jitter Attenuation Method

    Benchmark UltraLock3™ - all inputs



    BALANCED ANALOG OUTPUTS

    Number of Balanced Analog Outputs

    2

    Output Connector

    Gold-Pin Neutrik™ male XLR

    Output Impedance

    60 Ohms (Attenuator off)

    425 Ohms (Attenuator = 10 dB)

    135 Ohms (Attenuator = 20 dB)

    Analog Output Clip Point

    +30 dBu

    Factory Calibration (at 0 dBFS)

    +24 dBu (Attenuator off)

    Output Level Variation with Sample Rate (44.1 kHz vs. 96 kHz)

    < +/- 0.006 dB



    UNBALANCED ANALOG OUTPUTS

    Number of Unbalanced Analog Outputs

    2

    Output Connector

    RCA

    Output Impedance

    30 Ohms

    Analog Output Clip Point

    +13.5 dBu (3.7 Vrms)

    Factory Calibration (at 0 dBFS)

    +8.2 dBu (2 Vrms)

    Output Level Variation with Sample Rate

    < +/- 0.006 dB



    STATUS DISPLAY

    Indicators - Type and Location

    12 LED’s on Front Panel

    Selection/Status Indication

    1 – Control Lock

    5 – Input

    2 – Word length

    4 – Sample Rate





    AC POWER REQUIREMENTS

    Nominal Input Operating Voltage Range (VAC RMS)

    100 – 240V

    Frequency

    50-60 Hz

    Power

    < 0.5 Watts Idle
    12 Watts Typical Program
    13 Watts Maximum

    Fuses

    5 x 20 mm (2 required)
    0.5 A 250 V Slo-Blo® Type

    Min/Max Operating range (VAC RMS)

    90 – 260 VAC
    47 – 63 Hz



    DIMENSIONS

    Form Factor

    ½ Rack Wide, 1 RU High

    Depth behind front panel

    8.5” (216 mm)

    Overall depth including connectors but without power cord

    9.33” (237 mm)

    Width

    9.5” (249 mm)

    Height

    1.725” (44.5 mm)



    WEIGHT

    DAC3 only

    3 lb.

    DAC3 with remote control, power cord, extra fuses, and manual

    4 lb.

    Shipping weight

    7 lb.

    IMPORTANT FEATURES

    • Sample Rate Display
    • Word Length Display
    • 5 Digital Inputs
    • 2 Stereo Analog Outputs (1 RCA, 1 XLR)
    • Digital Pass Through
    • Native DSD Conversion
    • Control-lock Switch
    • Asynchronous USB 2.0
    • Driverless Asynchronous USB 1.1
    • Bi-Directional 12 Volt Trigger
    • Power Switch
    • Low Power Consumption
    • ES9028PRO Converter

    MANUAL

    Detailed specifications and performance plots are available in the downloadable manual.

    DAC3 B Manual


DESIGNED, ASSEMBLED, AND TESTED IN THE USA

This Benchmark product was designed, assembled, and tested in the USA using USA and imported components. Most major components are made in USA.
