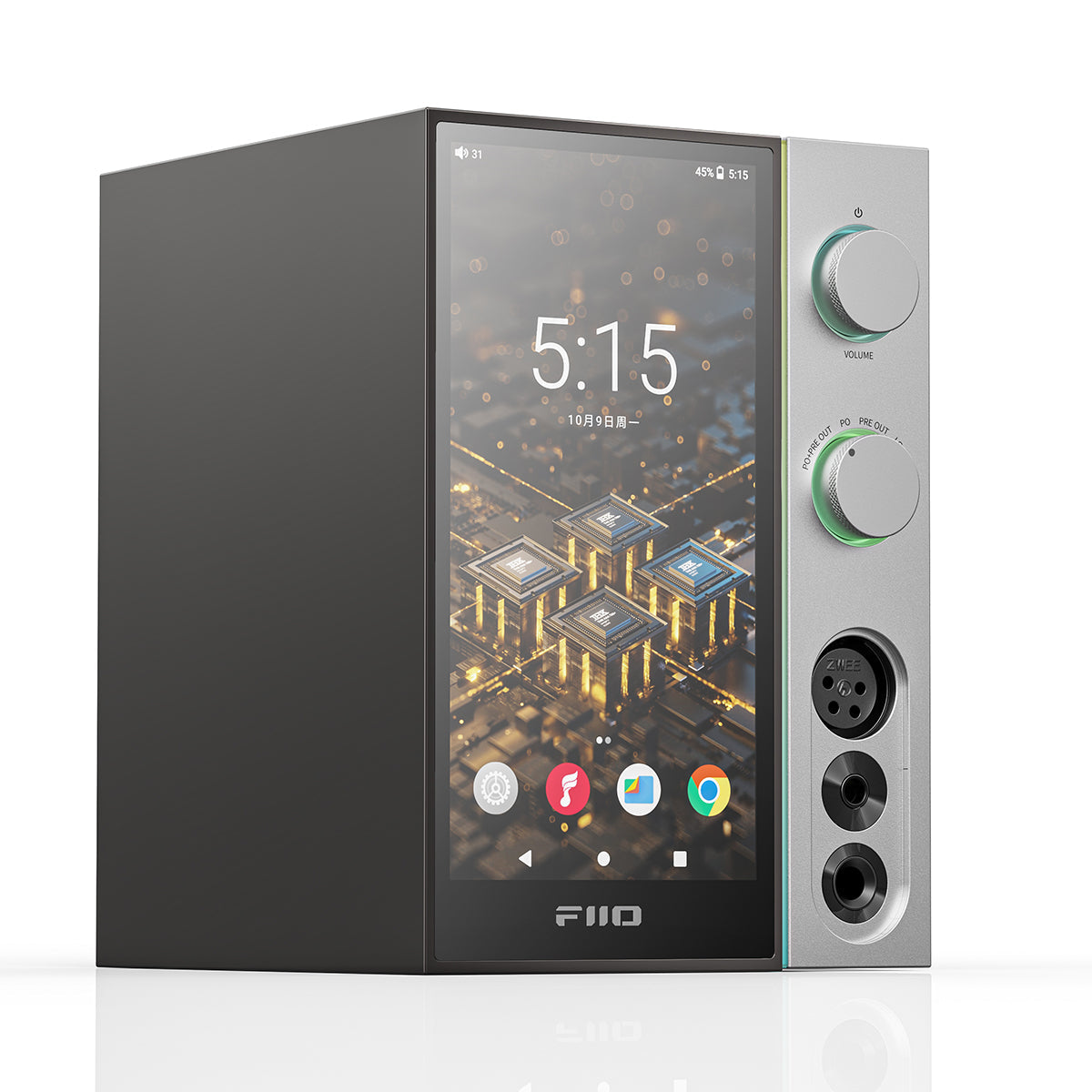

Fiio R9 Desktop Streaming Music Player streaming player, hero product shot

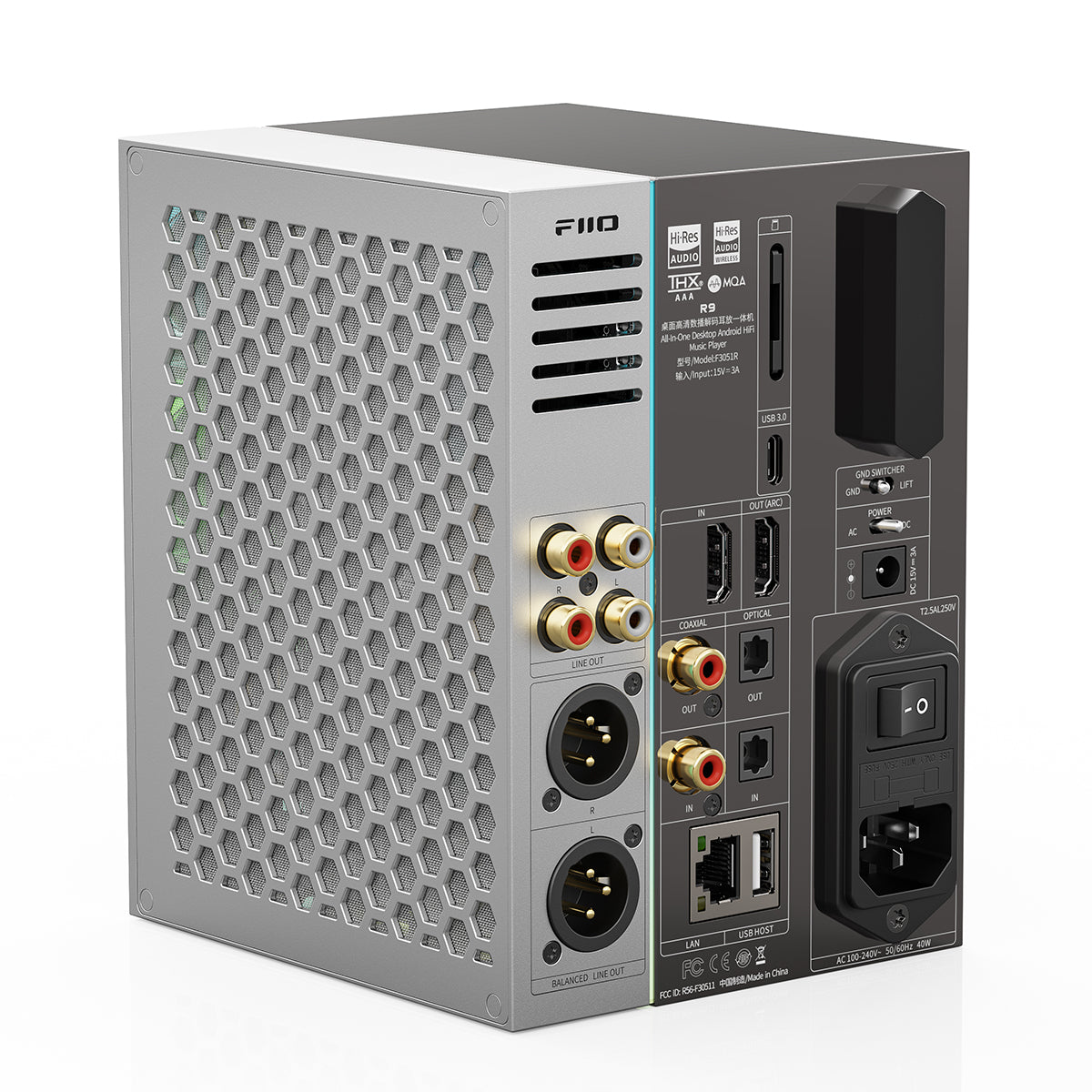

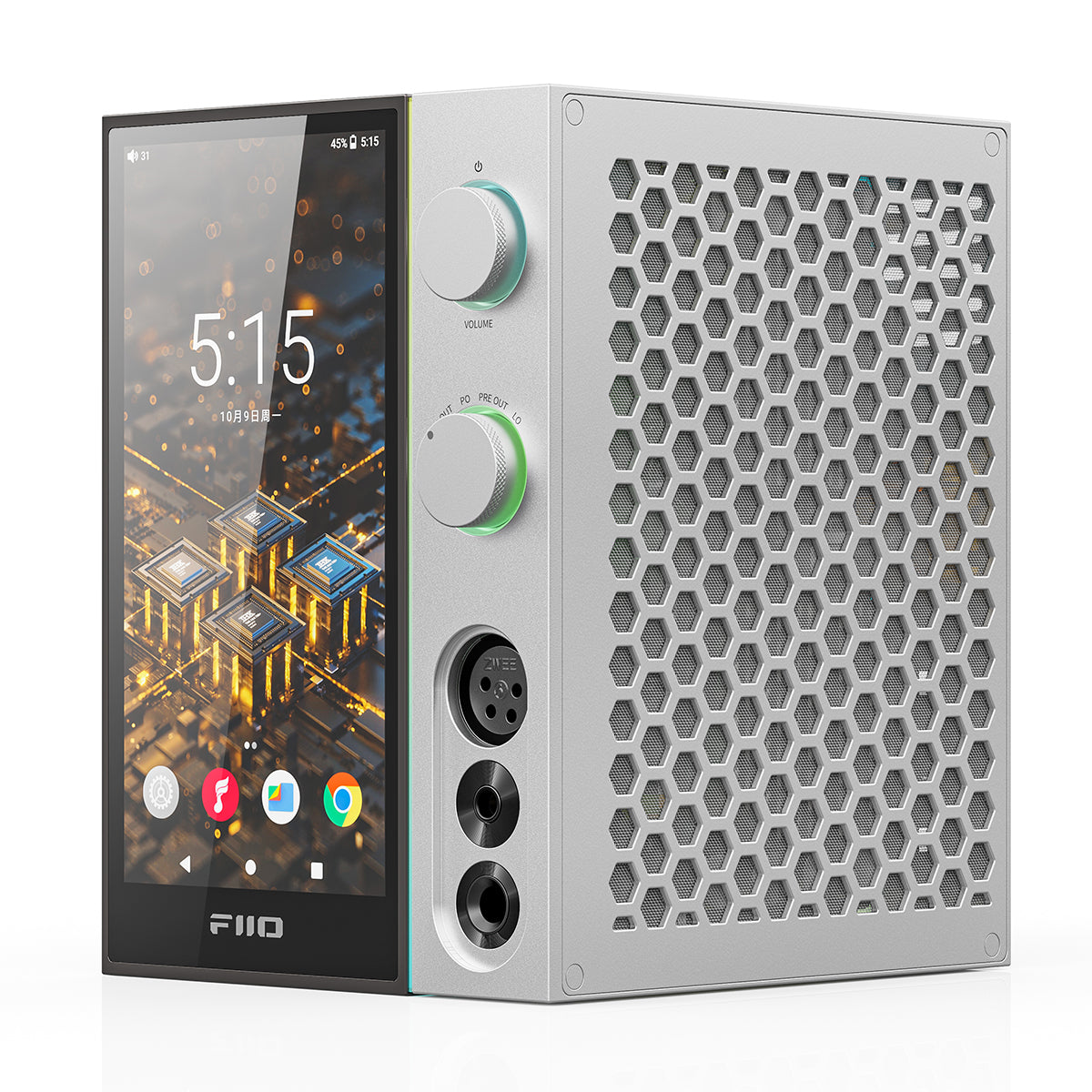

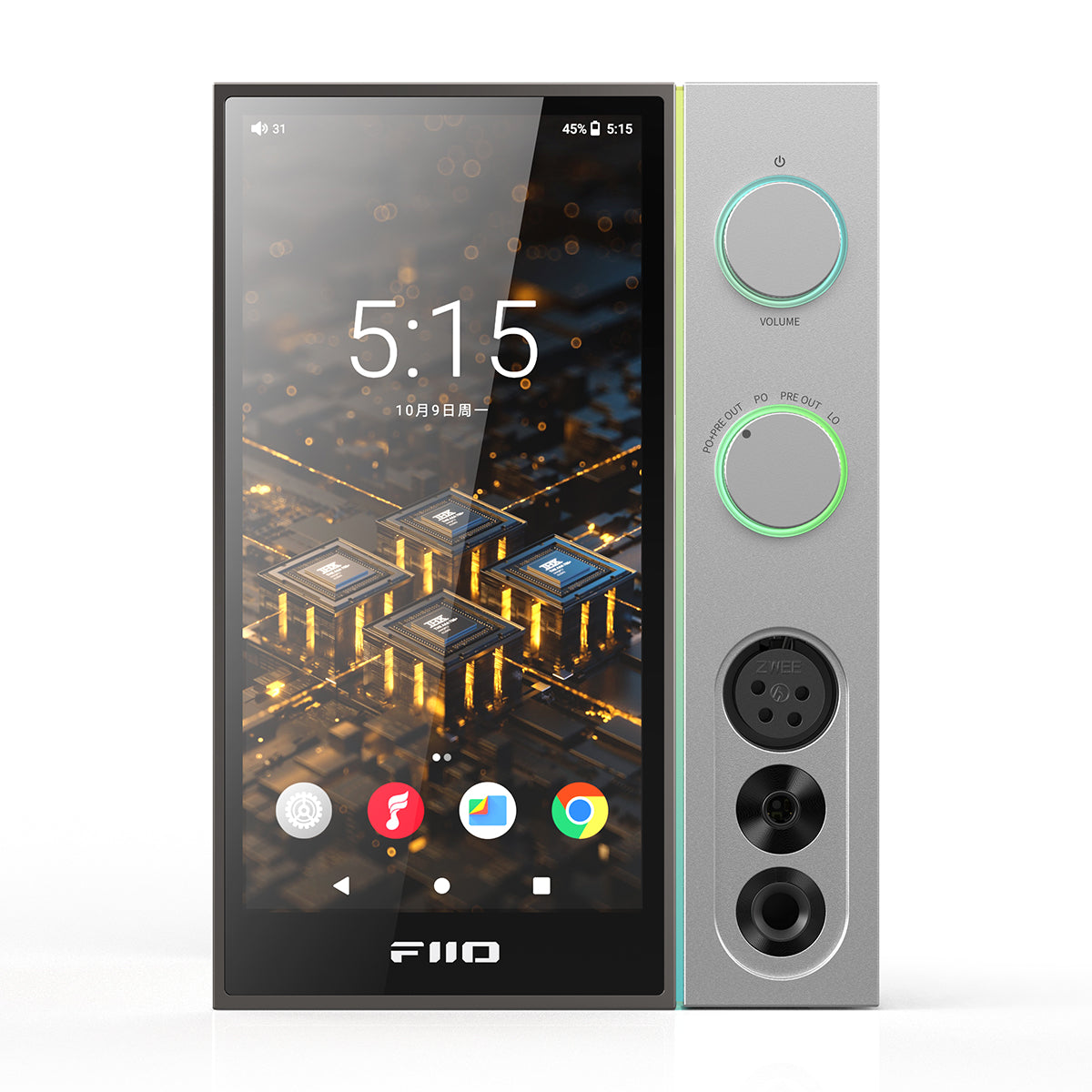

Fiio R9 Desktop Streaming Music Player streaming player, additional product view
Fiio R9 Desktop Streaming Music Player streaming player, additional product view
Fiio R9 Desktop Streaming Music Player streaming player, additional product view
Fiio

Fiio R9 Desktop Streaming Music Player

Sale price$1,649.99

The Fiio R9 is the flagship expression of FiiO's all in one desktop concept: dual ESS ES9038PRO DACs, eight channels of THX AAA 788+ amplification, and a 6 inch bezel free Android touchscreen in a sculpted two tone chassis. It streams, decodes, drives the hardest headphones, preamps into a speaker system, and even anchors a TV setup through HDMI ARC.

Type and Technology

The dual ES9038PRO DACs run fully differential into an eight channel THX AAA 788+ amplifier delivering up to 7300mW per channel balanced at 32 ohms. A 16 core XMOS XU316 handles USB decoding up to 768kHz/32 bit and native DSD512, and ten work modes cover Android, Pure Music, USB DAC, Bluetooth receive, AirPlay, coaxial, optical, HDMI IN, HDMI ARC, and Roon Ready operation. The Snapdragon platform ships with Android 10 and Google Play, with an Android 12 upgrade available from FiiO.

Sound Character

The R9 is highly transparent and resolving, with crystalline clarity, wide dynamic range, and headroom that feels endless even with planar and high impedance headphones. Tonality is essentially neutral, neither warm nor clinical, with a slight sense of low end presence, and the THX modules pass the DAC stage's character through unchanged.

Build and Features

Headphone outputs include 6.35mm single ended, 4.4mm balanced, and 4 pin XLR; line outputs cover RCA (2.4Vrms) and XLR3 balanced (4.8Vrms) with a preamp mode. Digital connectivity spans USB C 3.0, USB A for drives, coaxial, optical, HDMI IN, HDMI ARC, HDMI OUT, Ethernet, dual band WiFi, and Bluetooth with aptX Adaptive reception. Power comes from an internal AC supply or an external 15V DC input, with a ground lift switch for stubborn hum. An L shaped RGB light strip and illuminated knob rings signal format and sample rate, a Bluetooth remote is included, and the chassis weighs about 2.27kg.

Best For

A single flagship box for desk and living room alike. If you need less power on a smaller budget, the Fiio R7 Desktop Streaming Music Player keeps most of the formula; see our full range of streaming components and Fiio gear.

What's in the Box

  • Fiio R9 unit
  • Bluetooth remote control
  • Power cord and USB data cable
  • Flat base and angled base
  • microSD card holder
  • 6.35mm adapter
  • Quick start guide and warranty card

Specifications

Specification Value
DAC Dual ESS ES9038PRO, fully differential
Headphone amp THX AAA 788+, eight channel configuration
Platform Snapdragon 660, Android 10 (Android 12 upgrade available), XMOS XU316 USB
Display 6 inch touchscreen, 1080 x 2160
Headphone outputs 6.35mm single ended, 4.4mm balanced, 4 pin XLR balanced
Output power Balanced 7300mW x2 at 32 ohms, 1000mW x2 at 300 ohms; single ended 2100mW x2 at 32 ohms
Analog outputs RCA line out (2.4Vrms), XLR3 balanced line out (4.8Vrms), preamp mode
Digital connections USB C 3.0, USB A, coaxial and optical, HDMI IN, HDMI ARC, HDMI OUT, Ethernet, dual band WiFi, Bluetooth
Decoding USB DAC 768kHz/32 bit, native DSD512; local playback 384kHz/32 bit, DSD256; MQA
Streaming Roon Ready, AirPlay, DLNA, all Android apps
Gain levels Low, Medium, High, Super High, Ultra High
Bluetooth codecs TX LDAC, LHDC, aptX HD; RX aptX Adaptive, aptX LL, LDAC, AAC
Power supply Internal AC 100 to 240V or external DC 15V, ground lift switch
Dimensions About 160 x 115 x 127mm
Weight About 2271g
Color Two tone black and silver
