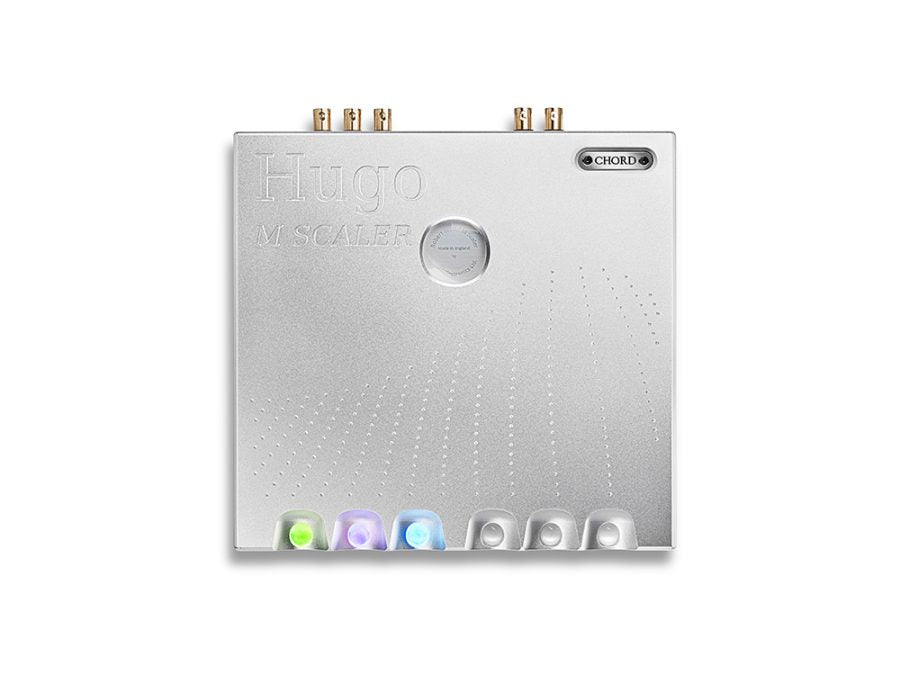

Chord Hugo M Scaler
Chord Hugo M Scaler
The Hugo M Scaler is a highly advanced standalone upscaler capable of redefining sound quality from digital audio. It uses Rob Watts’ (our Digital Design Consultant’s) unique filter technology, the most advanced in the world, to upscale standard 44.1kHz digital audio up to 705.6kHz (16x CD’s 44.1kHz native resolution), ready to be passed to a suitable DAC; Hugo M Scaler extends its upscaling performance to 768kHz (from 96kHz input data) for our dual-BNC-input DACs: Qutest, Hugo 2, Hugo TT 2 and DAVE.
The Hugo M Scaler brings the unrivalled advantages of our ground-breaking FPGA-based WTA (Watts Transient Alignment) filtering technology to digitally connected audio devices, dramatically improving sound quality. Although optimised for use with selected Chord Electronics DACs (for the maximum 768kHz upscaling/decoding benefit), the Hugo M Scaler can be used with other DACs with suitable inputs, subject to their decoding capability.

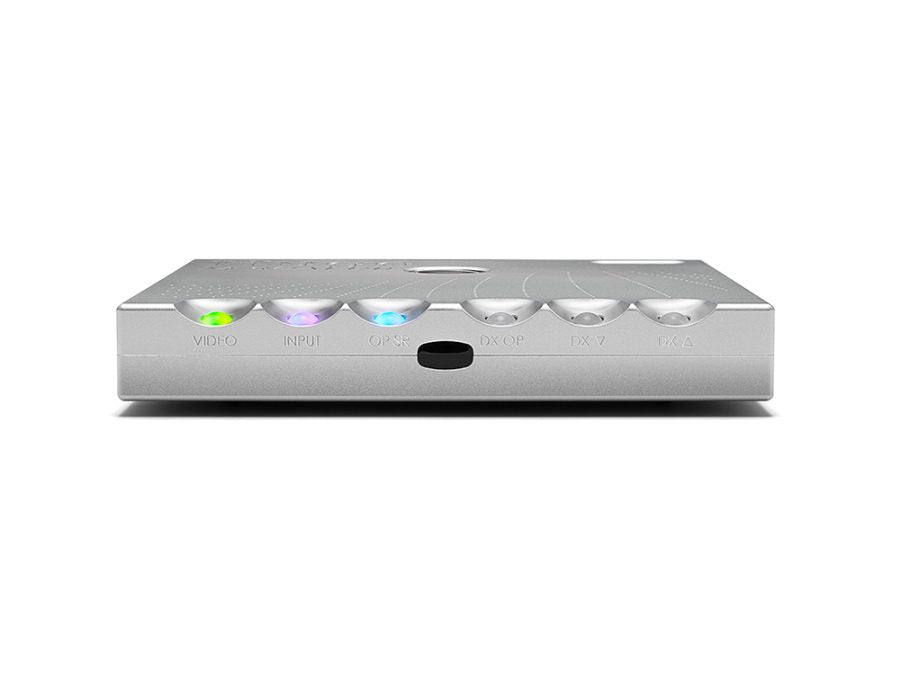

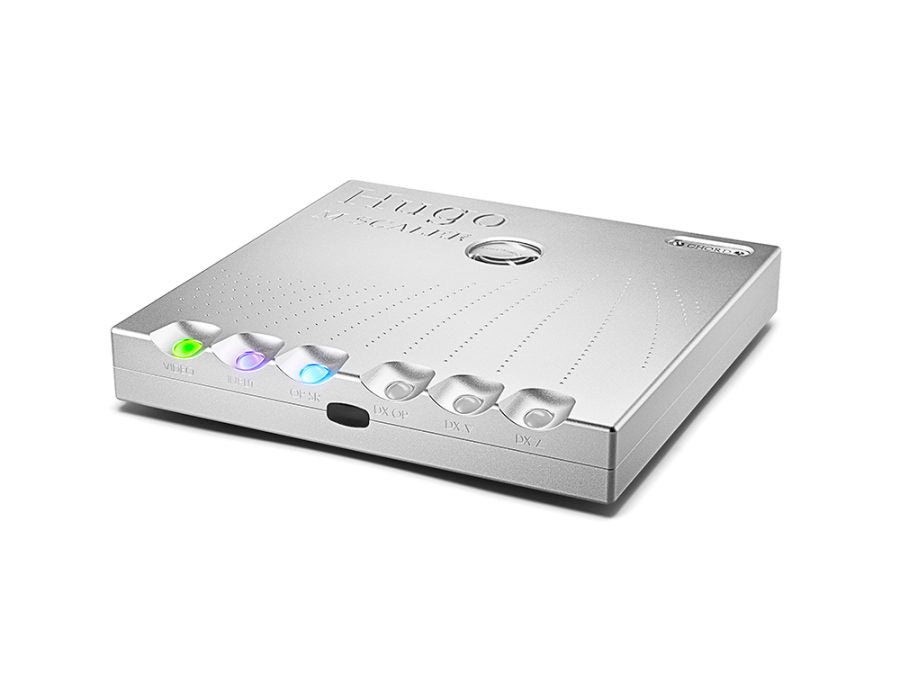

The Hugo M Scaler’s compact form factor aligns with the TT (Table Top) series and has been designed to be stackable with other units in the range, including the TToby stereo power amp and the Hugo TT 2, to form a highly advanced yet space-saving system. In line with other models in the Hugo and Hugo TT series, the device features a number of illuminable fascia-mounted spherical controls, governing input selection, output sample rate and video mode for lower latency. The control spheres display data visually including input source and the incoming sample rate, using a polychromatic scale.
When partnered with either of Chord Electronics’ 768kHz-capable dual-BNC-input DACs, the Hugo M Scaler sets an astonishing technical benchmark for digital audio performance at it price point, redefining sound quality from digital audio.
Features
Tap-length filter: 1,015,808 (16FS filter)

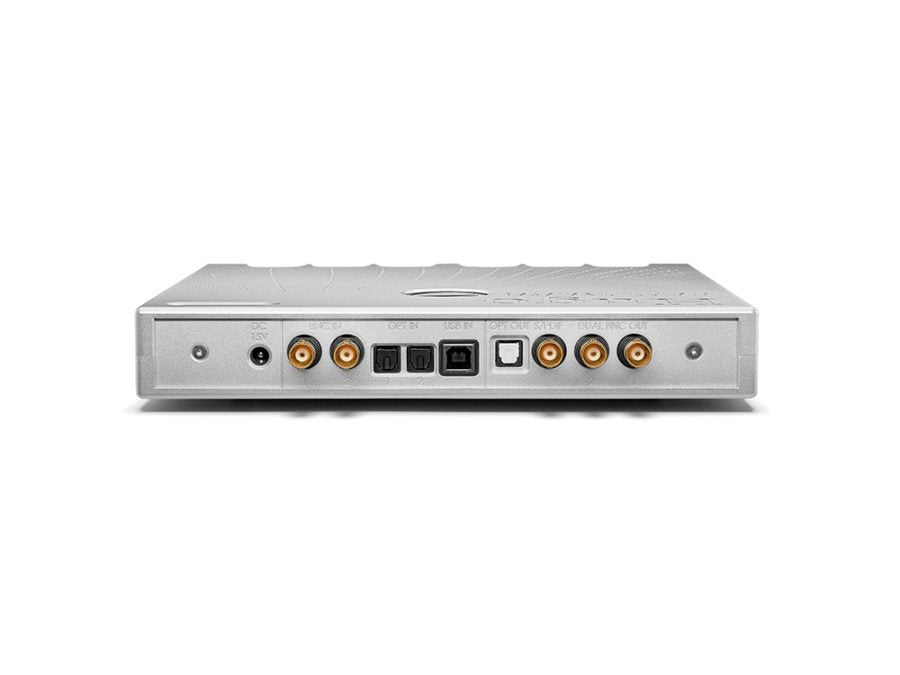

Connectivity (input): 1x Galvanically isolated Type-B USB, 2x Coax BNC and 2x Optical
Connectivity (output): 1x Galvanically isolated dual BNC (enables upscaling to the maximum 768kHz), 1x BNC S/PDIF and 1x Optical
PCM support: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 717.6kHz, and 768kHz. 16 – 32bit
Driver support: Driverless with Mac OS X and Linux, driver required for Windows OS
Additional features:
The most advanced digital filter in the world
Adjustable sample rate output (with pass-thru mode)
Video mode (for lower latency)
Auto video and source selection
‘DX’ controls for a future product design
Specifications
FPGA:
Xilinx XC7A200T
Filter tap length:
1,015,808 WTA taps
Dimensions:
4cm (H) 23.5cm (W) 23.8cm (D)
Weight:
2.55kg
