Bundle Set SR-L700MKII + SRM-700S / SRM-700T

Sale price$4,599.00
5.0

Style: SR-L700 MKII + SRM 700S

Bundle Set SR-L700MKII + SRM-700S or SRM-700T

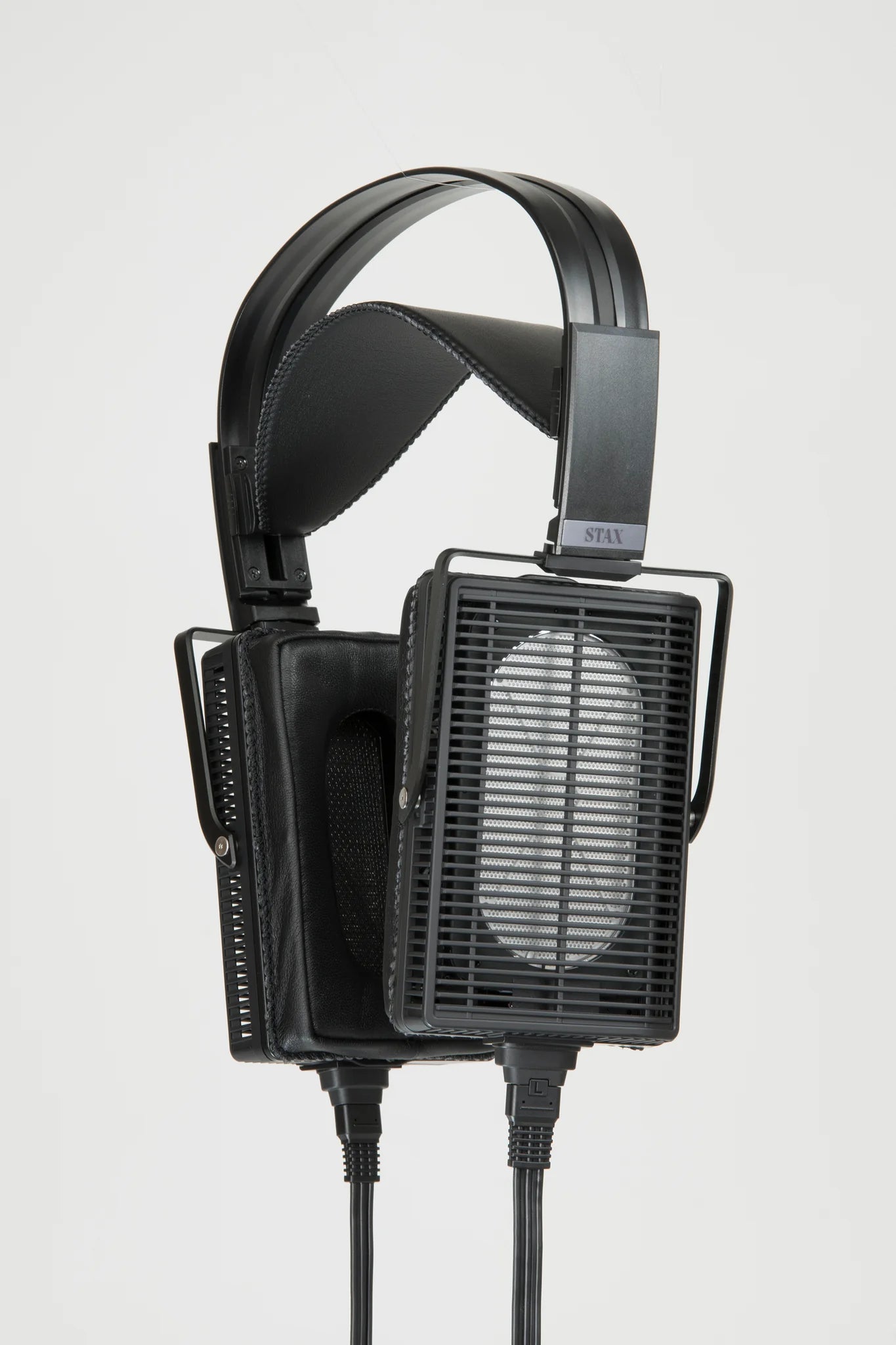

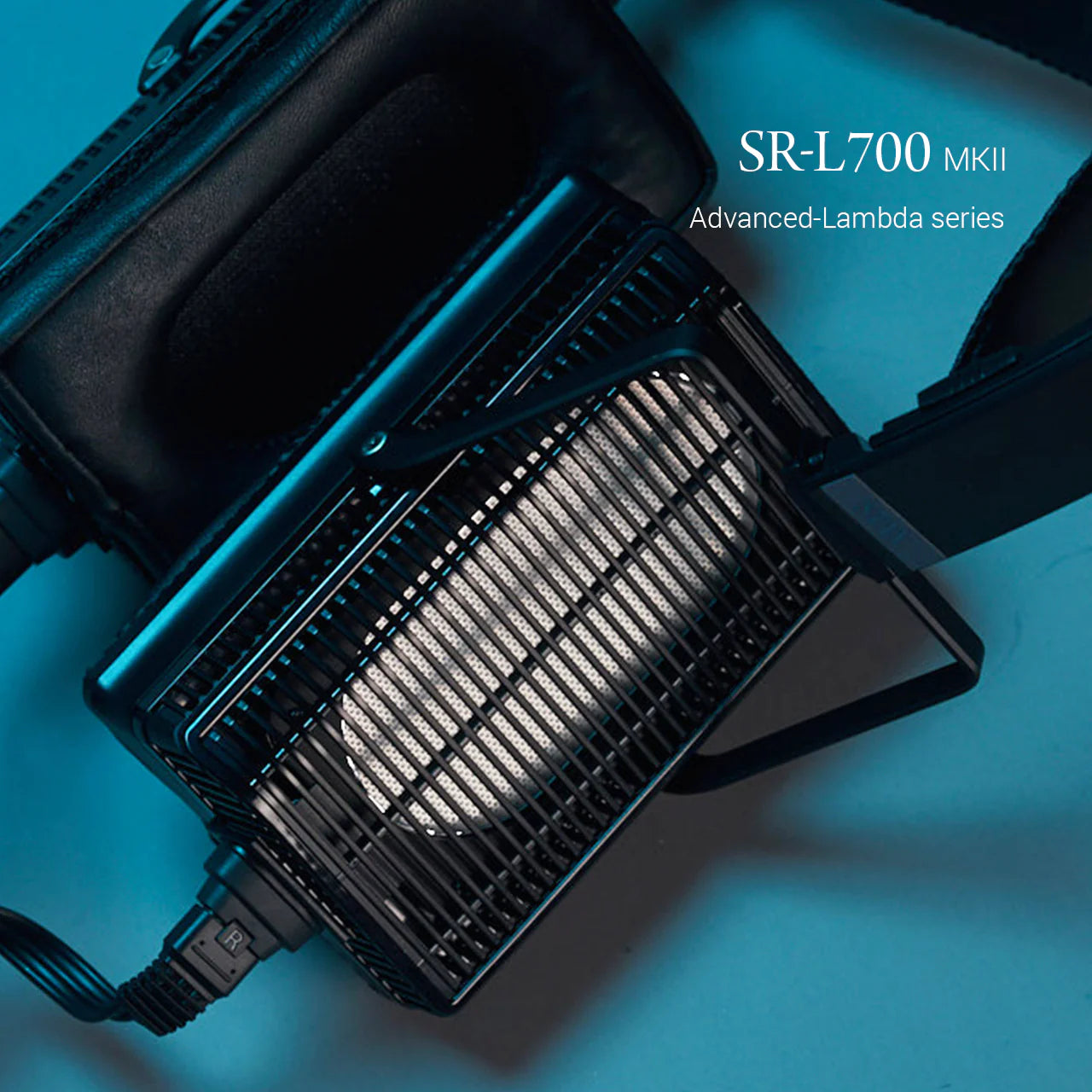

SR-L700MK2 (Earspeakers)

Specifications

  • Fixed electrode: MLER (Multi Layer Electrodes)
  • Attached cable conductor: 6N(99.9999%)OFC + silver plated annealed copper wire
  • Ear pad: genuine sheep leather (skin touching portion), artificial leather (surrounding portion)
  • Weight: 371g、508g (including cable)
  • Type: push-pull electrostatic sound element, open-air type enclosure

  • Sound element shape: oval
  • Frequency response: 7 - 41,000Hz
  • Electrostatic capacitance: 110pF
  • Impedance: 145k Ω
  • Sound pressure sensitivity: 101dB
  • Bias voltage: 580V DC
  • Cable: parallel 6-strand, low-capacity wide cable
  • Cable length: 2.5m full length

    SRM-700S (Semiconductor Driver Unit)

    Specifications

    • Type: All-stage FET configuration DC amplification driver unit
    • Frequency response: DC - 100kHz (with one SR-009S)
    • Gain: 60dB
    • Harmonic distortion: 0.01% or less (1kHz/100Vrms output)
    • Input impedance: 50kΩ (RCA), 50kΩx 2 (XLR)
    • Maximum output voltage: 450Vrms (1kHz)
    • Bias voltage: PRO 580V
    • Operating temperature / humidity: 0 to 35 degrees C / less than 90% (non condensing)
    • Input terminal: RCA x 1, XLR x 1
    • Output: RCA parallel output terminal
    • Power consumption: 46W
    • Dimension: 240W x 103H x 393D mm (maximum protruding portion included)
    • Weight: 6.3kg

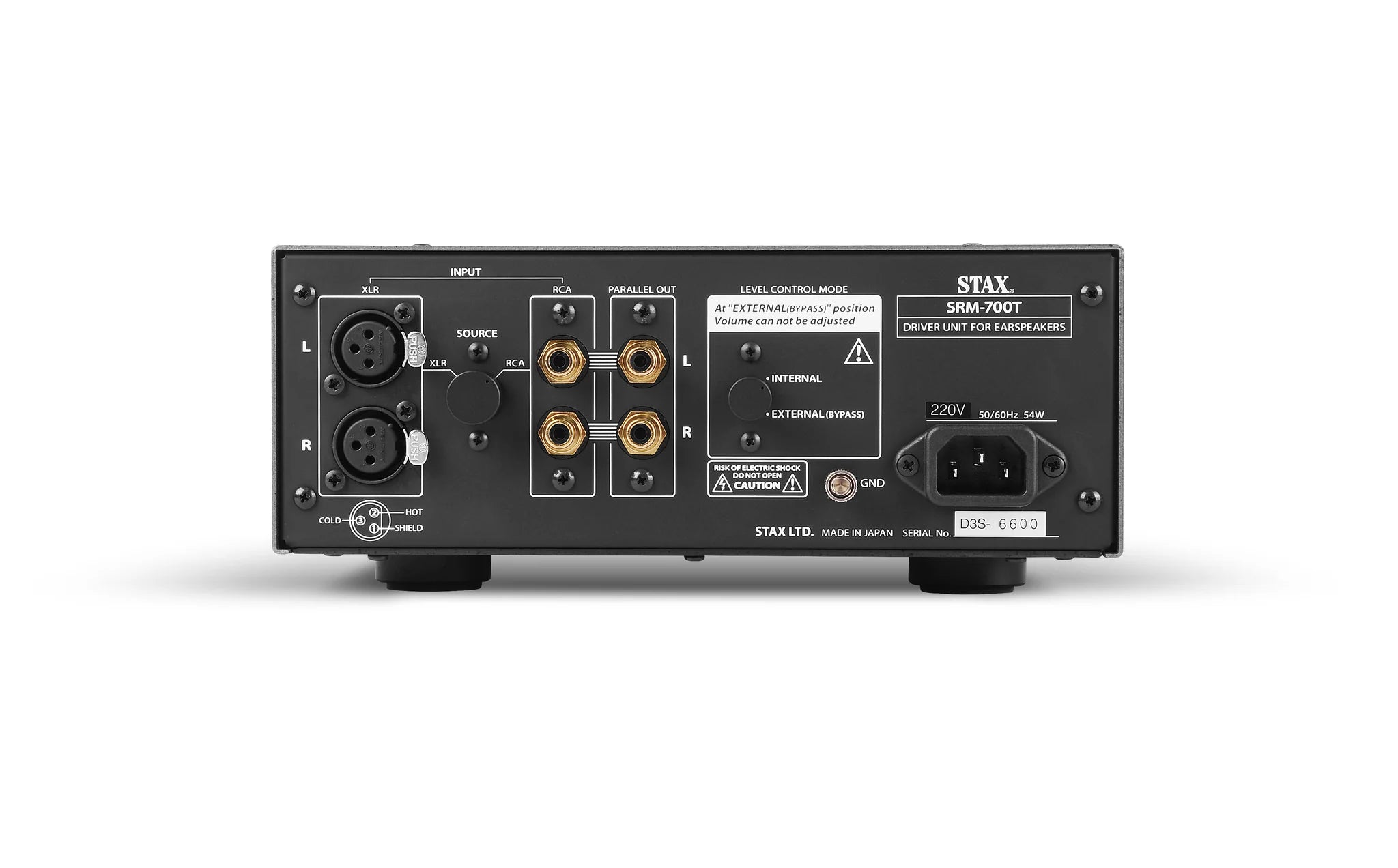

     SRM-700T (Vacuum Tube Driver Unit)

    • Type: FET input + vacuum tube output hybrid DC amplification driver unit
    • Vacuum tube: 6SN7
    • Maximum output voltage: 340Vrms (1kHz)
    • Power consumption: 54W
    • Dimension: 240W x 103H x 393D mm (maximum protruding portion included)
    • Weight: 5.7kg
