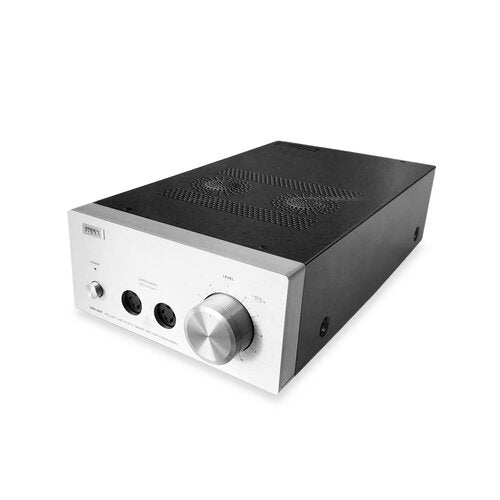

STAX SRM-500T

Sale price$1,499.00

STAX SRM-500T

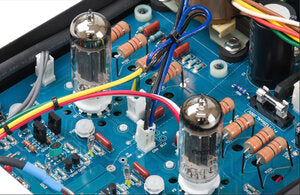

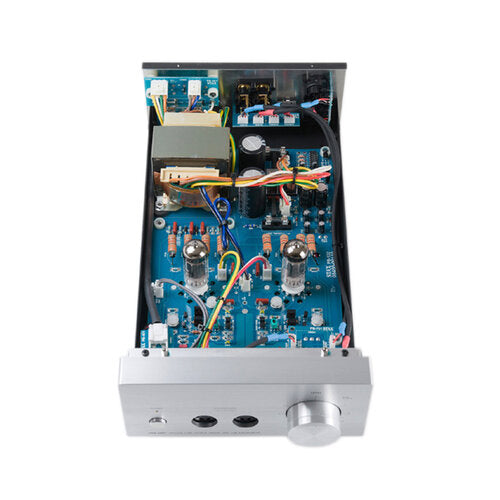

Stax introduces a new model SRM-500T to replace its successor of SRM-006tS. The SRM-500T utilizes a pair of 6FQ7/6CG7 vacuum tubes as the output, driven by custom-made low noise dual FET. Stax pride itself in offering a great value electrostatic driver at the best possible performance.

The newly designed power transformer enables power efficiency. As a result, it achieves an improved sound quality than the conventional vacuum tube output driver unit found in SRM-006tS.


Specification

  • Type: FET input + vacuum tube output hybrid DC amplification driver unit

  • Vacuum tube: 6FQ7/6CG7

  • Frequency response: DC - 90kHz (with one SR-L500 MK2)

  • Gain: 60dB

  • Harmonic distortion: 0.01% or less (1kHz/100Vrms output)

  • Input impedance: 50kΩ (RCA), 50kΩx 2 (XLR)

  • Maximum output voltage: 300Vrms (1kHz)

  • Bias voltage: DC 580V

  • Operating temperature / humidity: 0 to 35 degrees C / less than 90% (non condensing)

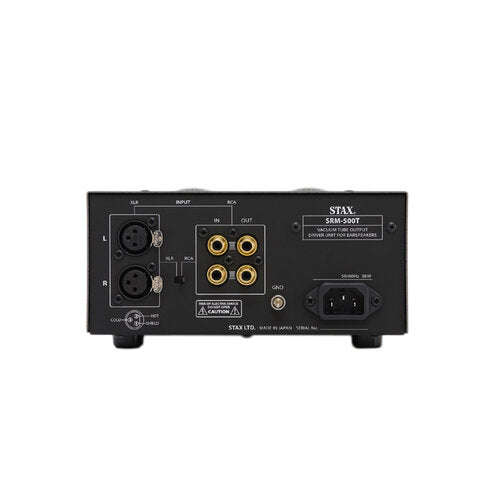

  • Input terminal: RCA x 1, XLR x 1(mutual exclusion input)

  • Output: RCA parallel output

  • Power consumption: 38W

  • Dimension: 195 (W) x 102 (H) x 376 (D) mm (maximum protruding portion included)

  • Weight: 3.4kg
