Rockna Audio Wavedream Reference Signature

Rockna Wavedream Reference Signature: Ultimate Reference-Grade DAC / Network Renderer

Transcend Reality. Experience music as it was meant to be heard.

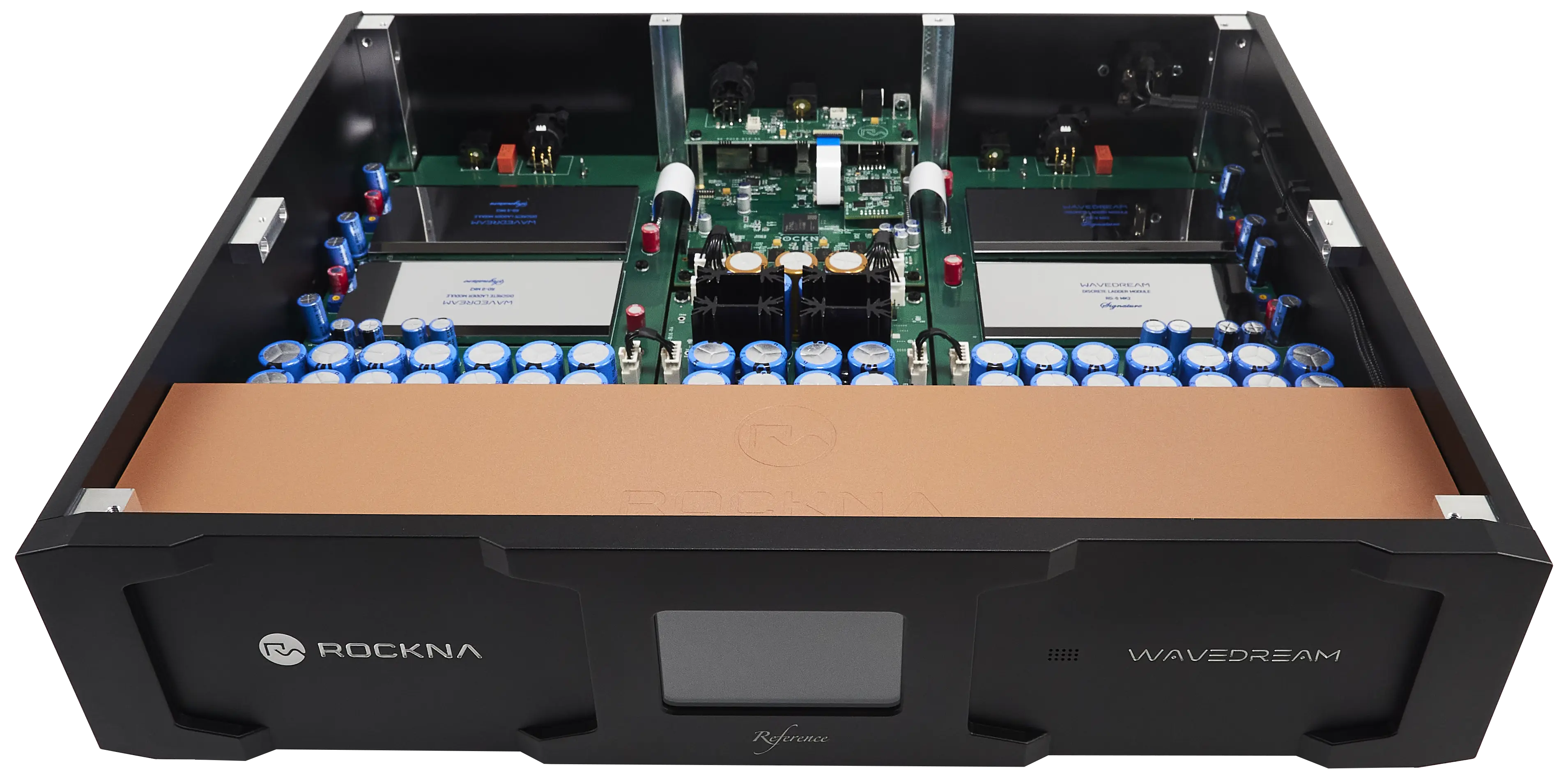

The Wavedream Reference Signature is a statement of sonic evolution and a step forward in DAC and streaming audio design. Building on a decade of innovation, this flagship DAC / network audio renderer from Rockna Audio discards off-the-shelf parts in favor of fully proprietary hardware and software. Nothing is left to compromise: from FPGA-driven discrete conversion to ultra-clean power, from analog elegance to digital precision. The result: a DAC capable of revealing every nuance, every microdetail, every breath in the recording.

What Makes It Exceptional

• Fully discrete R-2R FPGA-driven conversion — Four RD-0 MK2 R-2R DAC modules, each managed by its own 28-bit FPGA, deliver unmatched resolution and natural musicality.

• ASRC-free, Digital-PLL clock architecture — The proprietary clock system eliminates jitter and timing artifacts, giving audio a lifelike pace, flow and 3D‐like soundstage.

• Discrete analog output stage, Class-A design — A purely discrete analog output section using JFET and bipolar devices ensures maximal transparency, extremely low noise, and organic tonality.

• Ultra-low-noise, high-capacitance power supply — Over 90,000 µF capacitance, multiple regulation stages, copper-shielded toroid transformers and carefully controlled supply paths for maximum power stability and minimal interference.

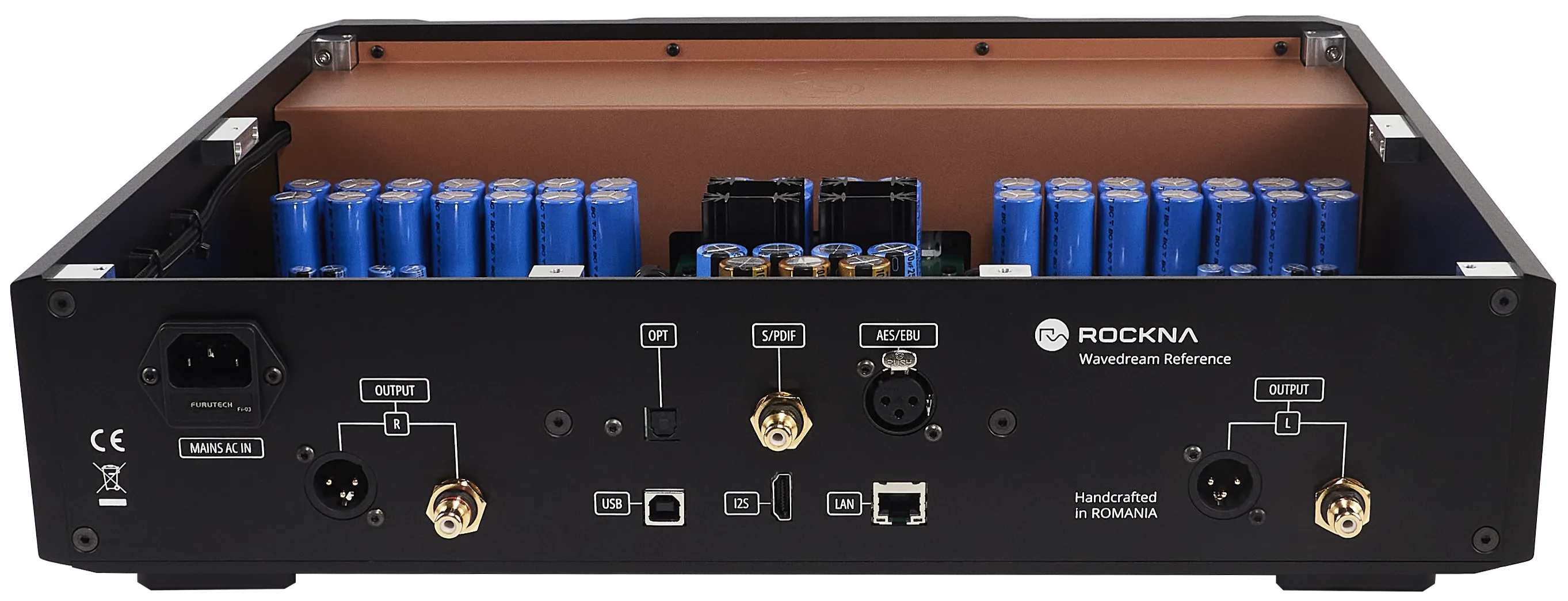

• Extensive format & connectivity support — LAN, USB, I2S, S/PDIF, AES/EBU, Toslink inputs; RCA and balanced XLR outputs. Supports PCM up to 768 kHz, DSD up to DSD512. Built-in network renderer with support for Roon Bridge, UPnP, OpenHome, AirPlay, HQPlayer NAA, Spotify Connect.

• Realtime DSP & filter options — Internally FPGA up-samples to 16× and converts at 768 kHz / 705.6 kHz, using a highly-optimized Parks-McClellan up-sampling filter, with selectable linear, minimum or hybrid-phase filter types for tone shaping.

• Elegant build quality & user experience — Full aluminum chassis (matte black or matte silver), 10 kg build, front-panel touchscreen + metal IR remote + iOS/Android control apps, firmware updates over the air.

 Who It’s For

The Wavedream Reference Signature is built for the audiophile who demands absolute fidelity from streaming high-resolution digital library, DSD files, or hooking up traditional sources. It’s ideal as a reference DAC in a premium 2-channel system, paired with high-end amps and speakers. If you’re chasing maximum detail retrieval, natural dynamics, rich soundstage and minimal digital artefacts, this is a DAC designed to unlock them.

 Technical Specifications – Signature Edition

 Why Buy from Mimic-Audio.com

• Authorized reseller of Rockna products — guaranteed genuine unit and full warranty support.

• Personalized setup advice and support for integrating the Wavedream with your system (USB vs I²S vs LAN, balanced vs RCA, filter & clock settings).
