RAAL 1995 Magna



Magna is not a watered-down version of Immanis, offering unmatched authenticity in timbre, scale, and proportionality for mid-size and smaller ensembles.

Whether it's string quartets, piano trios, singer/songwriter, or classic jazz and blues, Magna will deliver crystal clear audio and powerful bass when needed. Despite its feather-light design, Magna is comfortable enough for all-day listening, truly excelling in audio quality.



Superior Craftsmanship

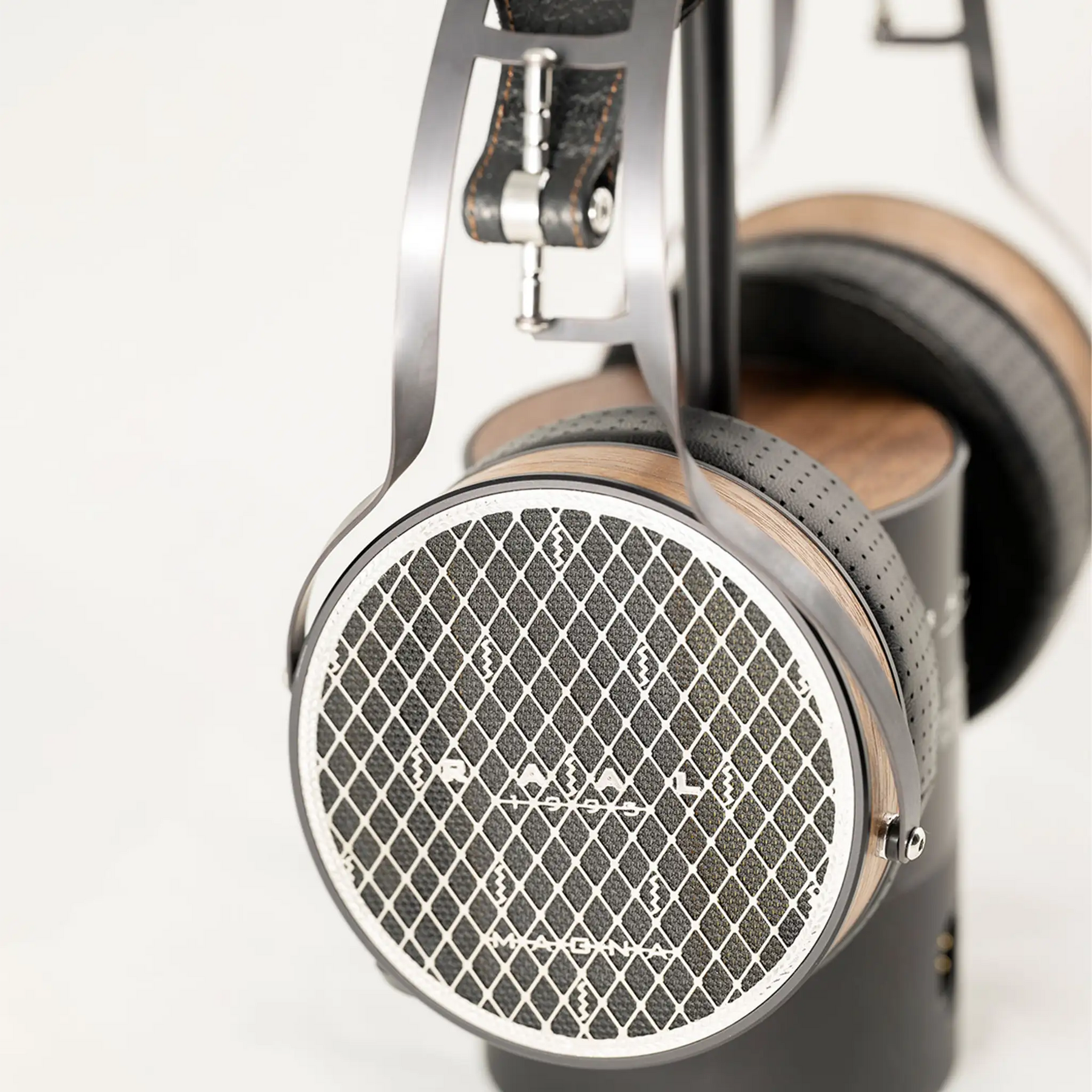

The Raal 1995 Magna (R² dual true-ribbon driver) has a weight of 530g and features a 10 cm fiberglass-aluminum composite with a hard-waxed American walnut veneer and an anodized finish. The rear grille is constructed of etched 3-phase stainless steel, while the bracket is made of titanium aluminum nitride and brushed stainless steel. Additionally, the headband is padded with non-slip suede and has a five-position grid for width adjustment.

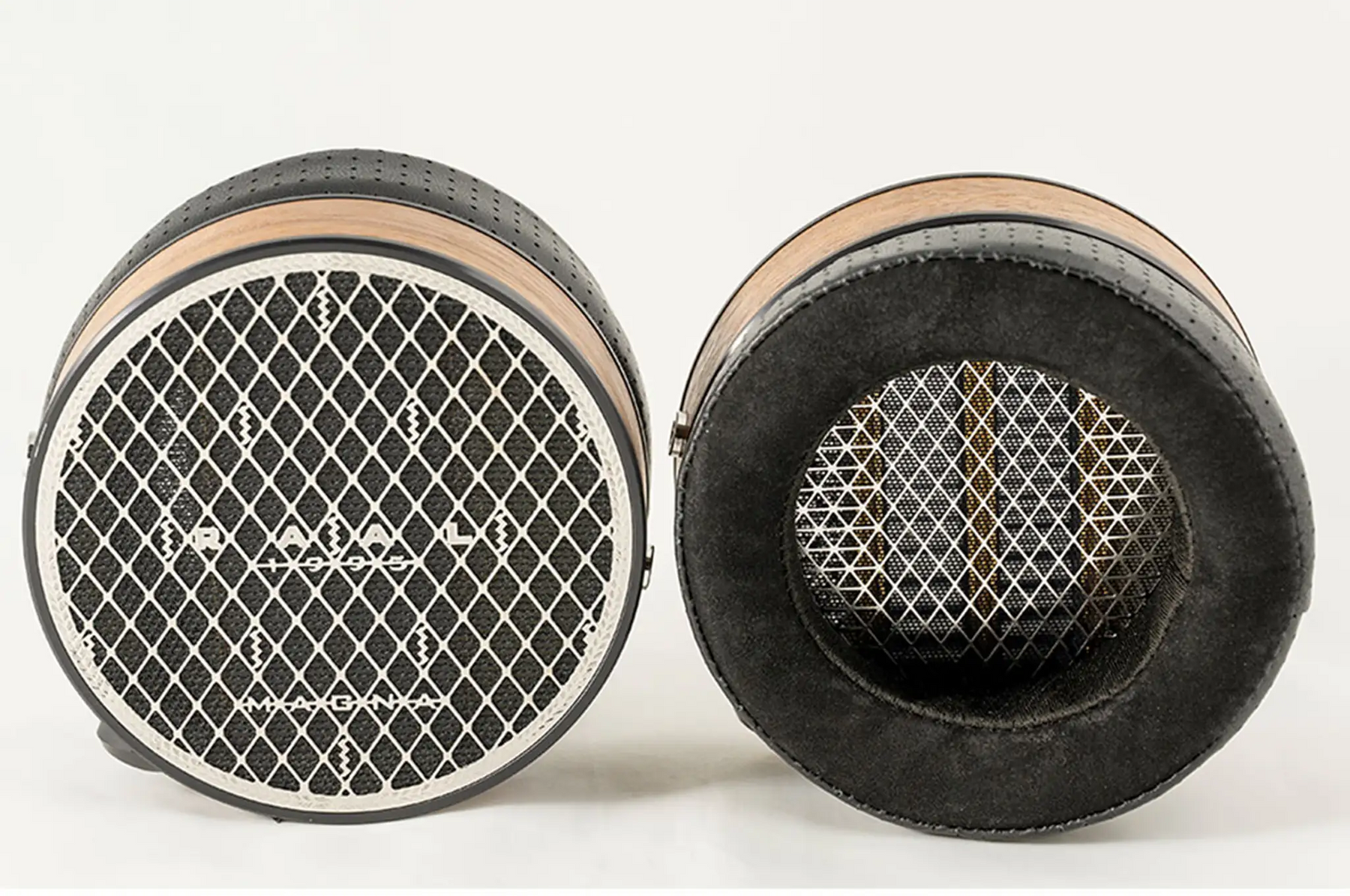

The Raal 1995 Magna (R² dual true-ribbon driver) features ear pads made of memory foam, lamb suede, and perforated leather to provide a luxurious and comfortable listening experience. The round ear pad opening is designed to accommodate larger ears, ensuring long-lasting comfort for the listener. With standard 3.5 mm TRRS sockets, the headphones have wide compatibility with various high-end cables and audio sources.

The Magna's twin ribbons are crafted from corrugated aluminum and are coated with "Silent Metal," resulting in a combined surface area of 16.8 cm². With a potential excursion of ±4 mm, maximum sound pressure level of 115 dB, and an impedance of 0.038Ω (0.27Ω for the 1.8 m long S2 headphone cable with XLR4 socket), this product is an expertly designed true-ribbon driver.

MOTOR Specifications

Configuration

Complimentary Tuned Dual Ribbon

Ribbon Type

Corrugated Pure Aluminum (True-Ribbon) with Viscodamp™ “Silent Metal” Viscosity Dampening

Surface Area

16.8 cm² (2.6 in²)

Excursion

+/- 4mm (0.157 in)

Maximum SPL

115dB

Impedance

0.038Ω

Impediance with Specialized HP Cable

0.27Ω

Note: Cable Connector

Female XLR 4-pin. Gender not compatible with Standard Amplifier Output Connector. Due to pin-out arrangement and 0.3 Ohm load, do not make adapters and plug it directly to Amplifiers, as that will destroy both the Amp and the Headphones. Connect only to RCDI-32, RCDI-8, RCDI-Viva or to specialized Direct-Drive Amplifiers for RAAL Headphones (HSA-1a/b/c, VM-1a, Jotunheim R, Woo Audio WA-33 gen 2).

Ribbon Current-Drive Interface (RCDI-32, RCDI-8) Specifications

Purpose

Converts low impedance of Headphones + Cable (0.27Ω) to impedance usable to Amplifiers (32Ω and 8Ω)

Configuration

Toroidal Transformer + Specialized Headphone Cable (SC2, S2 Satis, STAR-8, STAR-8 MkII)

Drive Type

Converts Voltage-Drive from Amplifier to Current-Drive for Ribbon

Supported Amplifier Type

Voltage-Drive amplifiers with low Internal Output Impedance and DC-offset less than 10mV

Impedance that loads the Amplifier

32Ω Nominal (8Ω & Viva by special order)

Recommended Amp Power, RCDI-32

Headphone Amp of 2-6W or Loudspeaker Amp of 8-25W at 8Ω

Recommended Amp Power, RCDI-8

Loudspeaker Amp of 2-6W at 8Ω (SET or similar low-power Amps for Loudspeakers)

Headphone Body Specifications

Body Material

Glass Fiber Composite, Aluminium

Finish

Anodizing, Hard Wax on American Walnut Veneer

Grille

3-phase Etched Stainless Steel

Headspring

Brushed Stainless Steel with TIAlN (Titanium Aluminium Nitride) Hard Coating
Polished Stainless Steel by Special Request

Headband

Soft Cushion Band, underside in Suede

Height Adjustment

5-Position Click-Stop

Earpads

Face: Lambs Leather Suede, Fill: Memory Foam, Inside: Textile, outside: Perforated Sheepskin

Input Connectors

High-Current Gold Plated 3.5 mm TRRS Female Connectors

Weight without a Cable

515g



Packages:

Headphones only -(for legacy Raal supporters that already have compatible cables and an interface or direct-drive amplifier like Woo Audio WA-33 gen 2)

Headphone: MAGNA (dual true-ribbon driver)

waterproof case

Standard package -

Headphone: MAGNA (dual true-ribbon driver)

SATIS copper 1.8M (6ft) (RCD Interface to Headphone)

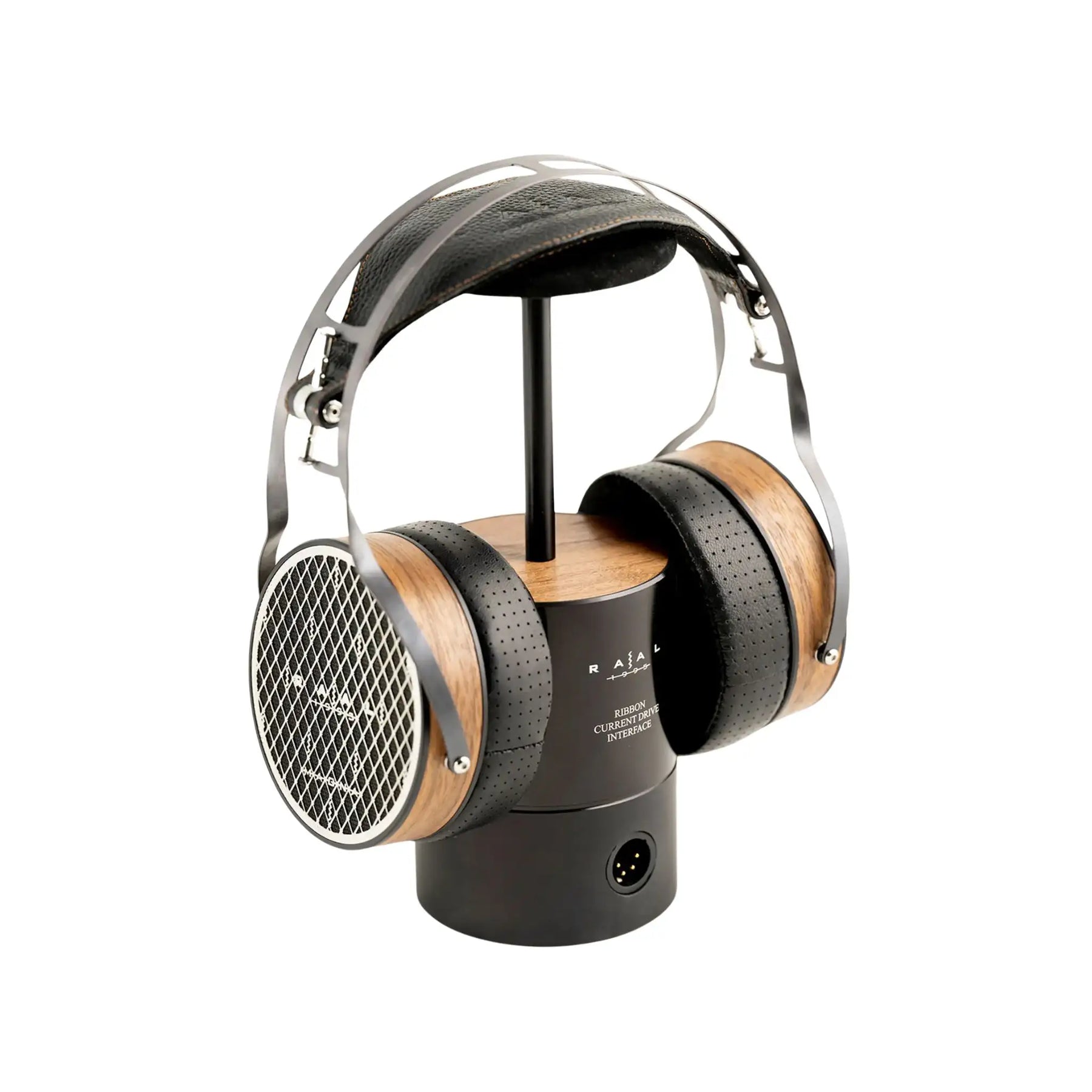

RCD Interface / Stand: 32 Ohm standard (8 Ohm or VIVA Audio special on request)

Cable: RCD-XLR (Amp to Interface) XLR4/XLR4 1.5m (4'11")

waterproof case

Deluxe Package -

Headphone: MAGNA (dual true-ribbon driver)

Cable: STAR-8 MkII Silver (RCD Interface to Headphone) 1.8m (5'11")

RCD Interface / Stand: 32 Ohm standard (8 Ohm or VIVA Audio special on request)

Cable: RCD-XLR (Amp to Interface) XLR4/XLR4 1.5m (4'11")

waterproof case

Premium Package -

Headphone: MAGNA (dual true-ribbon driver)

Cable: STAR-12 Silver (RCD Interface to Headphone) 2.9m (9'6")

RCD Interface/Stand: Silver 32 Ohm standard (8 Ohm or VIVA Audio special on request)

Cable: STAR-8 Silver RCD-XLR (Amp to Interface) XLR4/XLR4 0.85m (4'11")

waterproof case
