Gustard R26


Finish: Silver
Price:
Sale price$1,649.00

Description

Gustard R26 - Discrete R2R DAC with Streamer

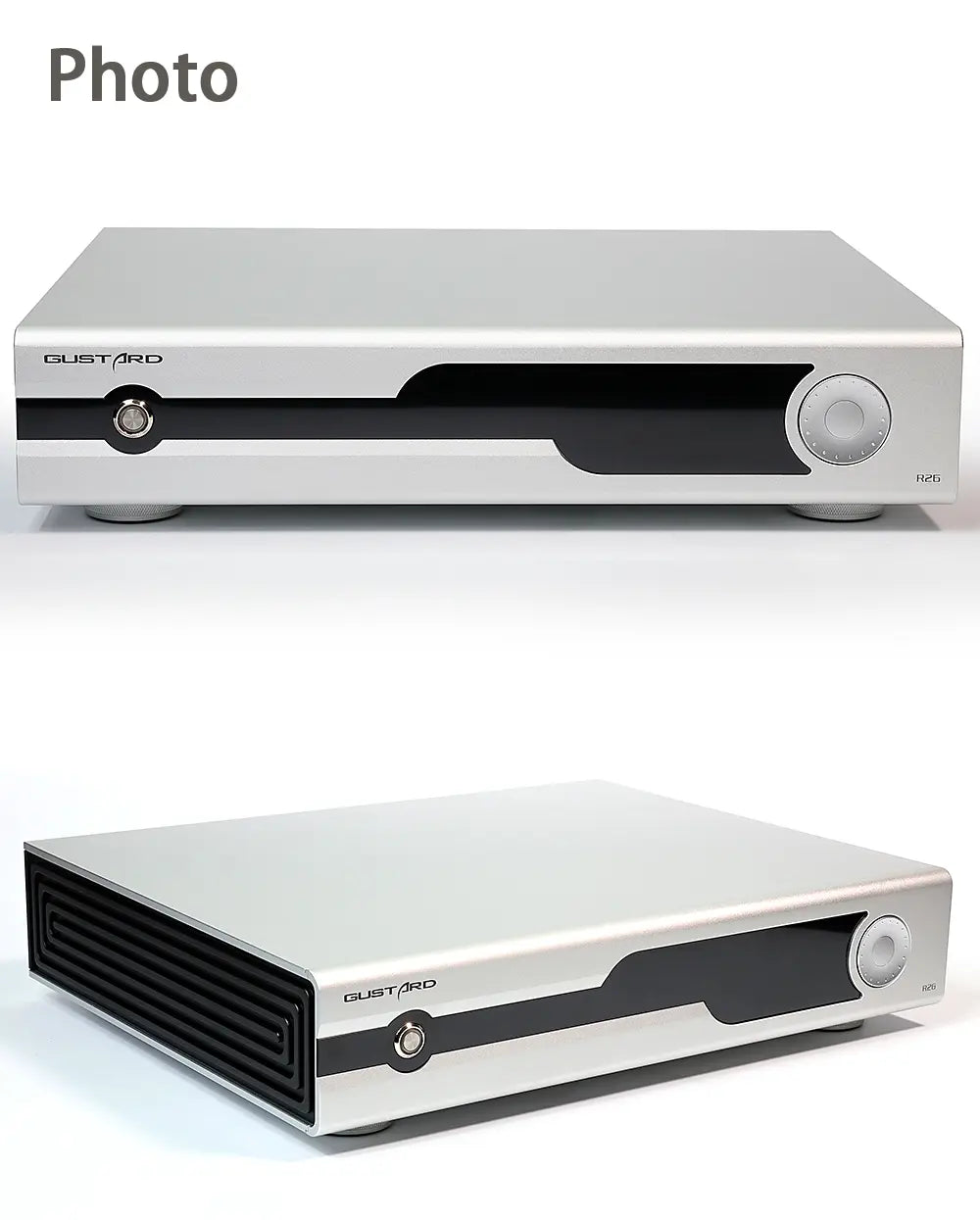

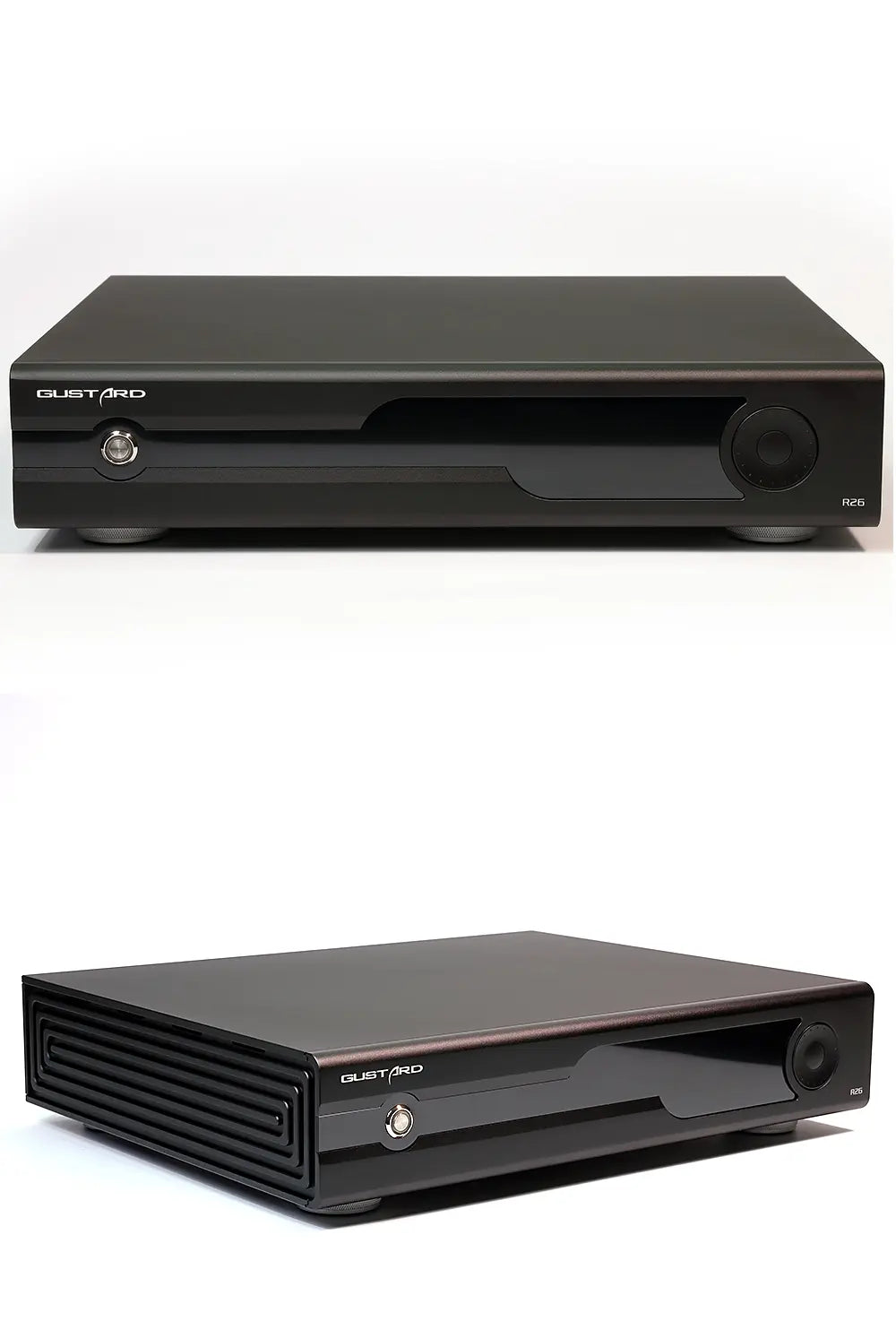

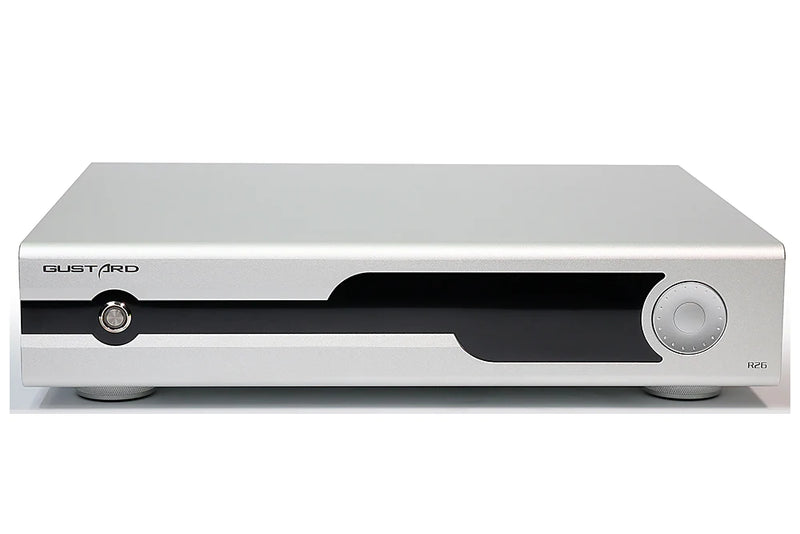

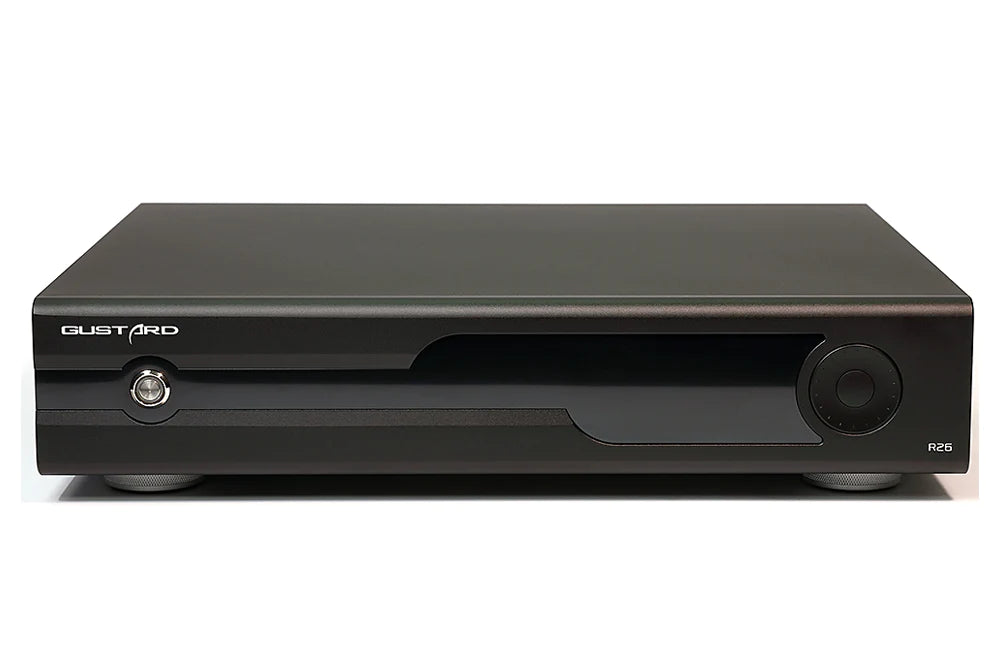

Gustard r26 front shot

Gustard r26 specifications

Gustard r26 discrete dac internals

Gustard r26 1 bit dsd dac internal

Gustard r26 mqa

Gustard r26 clock internals

Gustard r26 lpf

Custard r26 CPLD

Gustard r26 PLL

Gustard r26 XMOS

Gustard R26 bluetooth

Gustard internal regulators and capacitor

Gustard r26 toroidal transformers

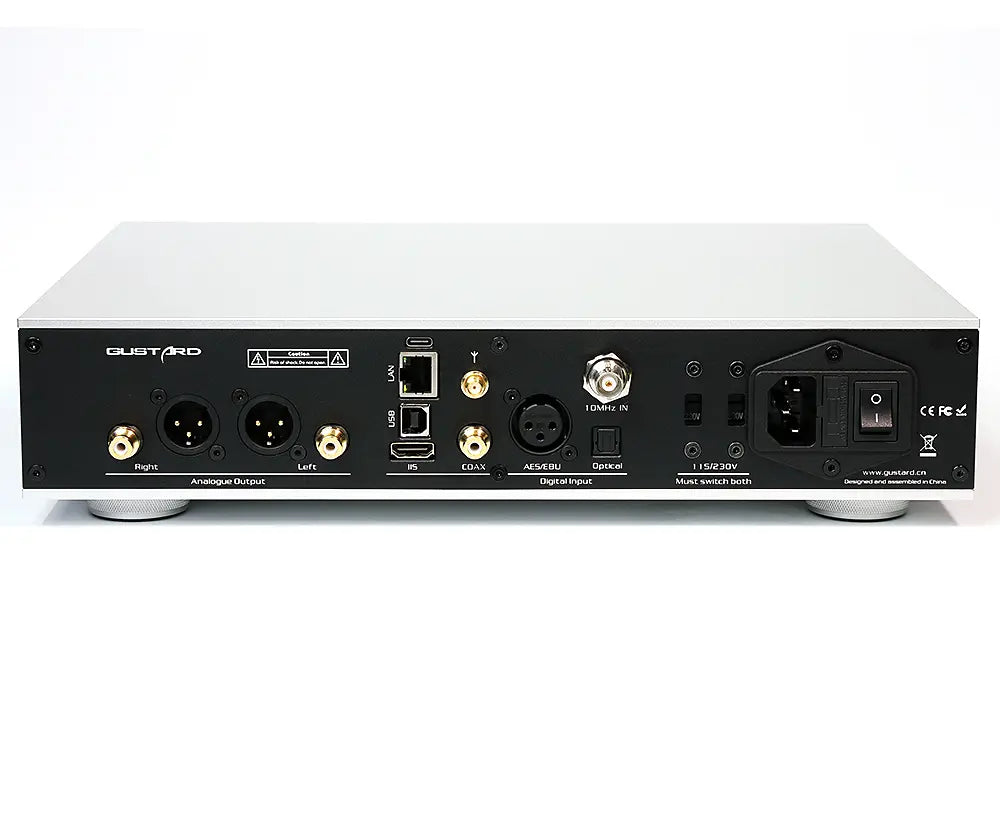

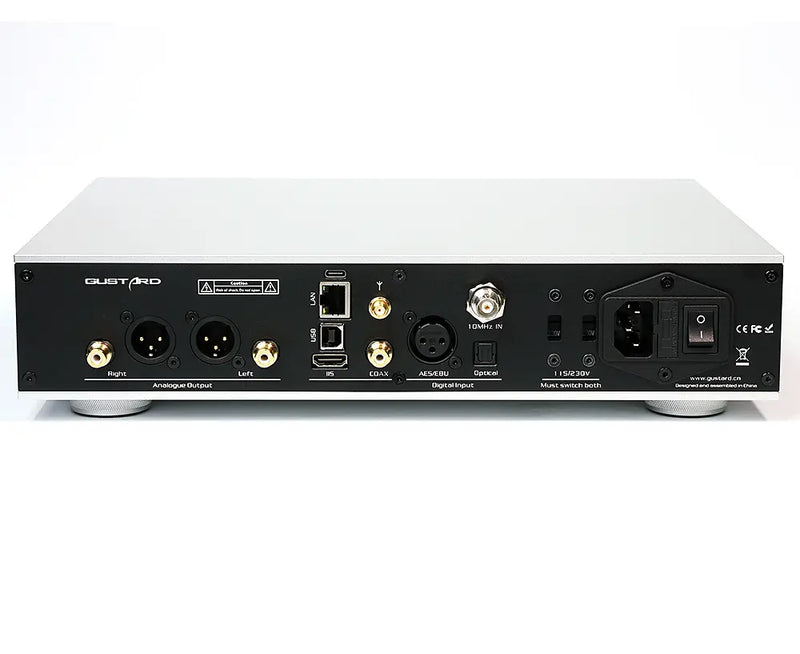

Gustard r26 connections

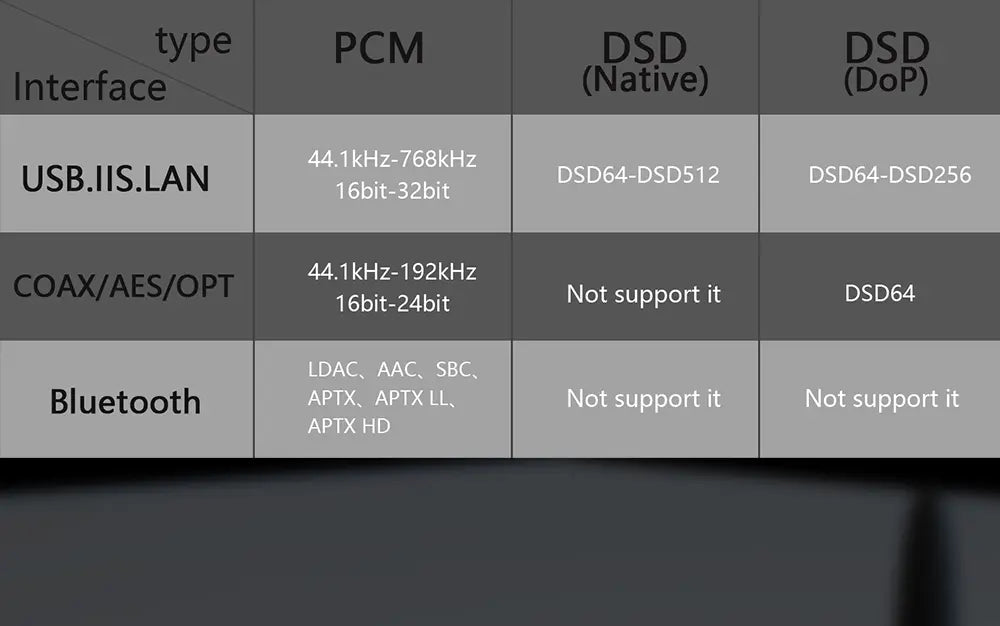

Gustard r26 sample rates for each input

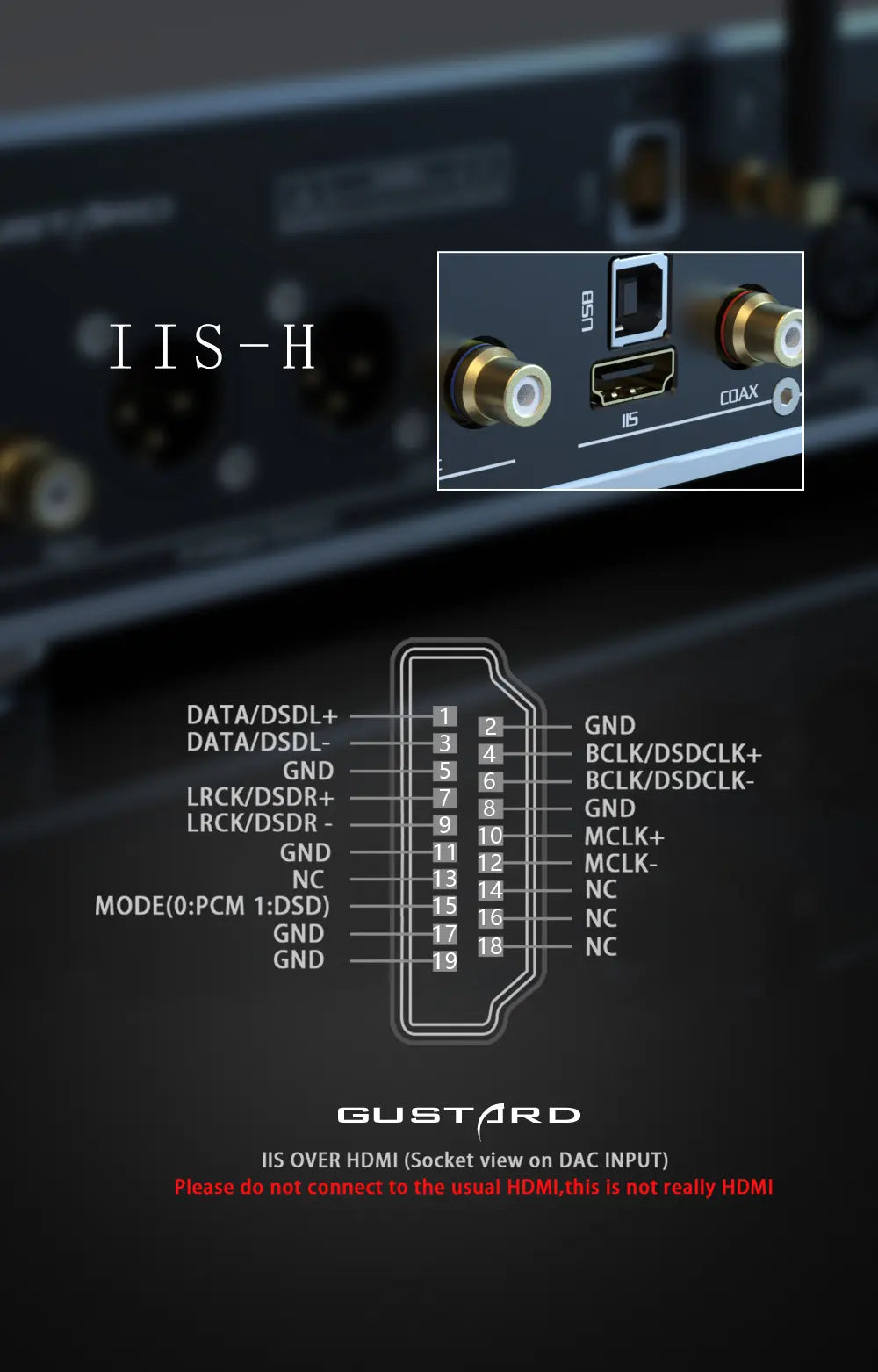

Gustard r26 i2s pinout

Gustard r26 size of unit

Gustard r26 dac features

Gustard r26 input specifications

Gustard r26 output

Product Specifications:

Sample Rate Supported by Digital Input Channels:
COAX/AES/OPT :PCM 16-24bit/44.1-192kHz; DSD DOP64
USB :
PCM 16-32bit/44.1-768kHz
DSD DOP64-DOP256
NATIVE DSD: DSD64-DSD512
OS support: Windows 7~11  32/64bit; macOS; Linux
IIS: PCM 16-32bit/44.1-768kHz; DSD DOP64-DOP256
NATIVE DSD: DSD64-DSD1024
LAN: more in the future
10M Clock in: 50 Ohm BNC, 0dBm-20dBm
square wave 0.2V-3.3V, sinewave 0.5-3.3V

Analog Output Performance :

Frequency Response: 20- 20kHz /+ -0.2dB (Oversampling)
Dynamic range: >115dB
Signal-to-noise ratio: > 122dB
Crosstalk: -134dB @ 1kHz
THD+N: <=0.003% @1kHz
IMD:≈0.008% @ Odbfs
RCA: 2.5Vrms (VOLUME FIXED) 100Ω
XLR: 5.0Vrms VOLUME FIXED) 100Ω
XLR pinout: 1-Ground 2-Hot 3-Cold

Other Specifications :

Power Supply: AC 115V/230V 50/60Hz
Power Consumption < 30W
Size: 330mm (Width) * 260mm (Length) * 65mm (Height) (protrusion not included)
Packing size: 420mm (Width) * 360mm (Length) * 175mm (Height);
Weight: 7Kg (with package)
Sandblasted aluminum alloy case: Silver or Black version
