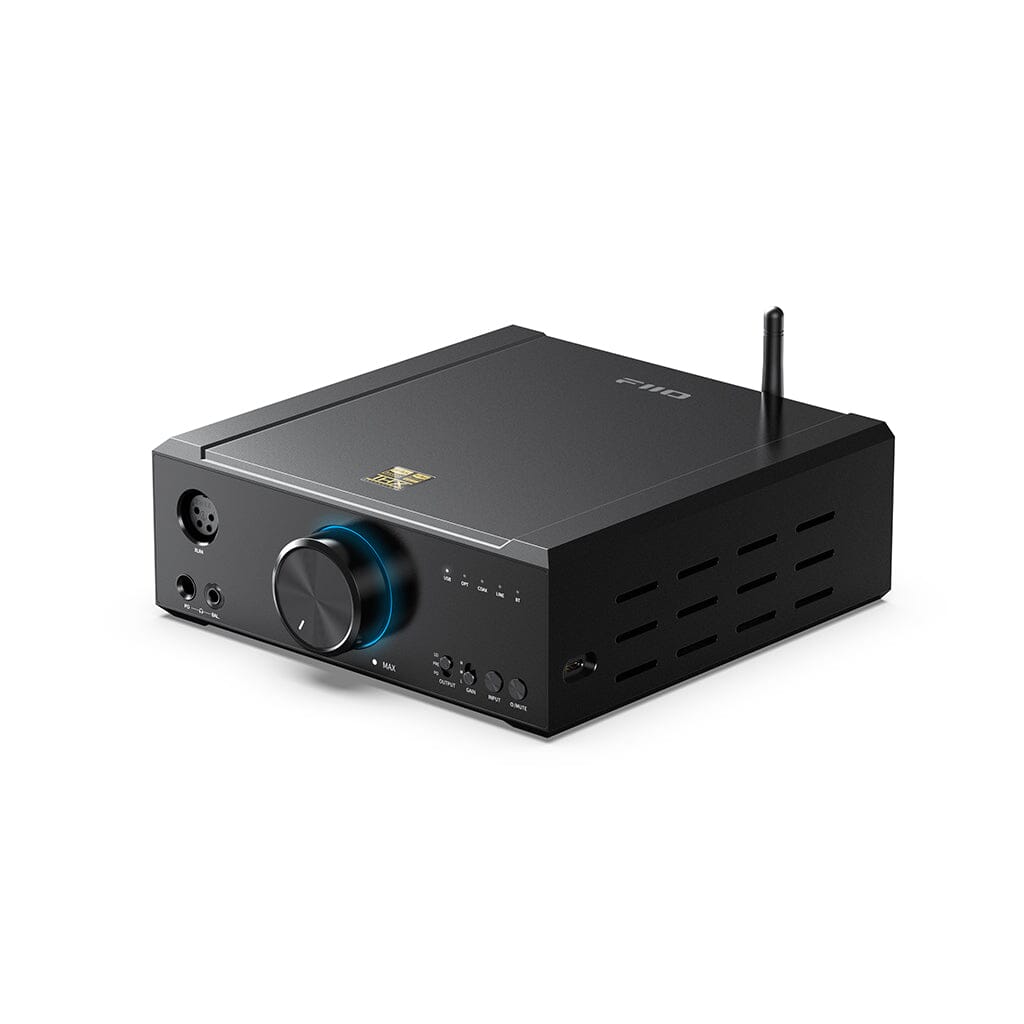

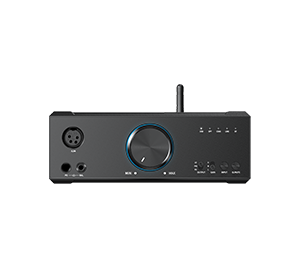

Fiio K9 AKM Desktop DAC and Headphone Amplifier

The Fiio K9 AKM combines the flagship AKM AK4191EQ and AK4499EX DAC pairing with dual THX AAA 788+ amplifier modules in a full size desktop DAC and headphone amplifier. With 2000mW per channel of balanced power, a complete set of analog and digital inputs including Bluetooth 5.1 with LDAC, and XLR balanced line outputs, it anchors a serious headphone desk.

Type and Technology

The AK4191EQ digital modulator and AK4499EX current output DAC separate digital and analog conversion for very low noise, supported by a six stage fully balanced circuit and an internal linear transformer power supply with isolated digital and analog rails. Dual THX AAA 788+ modules provide clean, low distortion amplification, and the XMOS USB stage handles PCM to 768kHz/32-bit and native DSD512. Both USB-B and USB-C ports are provided.

Sound Character

Compared with ESS based siblings such as the K9 Pro ESS, the AKM version trades a touch of edge for natural warmth and a smoother, slightly more organic delivery, while THX amplification keeps the background dead silent and bass control excellent.

Build and Features

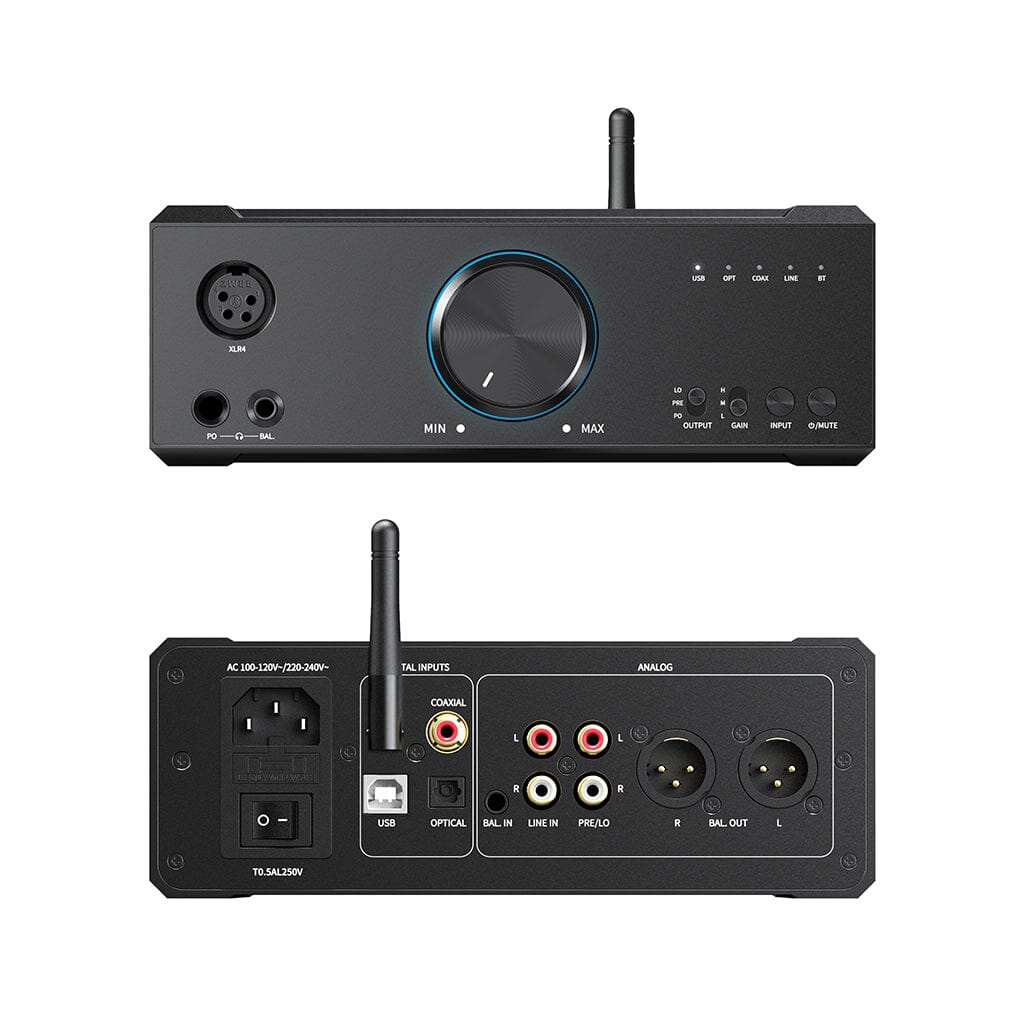

Sample rate and Bluetooth codec are shown by the RGB ring around the 120 step volume knob, with three gain levels and app control for filters, channel balance, and Bluetooth EQ. Inputs cover USB-B, USB-C, optical, coaxial, RCA line in, 4.4mm balanced line in, and Bluetooth; outputs include 6.35mm, 4.4mm, and XLR4 headphone jacks plus RCA and XLR3 balanced line outs. An included stand allows vertical placement. Explore the full DAC collection and more Fiio gear at Mimic Audio.

Best For

Headphone listeners who want flagship AKM conversion, silent THX amplification, and complete connectivity including balanced XLR feeds to active monitors, a step below flagship pricing.

What's in the Box

• Fiio K9 AKM
• AC power cord
• USB data cable
• Headphone plug adapter
• Desktop stand
• Spare fuse and voltage selection card
• Quick start guide and warranty card
