Fiio K13 R2R Desktop DAC and Headphone Amplifier
The Fiio K13 R2R brings a true discrete resistor ladder DAC to the affordable desktop all-in-one. Its fully differential 24-bit R2R array uses 192 precision thin film resistors, paired with a fully balanced headphone amplifier delivering 2400mW per channel, Bluetooth 5.4 with LDAC, and both RCA and XLR line outputs, all in a compact unibody aluminum chassis.
Type and Technology

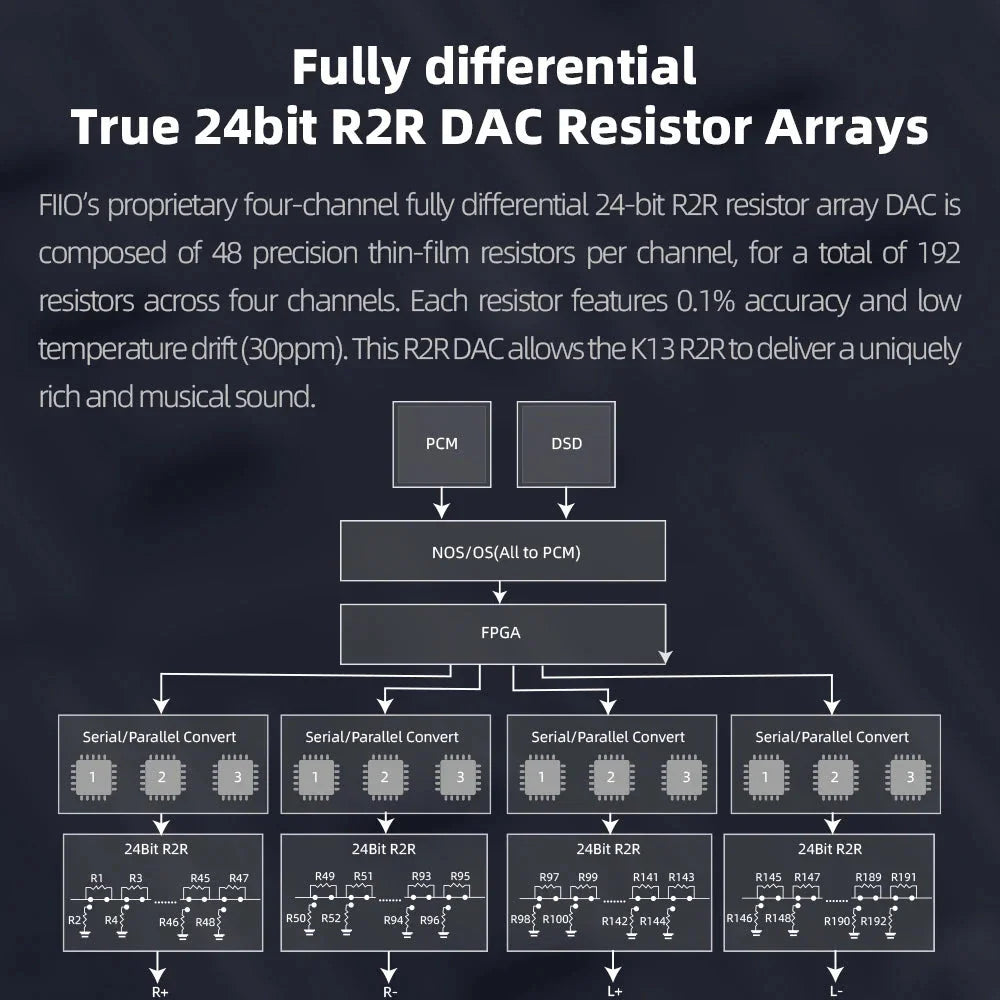

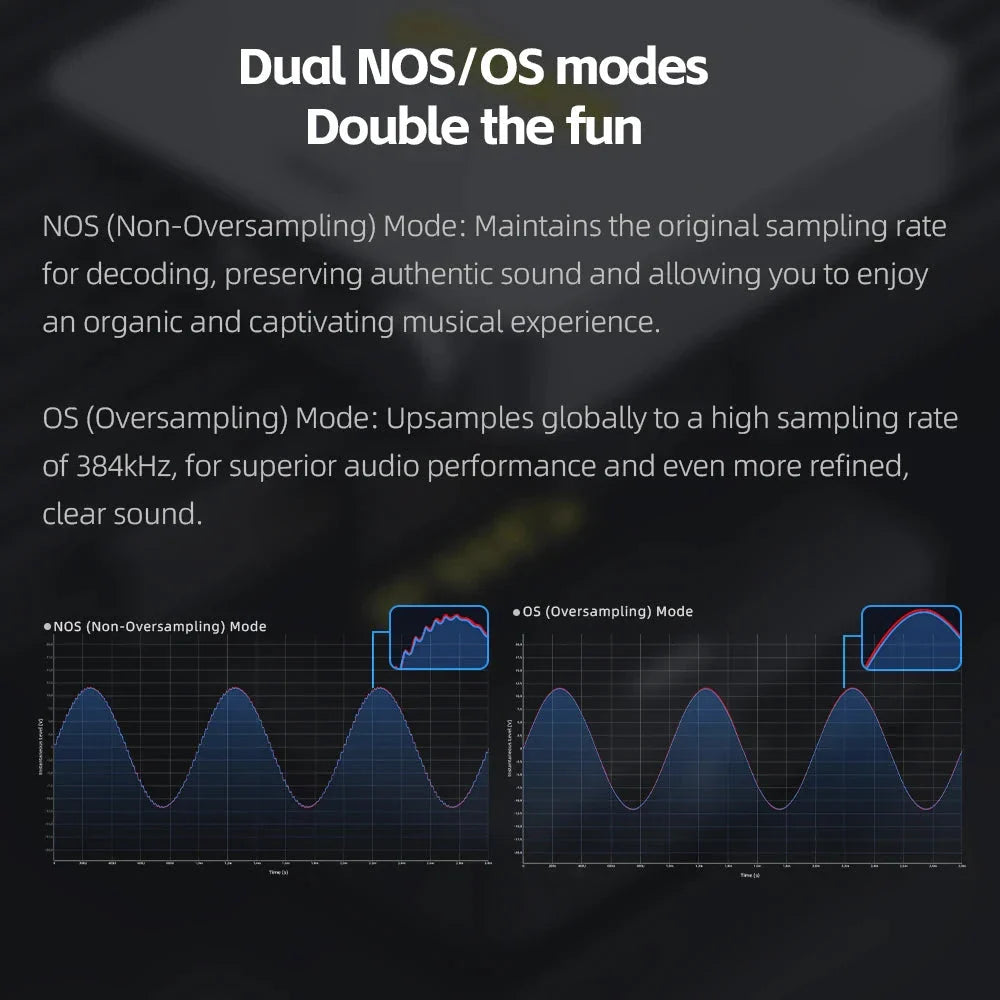

Instead of an off the shelf chip, the K13 R2R decodes with a Fiio developed four channel R2R ladder built from 48 thin film resistors per channel at 0.1% tolerance. Selectable NOS and OS modes switch between native rate playback for classic R2R flavor and global upsampling to 384kHz for a cleaner presentation. USB input handles PCM to 384kHz/32-bit and DSD256 with full MQA decoding, and a 10-band parametric EQ runs losslessly on the XMOS XU316 platform.
Sound Character
Expect the warm, organic, naturally textured presentation that draws people to R2R conversion, with smooth treble and a relaxed sense of flow. OS mode tightens focus and detail while NOS keeps the classic analog style character, so you can match the DAC to the recording and your mood.
Build and Features

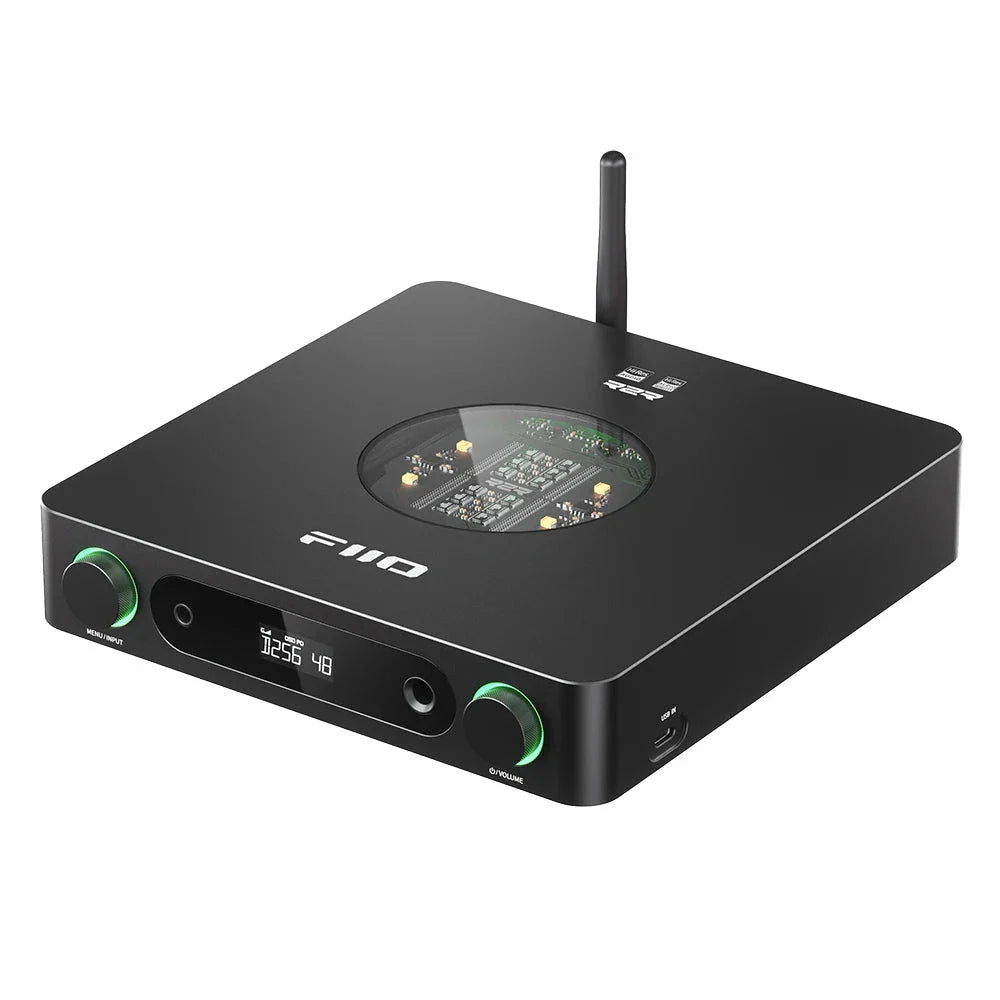

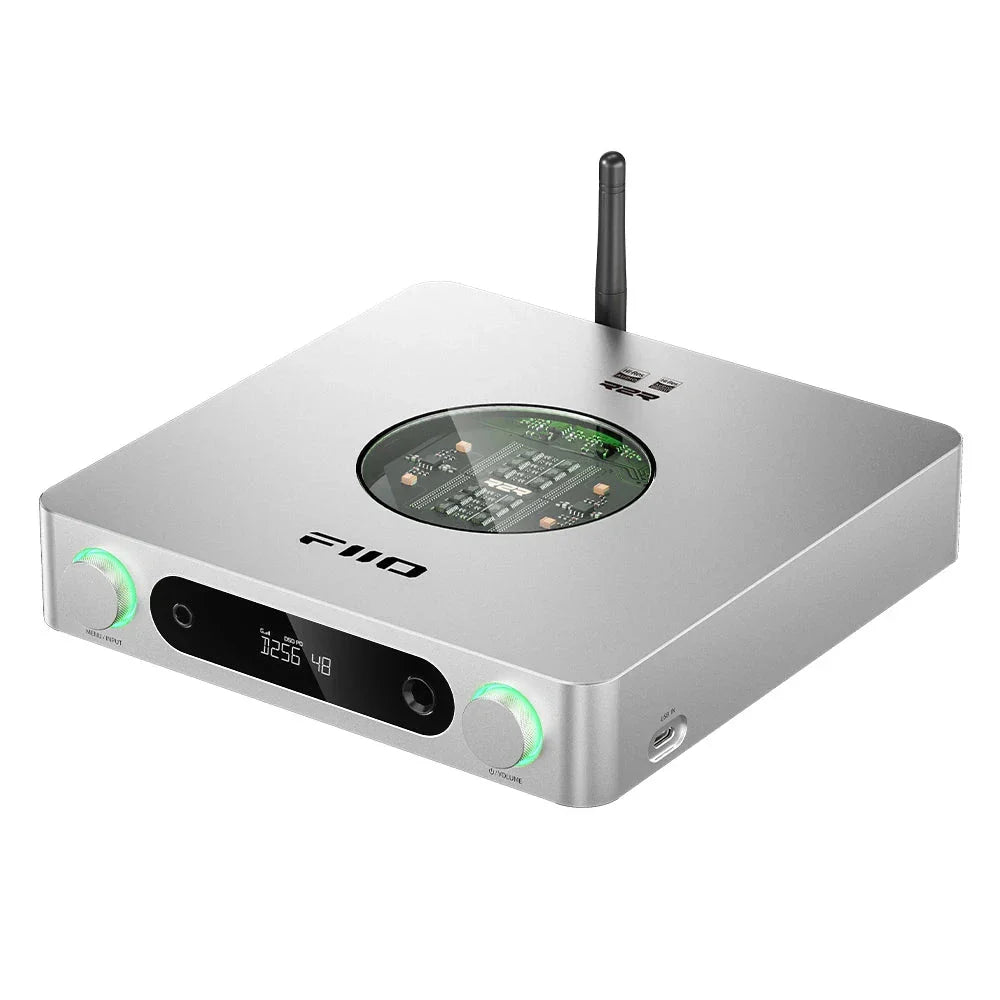

The aluminum chassis carries a 1.1 inch status display, dual knobs, adjustable RGB accent lighting, and an included remote, with app and web based PEQ control. Inputs include two USB-C ports, coaxial, optical, and Bluetooth 5.4; outputs cover 6.35mm and 4.4mm balanced headphone jacks plus RCA and XLR3 line outs with fixed or preamp modes. Browse more desktop DACs in the Fiio collection.
Best For
Desktop listeners who want R2R texture and musicality with modern conveniences like Bluetooth, parametric EQ, and balanced power to spare, at a sensible midrange price.
What's in the Box
- Fiio K13 R2R
- Infrared remote control
- AC power cord
- USB data cable
- Headphone plug adapter
- Quick start guide and warranty card
Specifications
| Specification | Value |
|---|---|
| DAC | Discrete 24-bit fully differential R2R ladder, 192 thin film resistors |
| Modes | NOS and OS (global upsampling to 384kHz) |
| Balanced output power | 2400mW x2 at 32 ohms, 600mW x2 at 300 ohms |
| Single ended output power | 1220mW x2 at 32 ohms |
| SNR | 117dB or higher single ended, A-weighted |
| Dynamic range | 108dB or higher |
| Hi-res support | PCM up to 384kHz/32-bit, DSD256, full MQA decoding |
| Bluetooth | 5.4 with LDAC, AAC, SBC |
| Inputs | Two USB-C, coaxial, optical, Bluetooth |
| Headphone outputs | 6.35mm, 4.4mm balanced |
| Line outputs | RCA, XLR3 balanced (fixed or preamp) |
| EQ | 10-band lossless parametric EQ |
| Gain | Three levels |
| Display | 1.1 inch LCD with RGB accent lighting |
| Power supply | Internal 30W, AC 100 to 240V, or DC 12V/2.5A |
| Dimensions | 210 x 188 x 42 mm |
| Weight | About 980g |
What Reviewers Say
Z Reviews highlights the K13 R2R's musical R2R sound and generous feature set for the price in his hands-on review.
