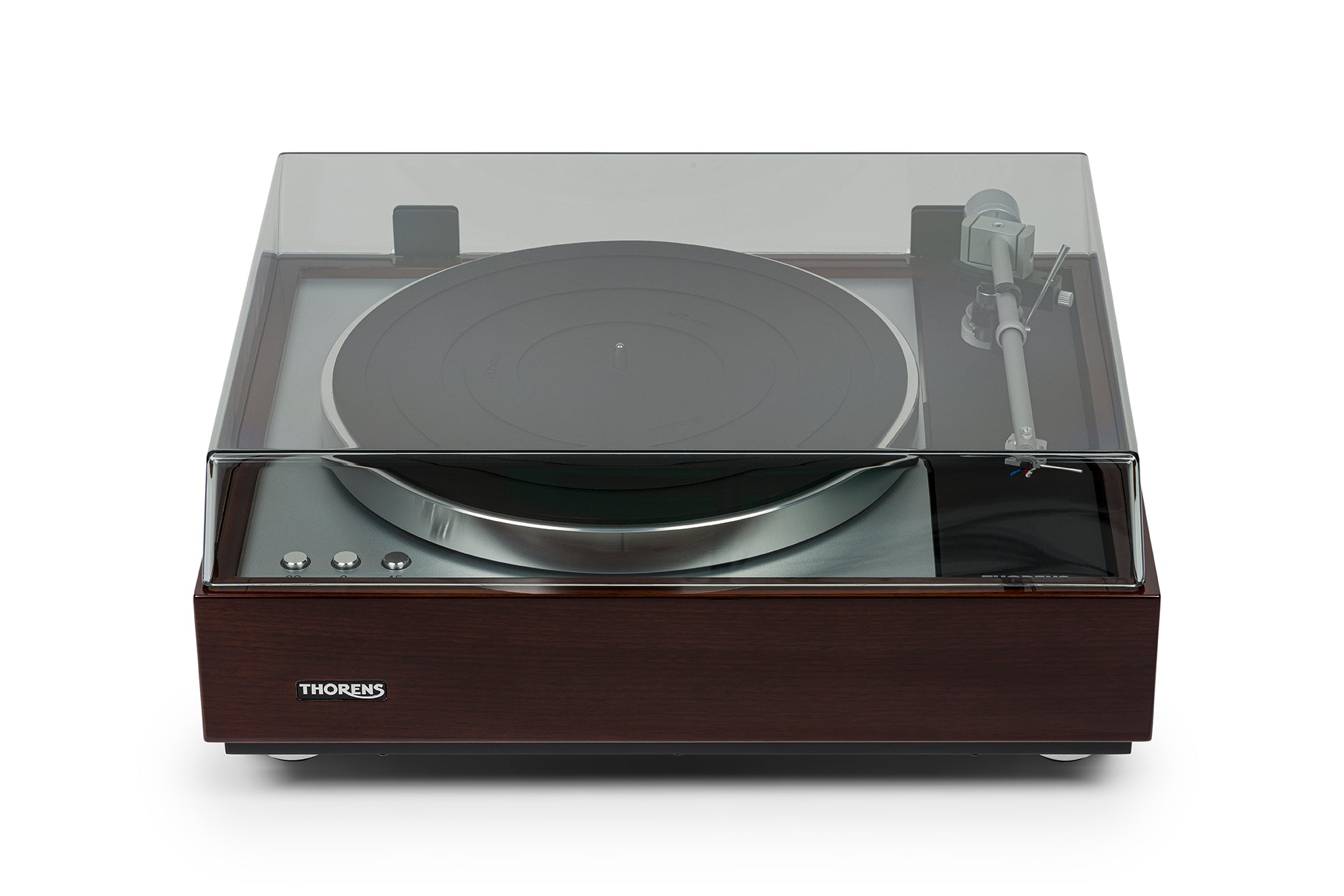

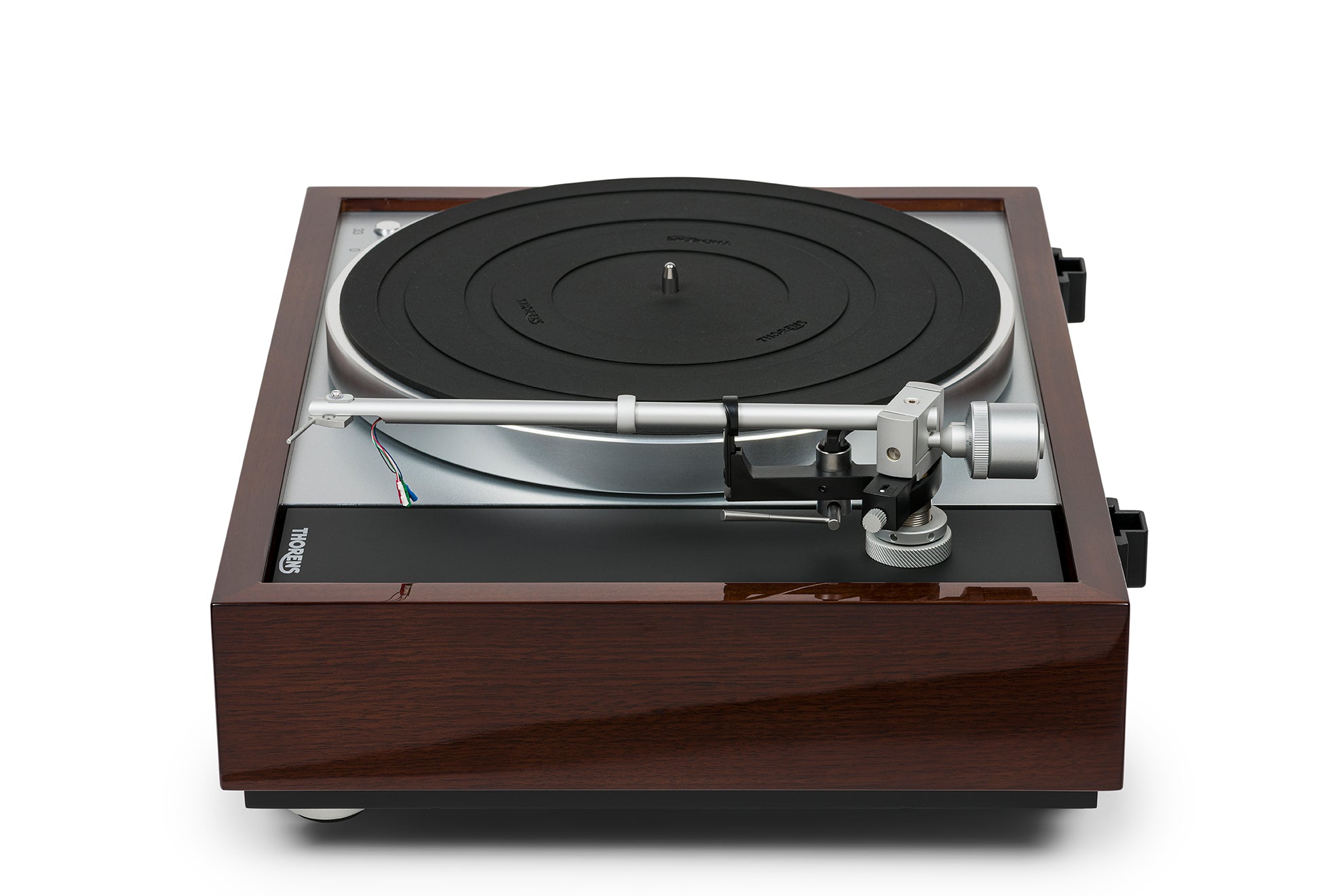

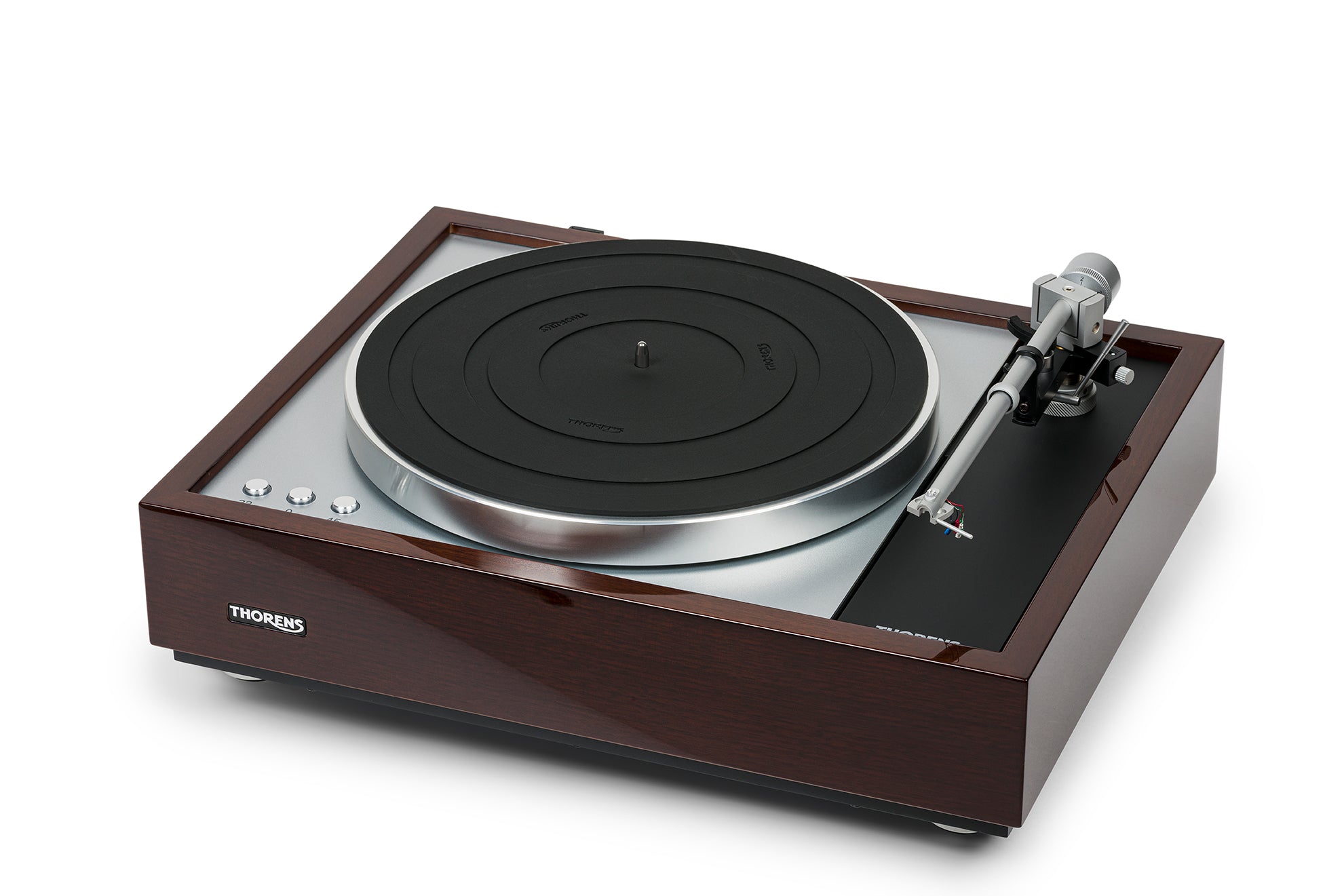

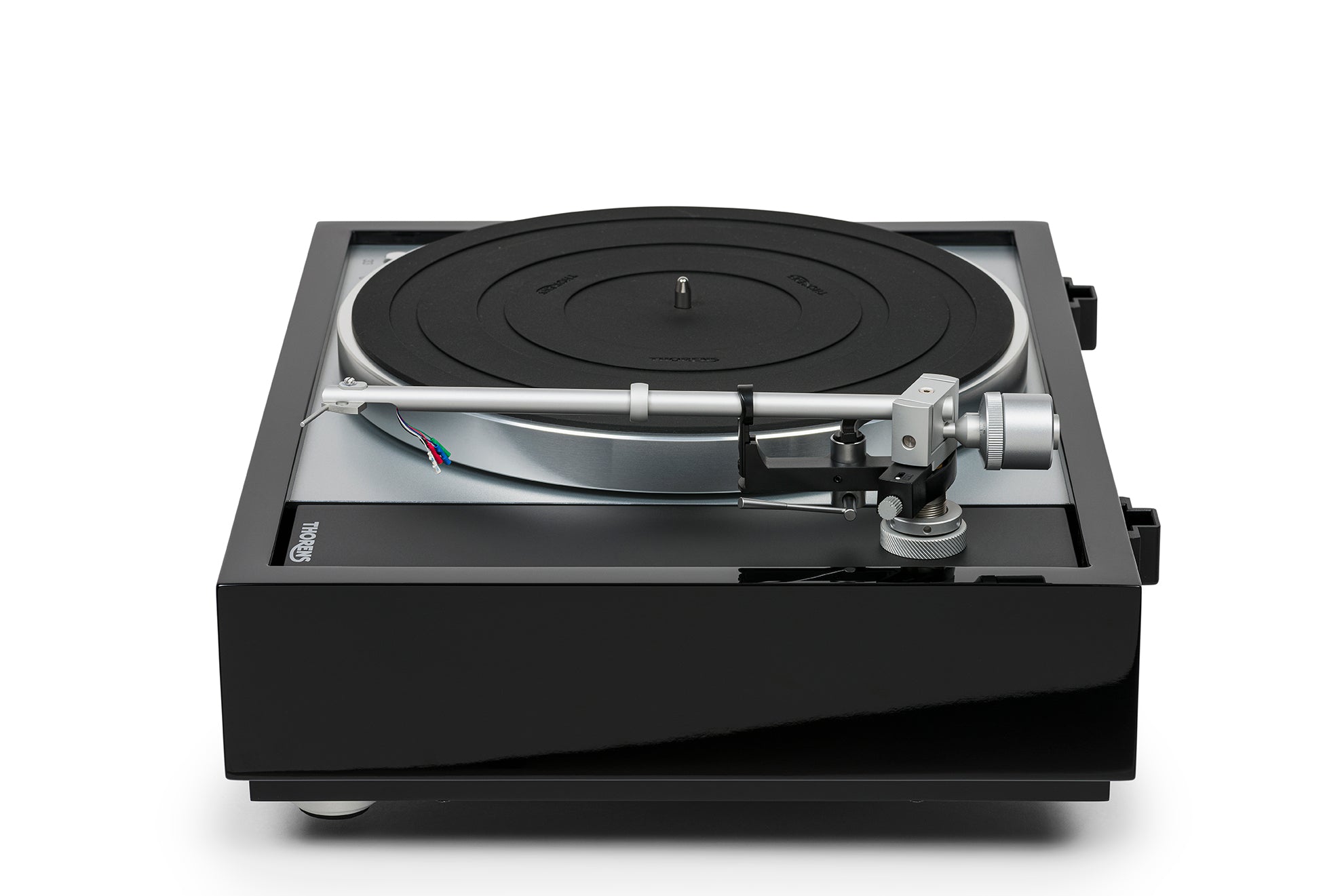

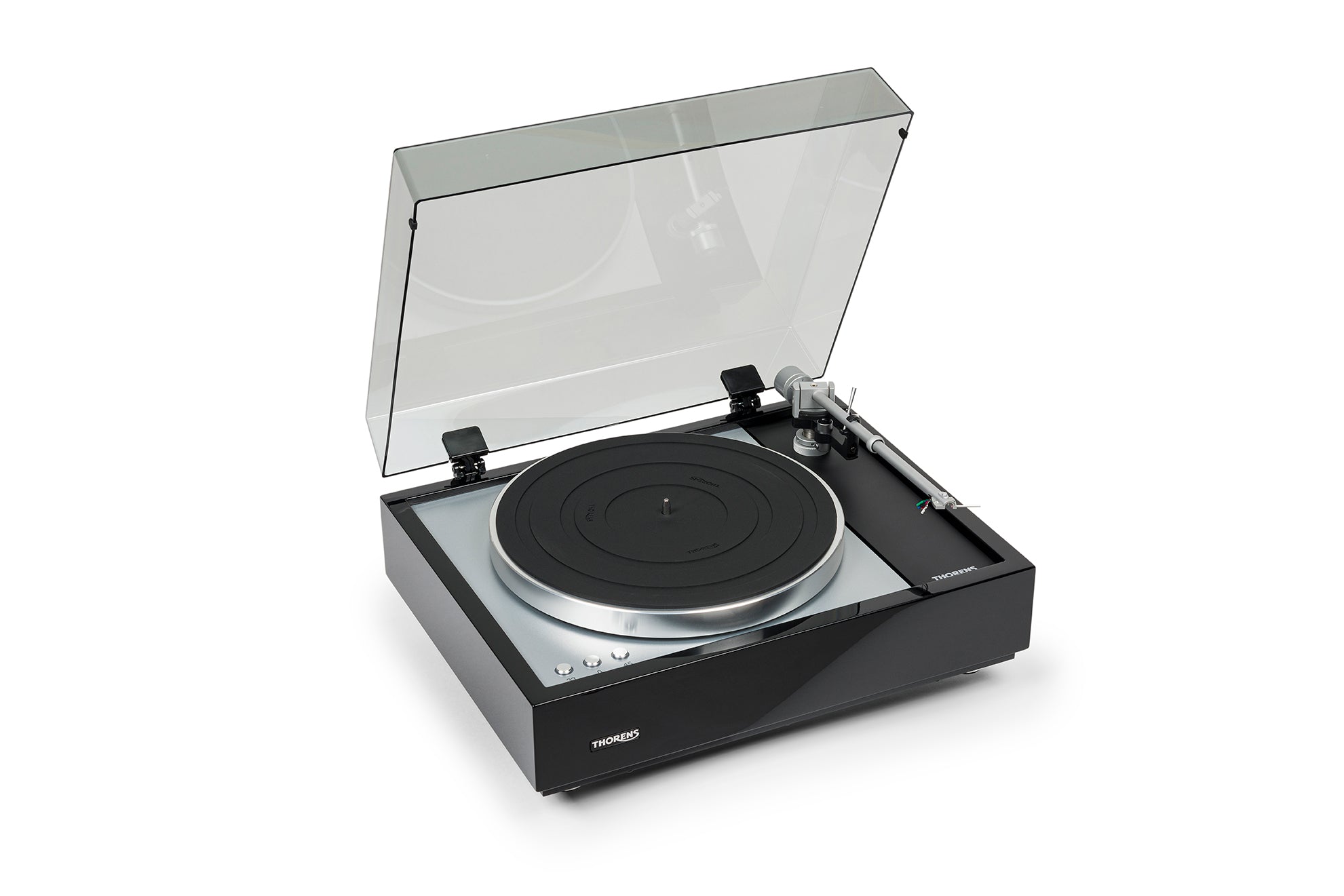

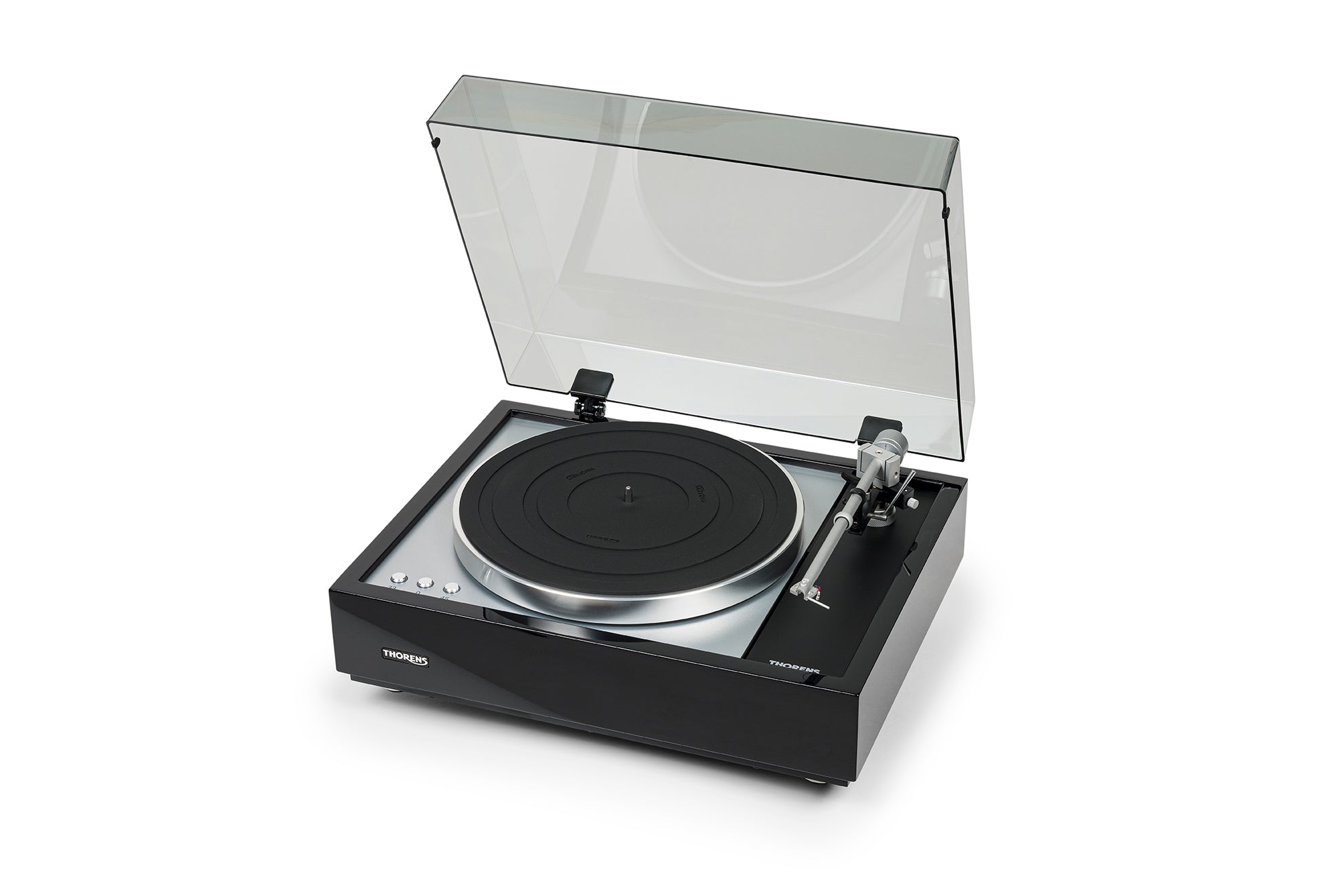

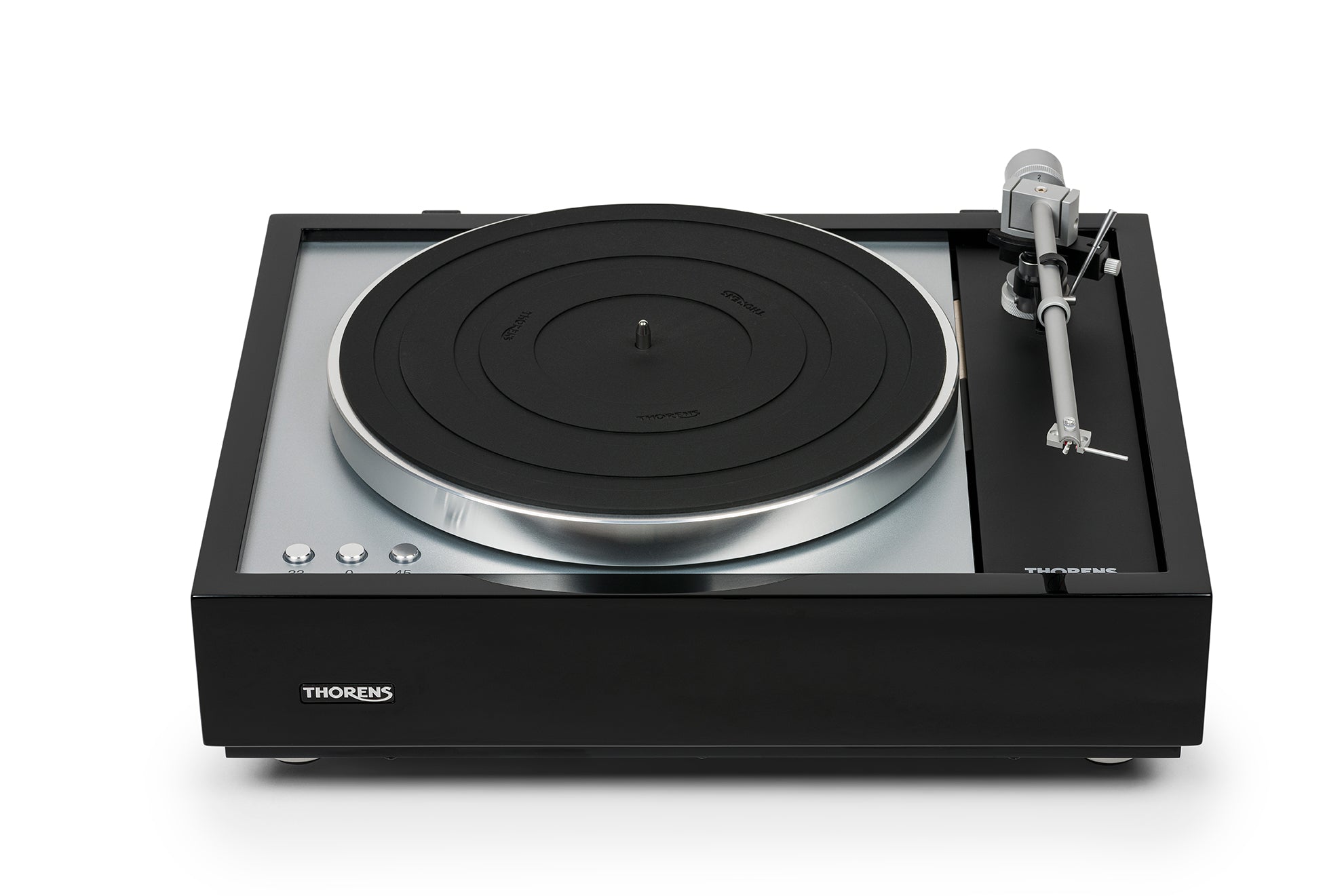

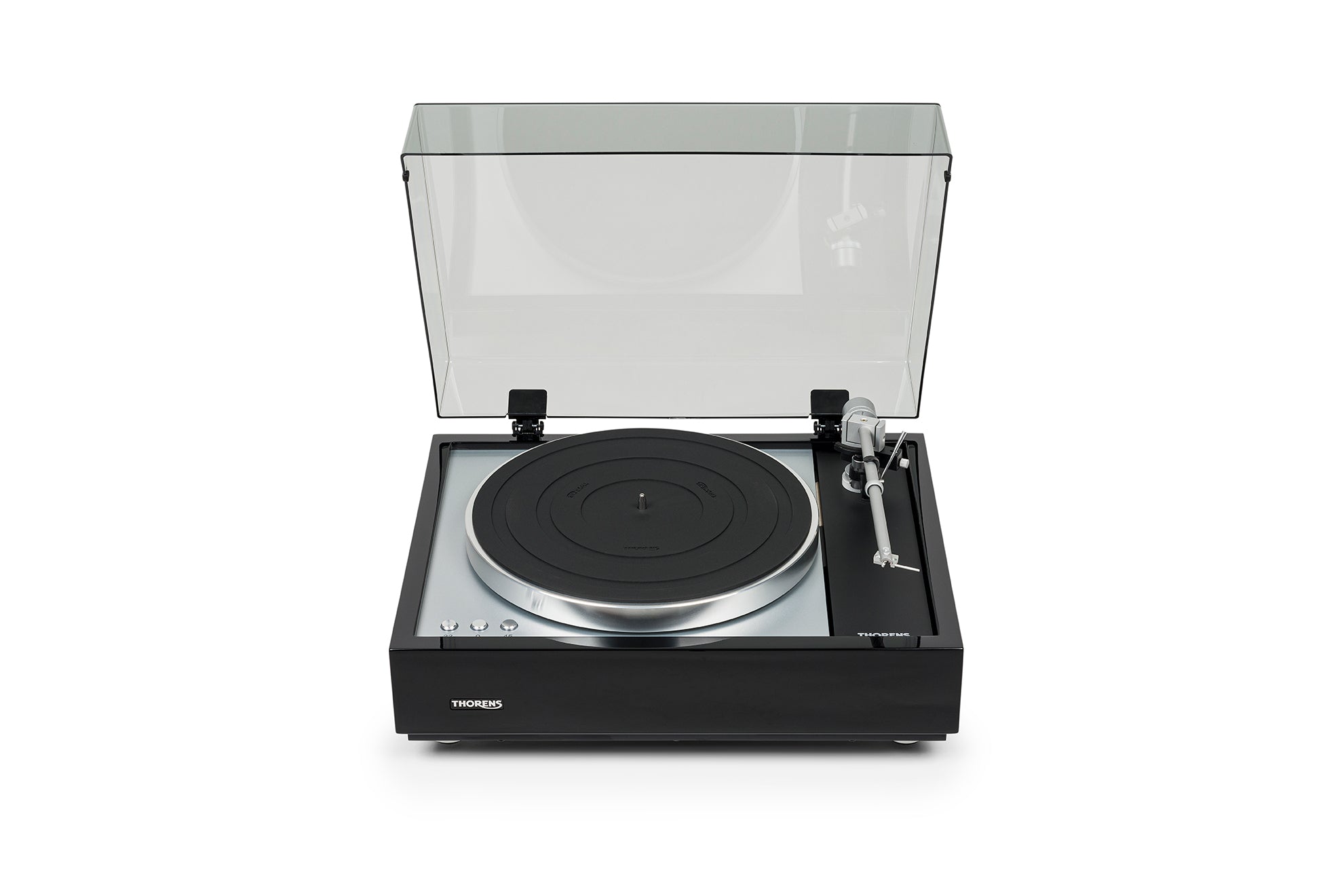

Thorens TD 1600 - High End Sub-Chassis Turntable
Return of Thorens DNA
Thorens TD 1600 combines the brand’s tradition of the past with 21st century’s technology. Externally quite similar to former famous 160 series with classical wooden plinth, two-part platter with inner belt and thick rubber mat, arm board and acrylic dust cover, it contains a lot of innovations inside.
The conical springs for sub chassis are not mounted on top board any longer but standing on the bottom. Additionally, a small but strong tightened thread made of steel connects sub chassis with a steel pin on the bottom and so prevents sub chassis from staggering and allows only vertical movement.
A powerful control unit takes care of motor speed.
- Stabilized sub chassis on three conical springs
- Polished precision belt
- Two part platter
- Adjustable belt tension
- Electronical controlled motor

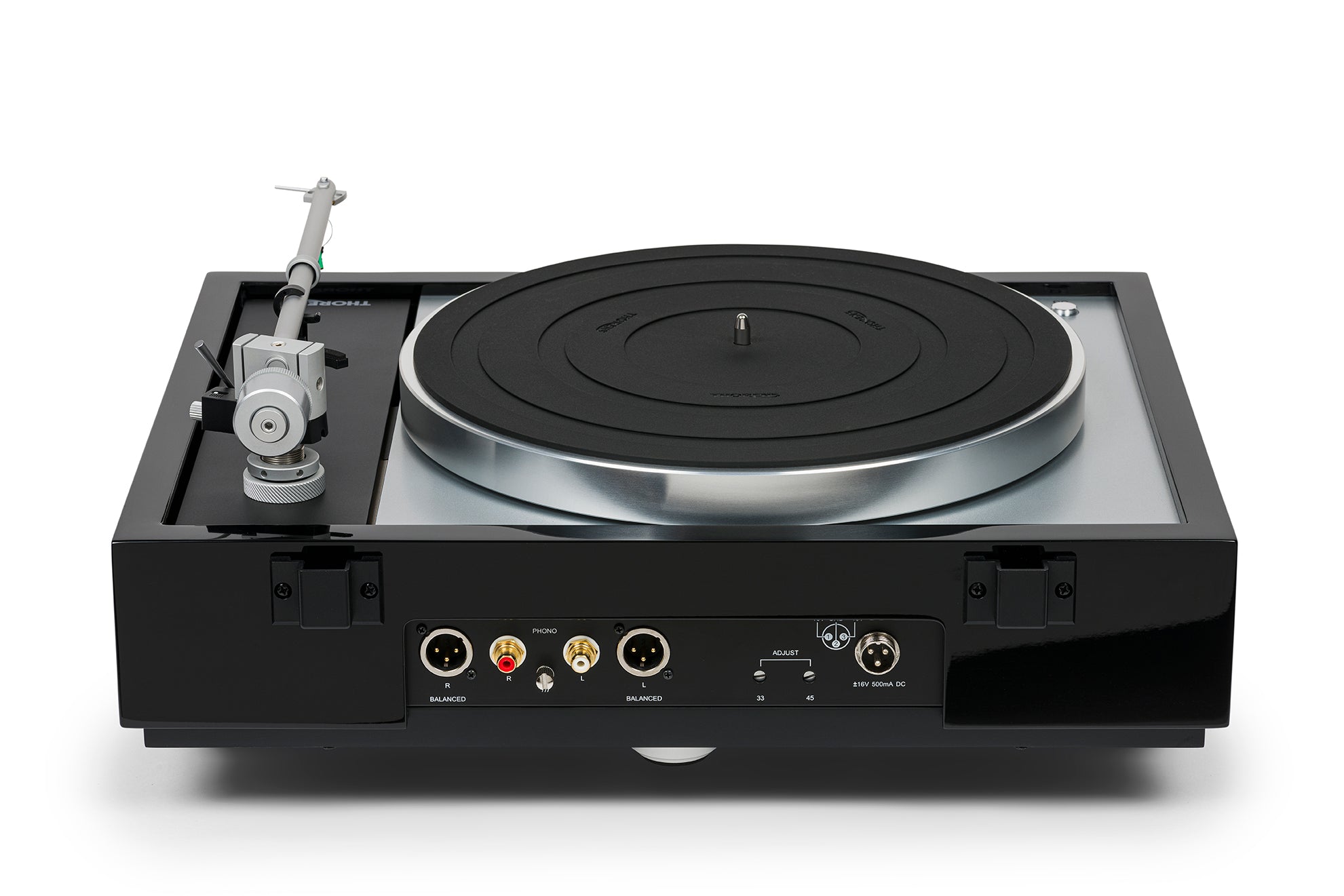

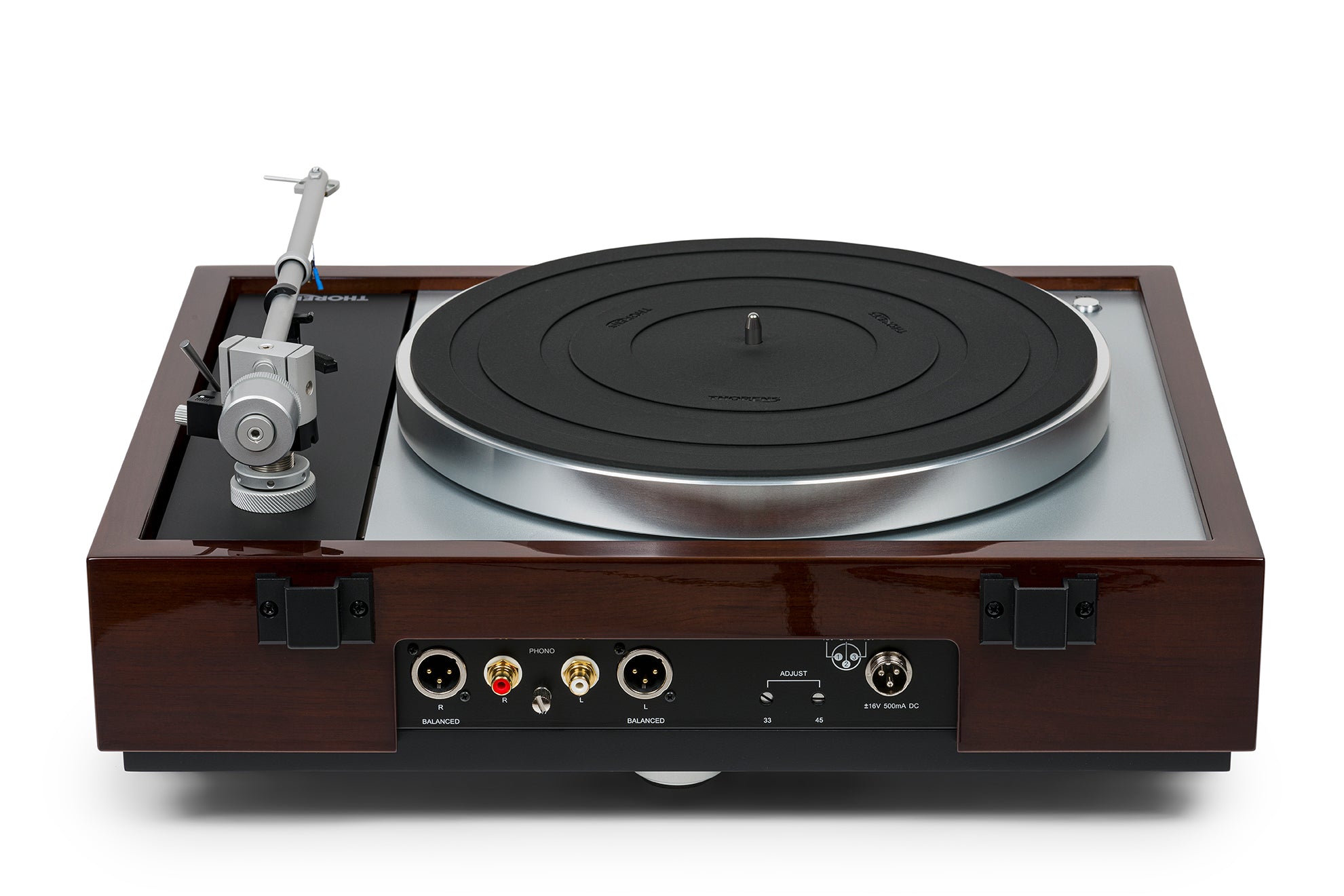

- balanced (XLR) and unbalanced (RCA) output
- Thorens precision tonearm TP 92 9“
|Function||Manual Turntable with Sub Chassis
|Drive System||Belt, Sub Platter Aluminum
|Motor||Electronically controlled and stabilized AC synchronous motor|
|Speeds||33-1/3, 45 rpm.|
|Platter||12” / 4,2 kg (aluminum)|
|Tonearm||Thorens TP 92
|Anti-Skating||Magnetic (TP 92)
||external power supply (115/230 V depending on type)|
|Dimensions||454 x 180 x 369 mm (W x H x D)|

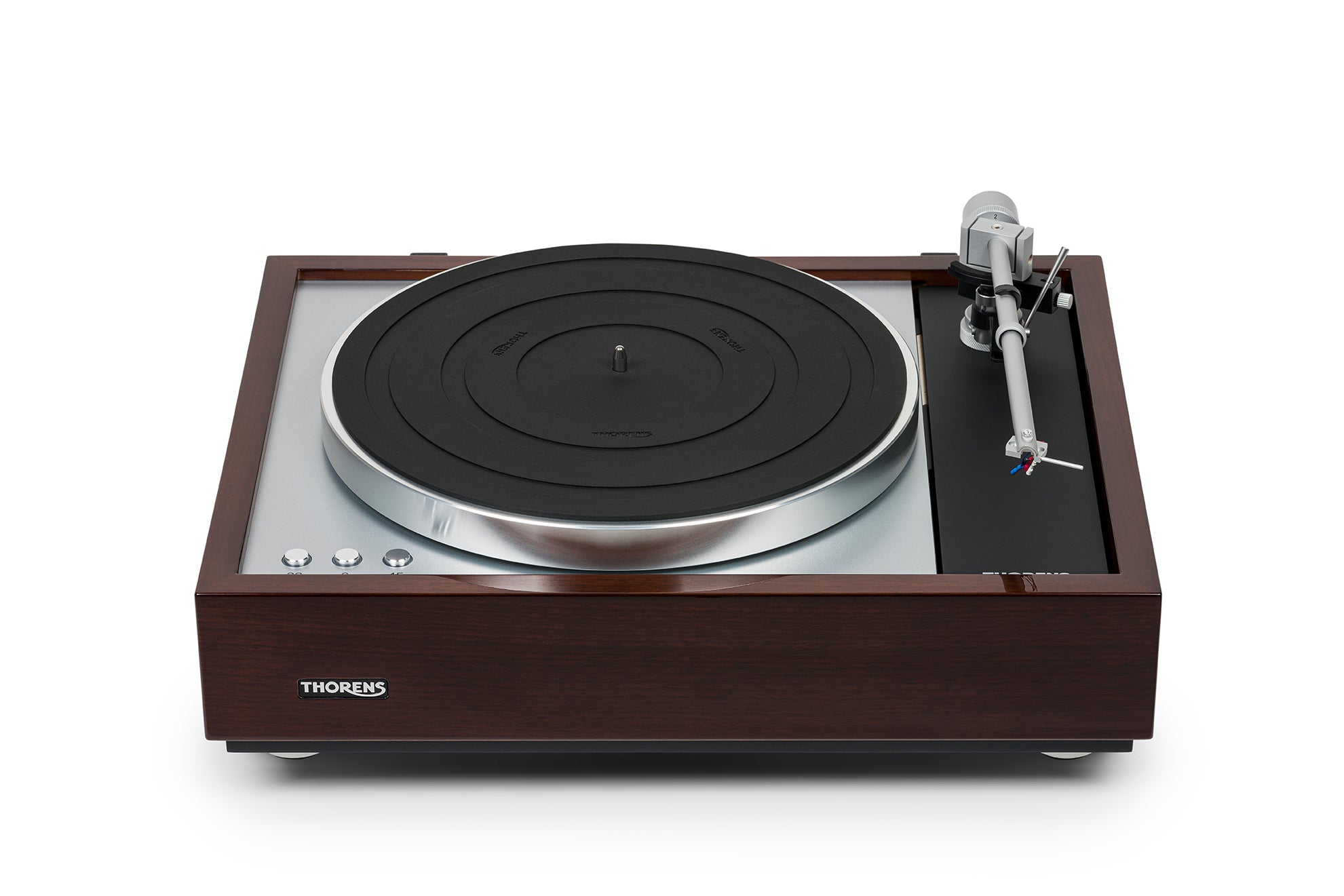

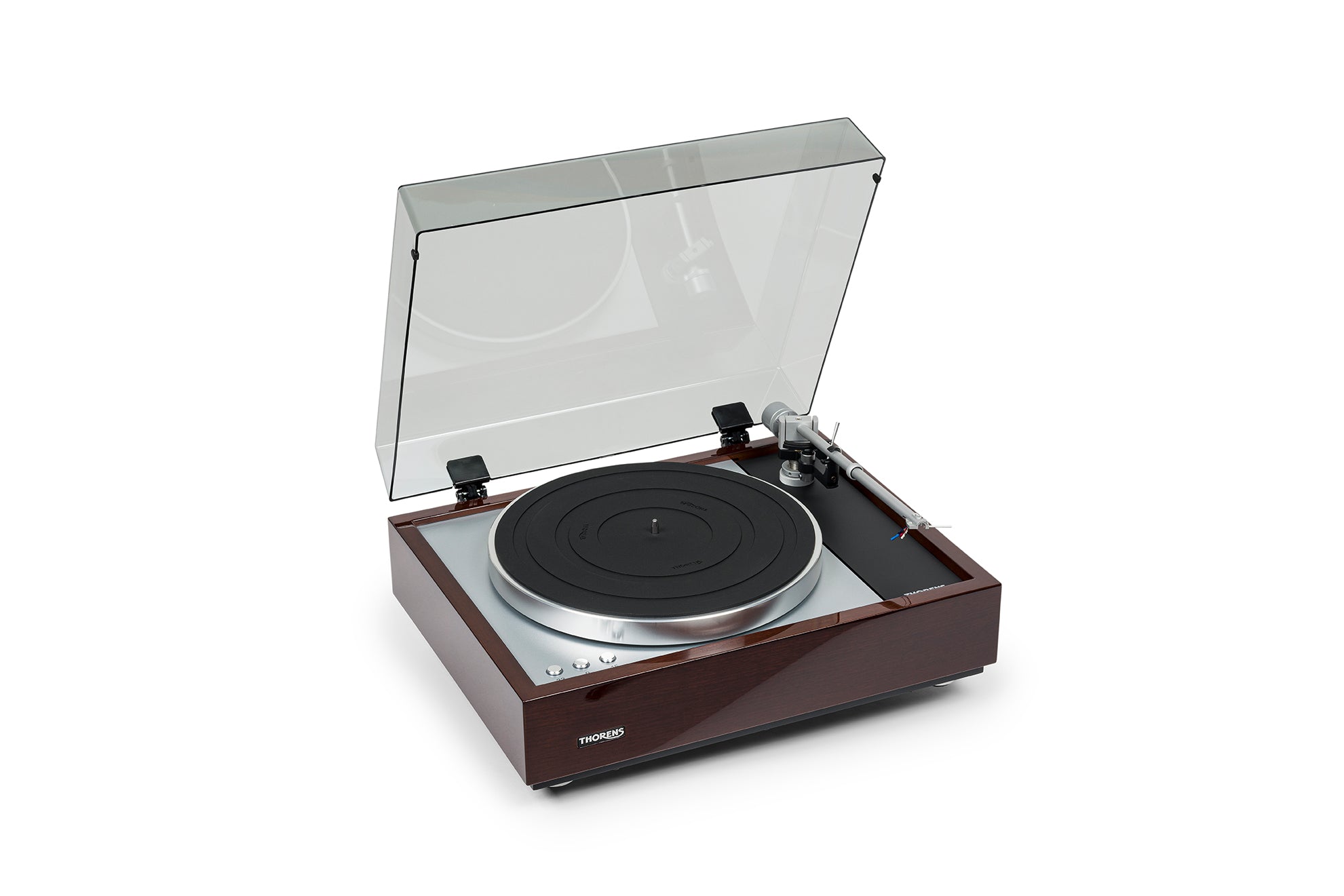

|Finish||solid wooden plinth, black high gloss, walnut high gloss, top board made of triCom|

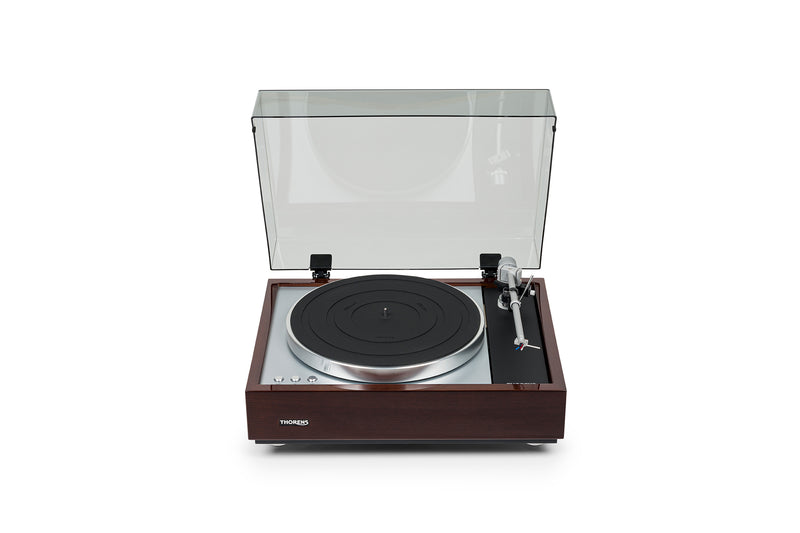

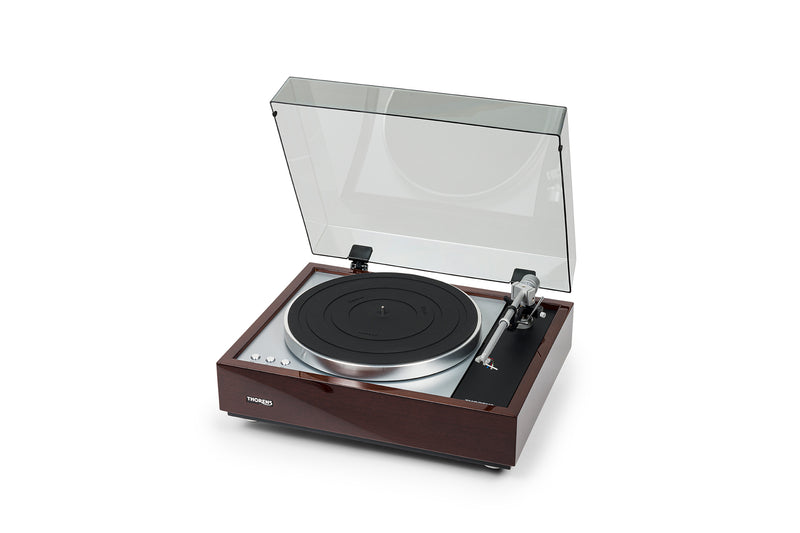

|What's included||Power Supply, Acrylic Dust Cover|
