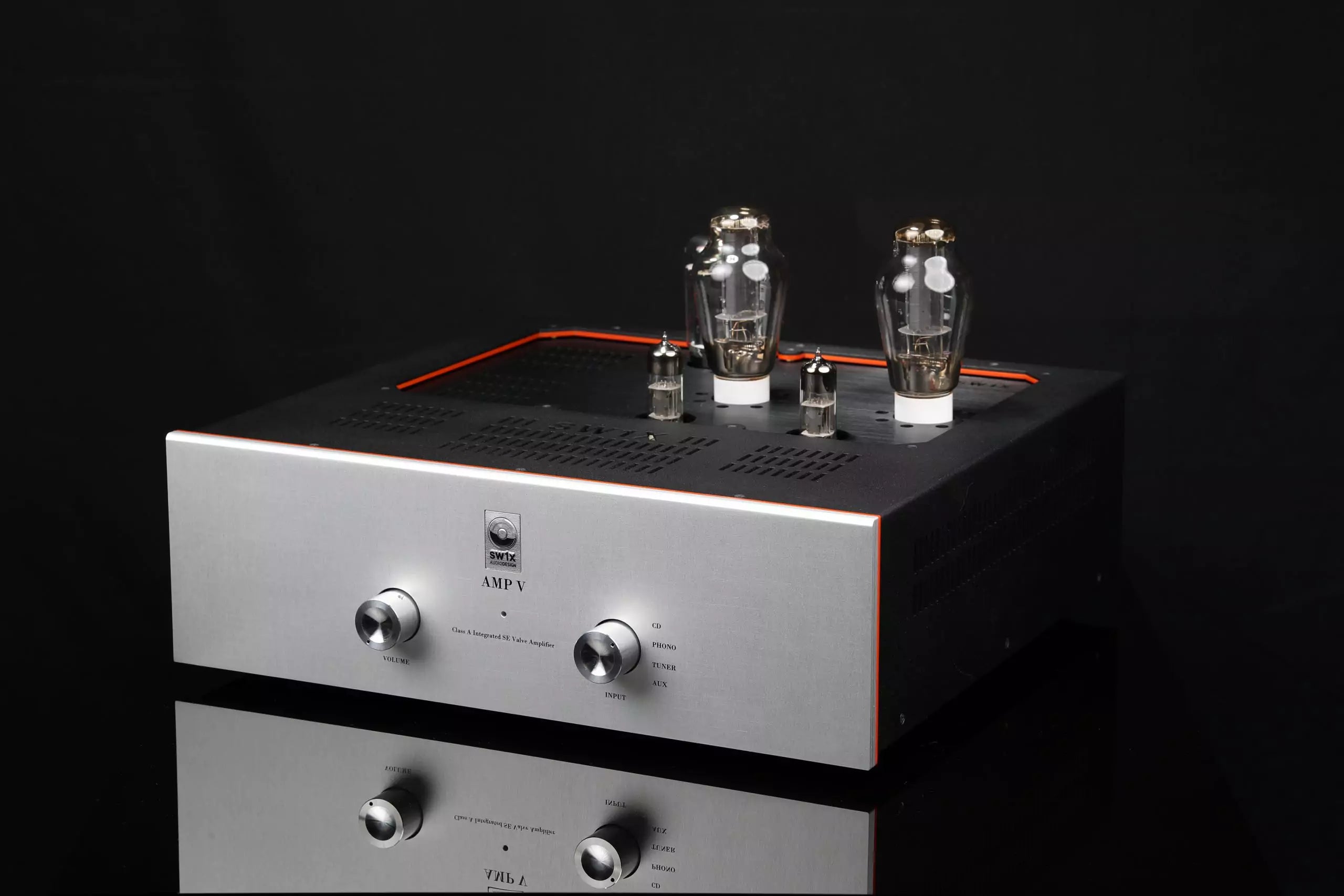

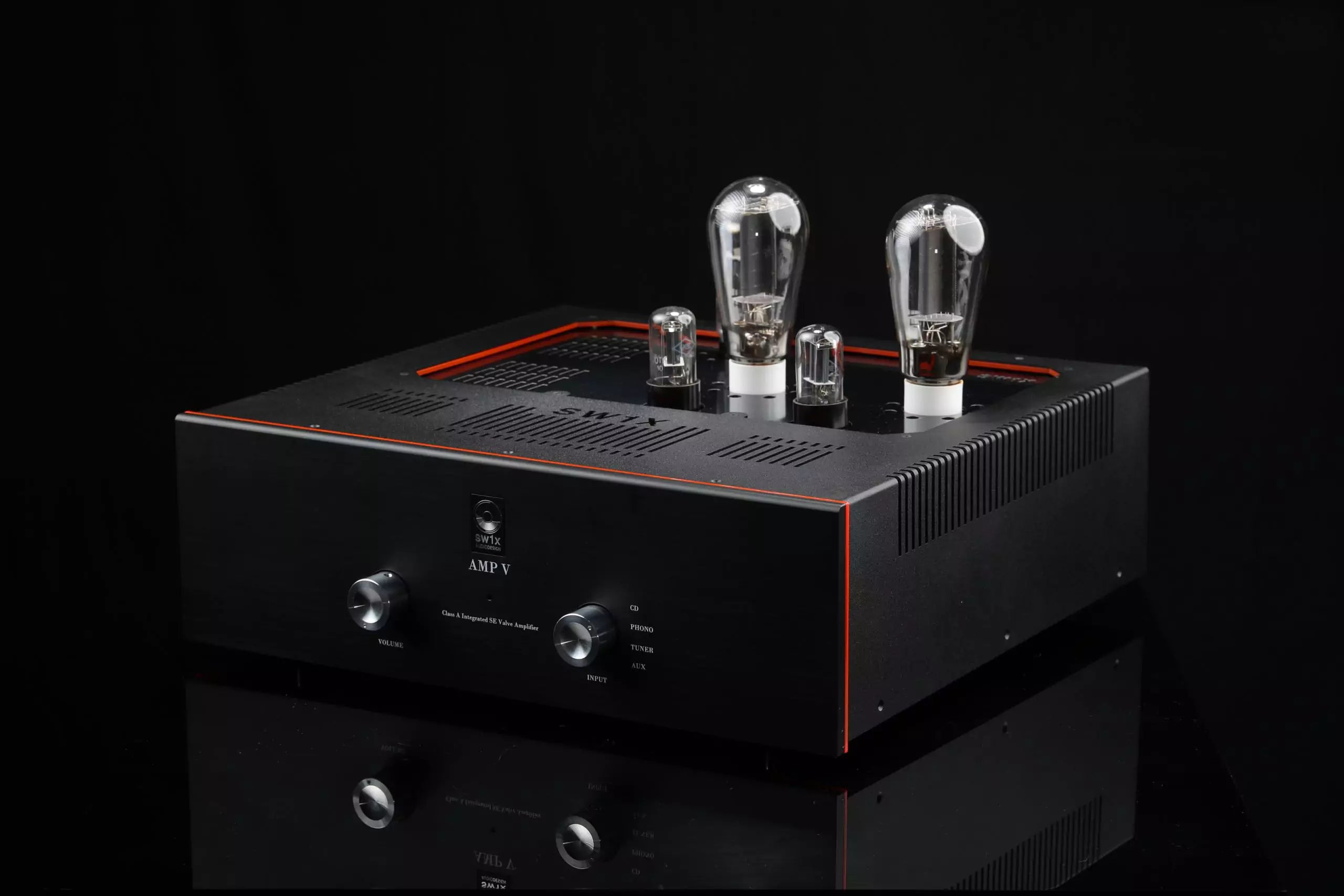

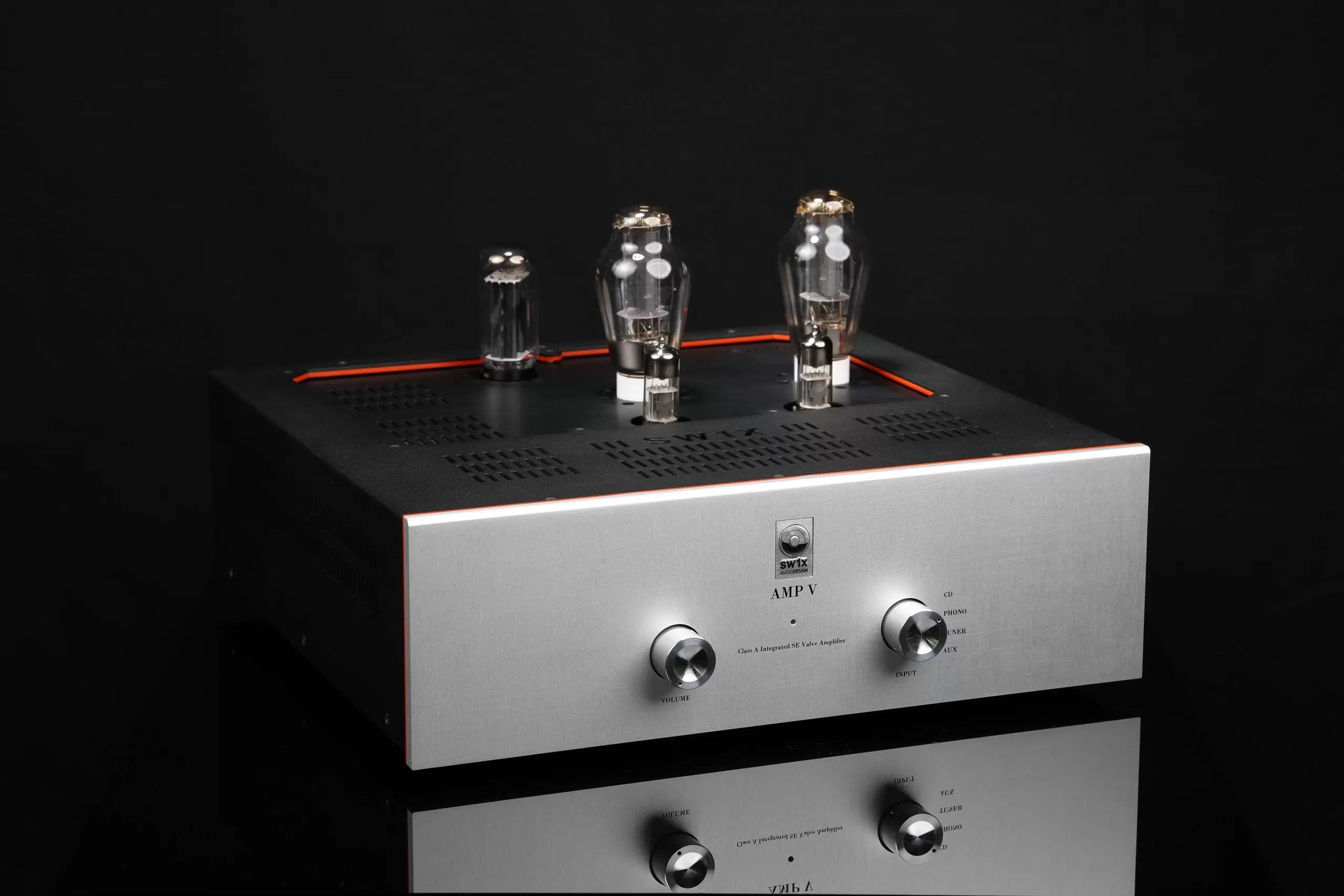

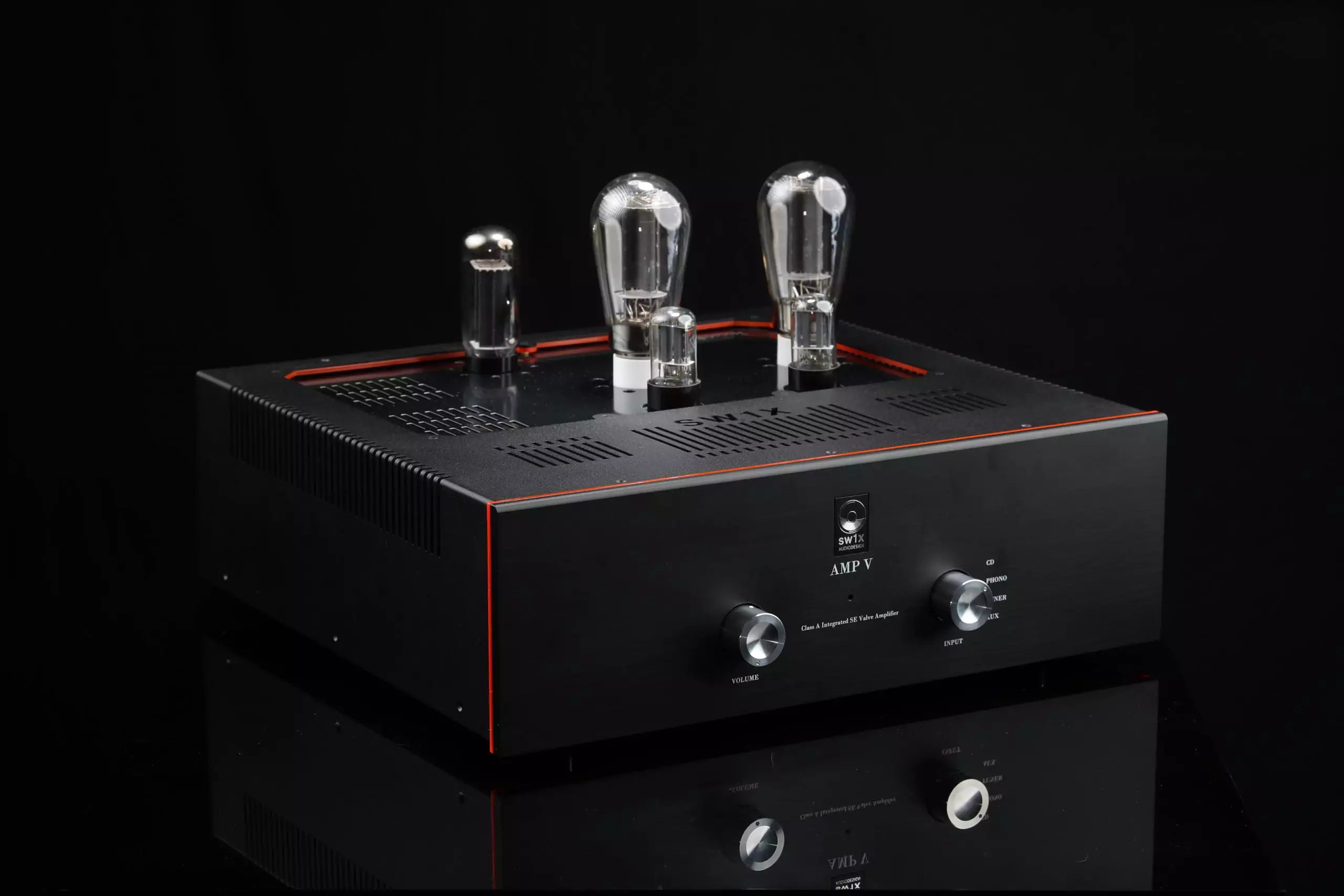

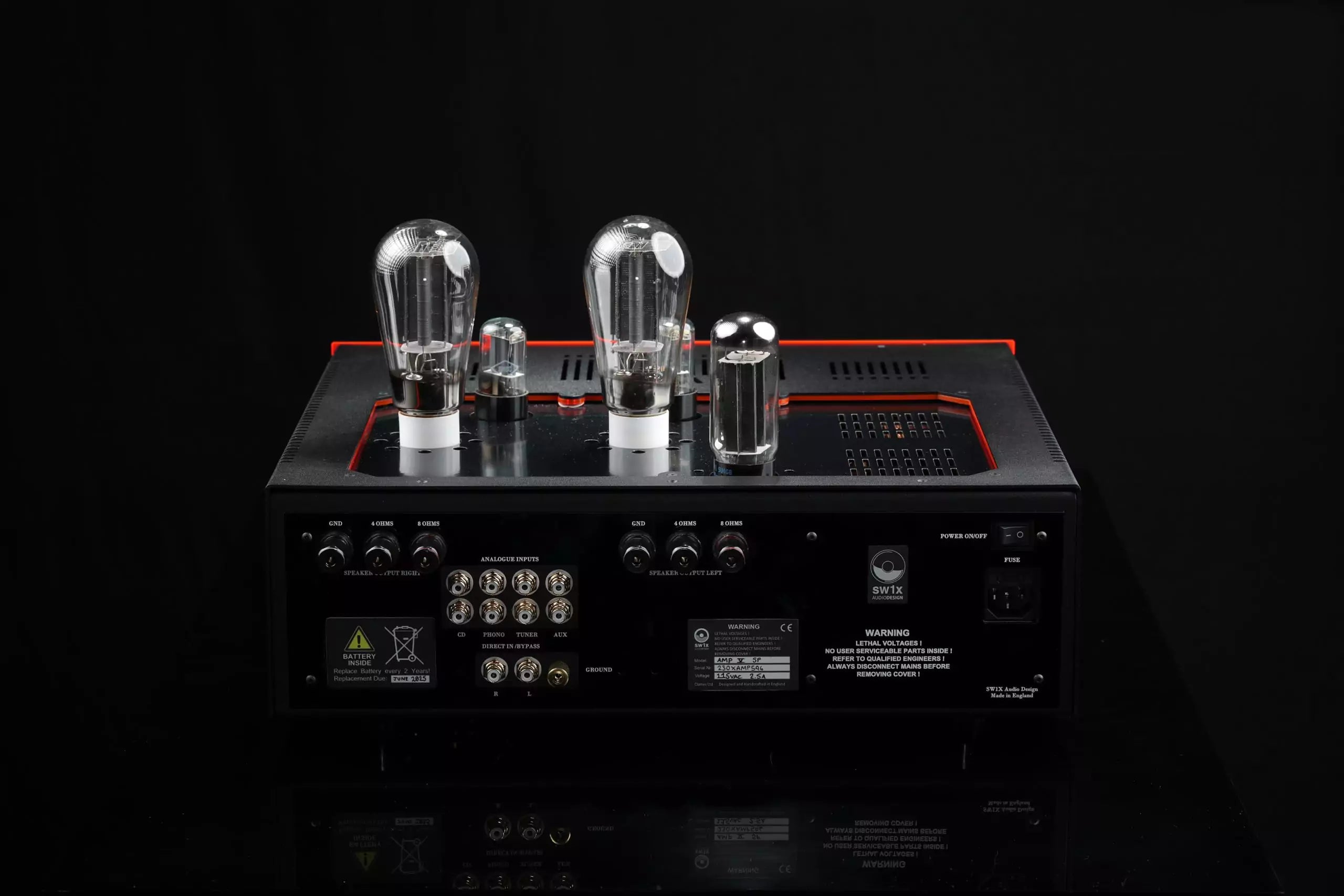

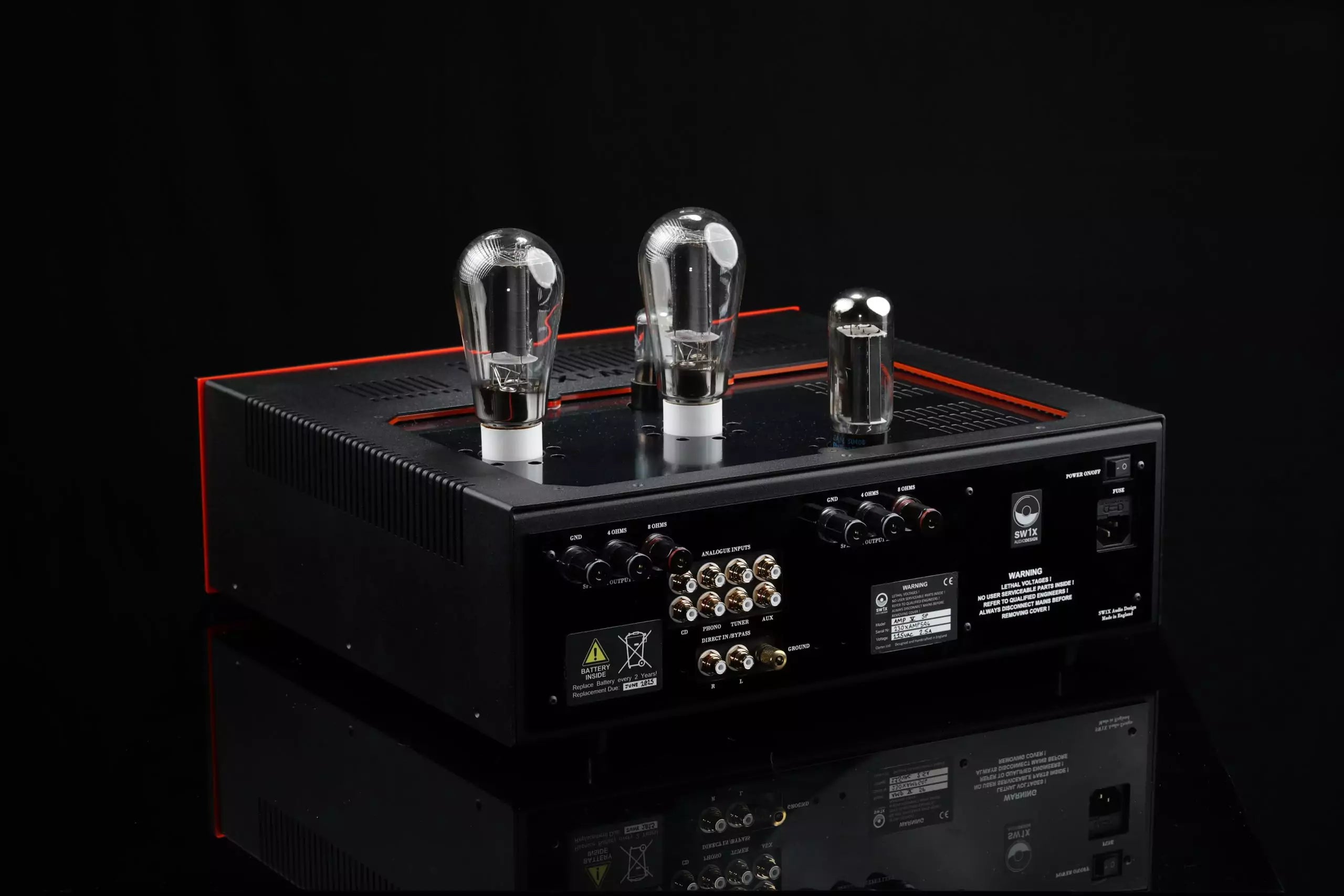

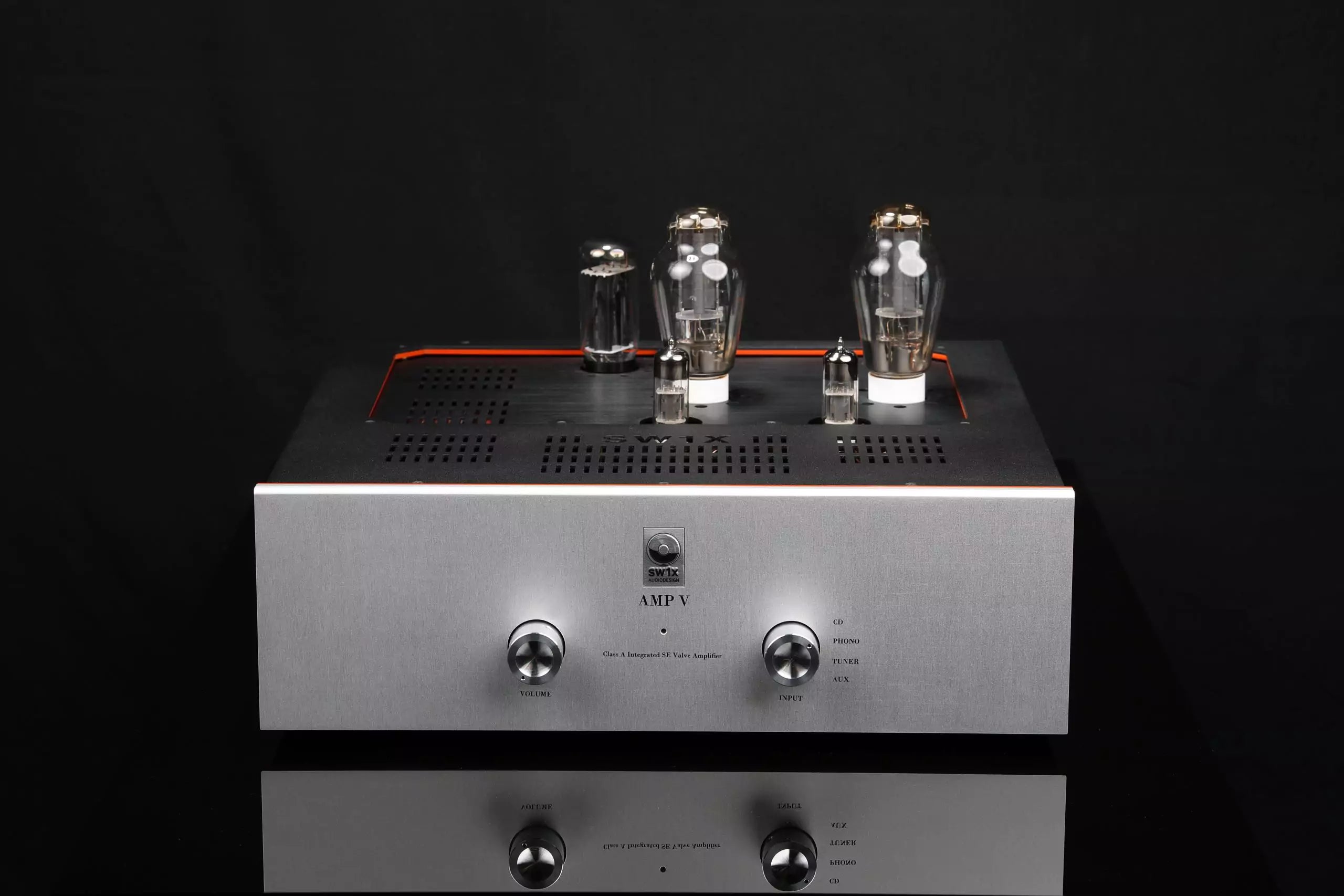

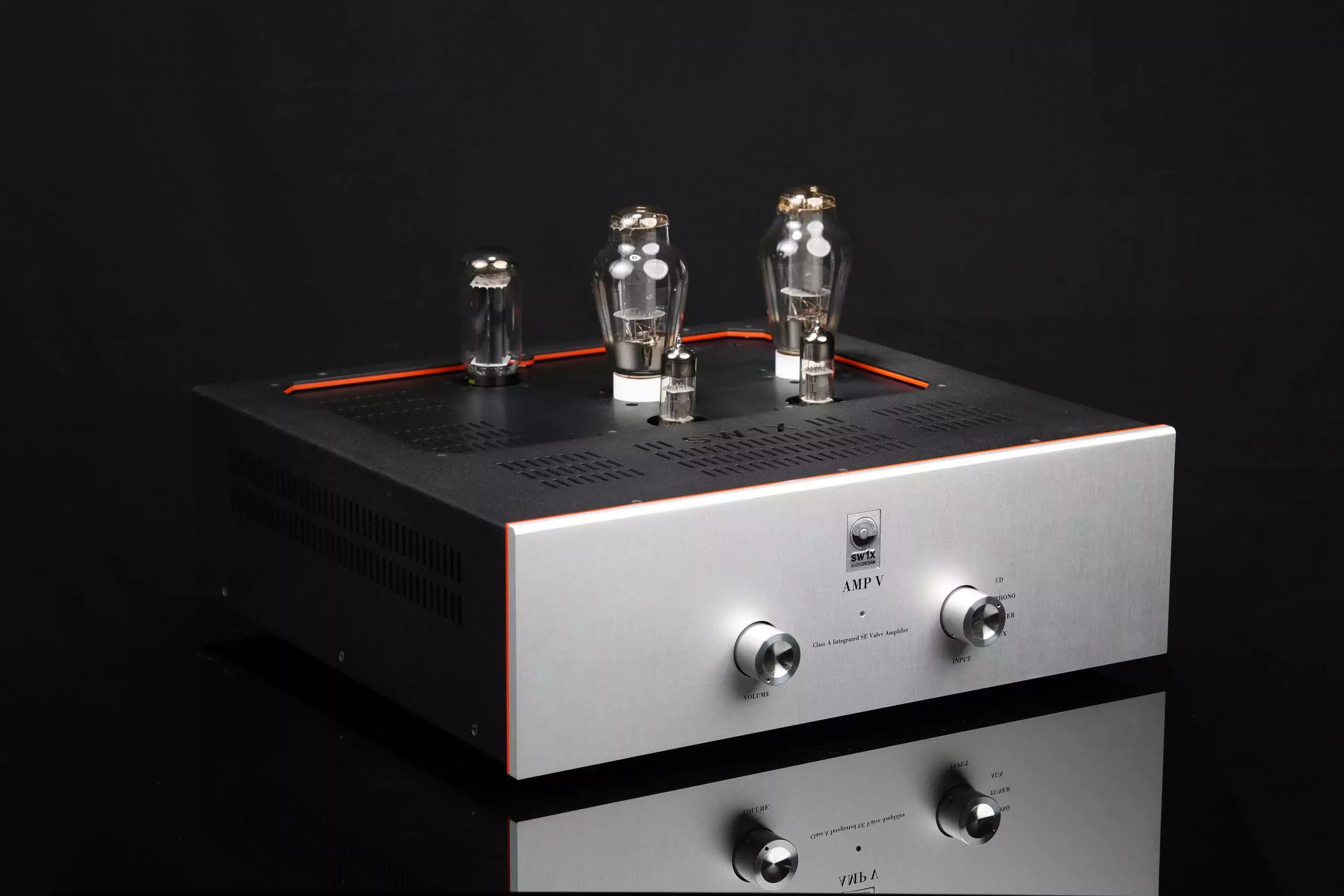

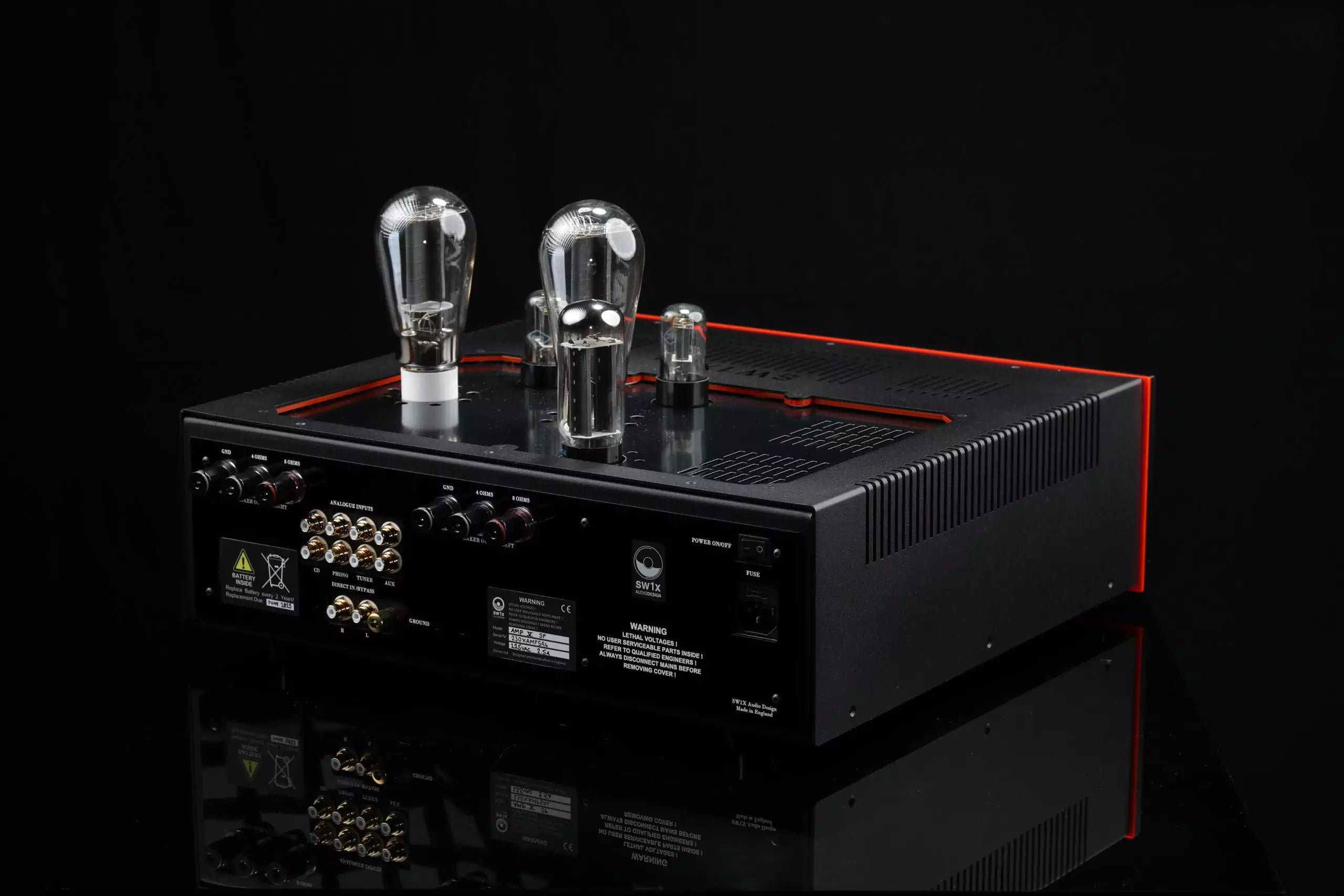

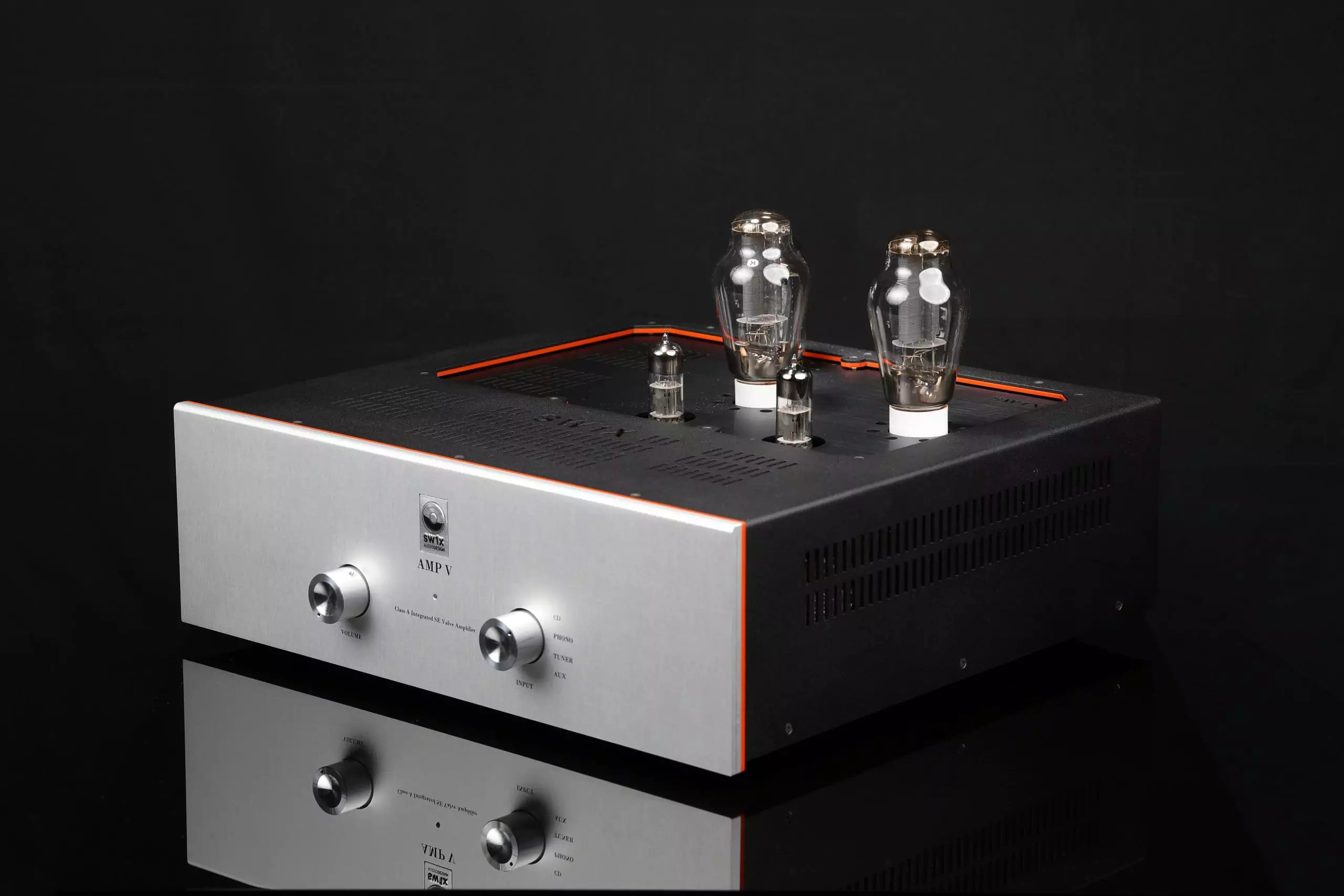

SW1X Amp V "Titan"
300B DHT Integrated Amplifier
AMP V is a 3 gain stage Power Amplifier coupled with a High Quality Pre-amplifier using our in house designed and in house made stepped attenuator volume control.
It is not only extremely musical but also powerful and in the same time refined sounding Integrated Amplifier.
The Directly Heated 300B Triodes at the output need no introduction. They are driven by equally powerful 6N6P/5687/E182CC driver tubes or by popular 6SN7 input/driver tubes to produce seemsless linear and balanced sound.
Available in different versions: Special and the limited Signature version with different power output transformer options (Permalloy or SHiB and UHiB) and all Copper or Copper/Silver windings
SW1X Audio Design™ AMP V Integrated Amplifier Features:
- Specially Selected and Harmonically Matched Component & Material Quality
- Single Ended, absolutely Zero NFB, Class A, Directly Heated Triode Valve Power Amplifier
- 2 x 6N6P/5687/E182CC or 6SN7 Triode driver/input Stage Valves driving the 2 x 300B DHT Valves
- 3 Amplification Gain Stage Design
- Hybrid Point 2 Point Hardwiring Technique for the most consistent production results
- Internally wired exclusively with our SW1X Magnum, Genesis and Opus conductors
- SW1X Audio Design™ Custom Designed Copper wound Super HiB DC Core (50 Watt) Signal Output Transformers
- Quasi Mono, Directly Heated Double Diode Valve Rectified B+ Power Supply
- SW1X Custom Design 24 Step Discrete Attentuator Volume Control
- Orient grain M6 EI core mains Transformers & Chokes
- Valve rectified Fixed Bias Power Supply
Tube Compliment: 2 x 6N6P or 6SN7, 2 x 300B, 1 x 5U4GB, 1 x 5Y3
AMP V is avaiable in 4 Versions with either Satin Silver or Matte Black front Panels
with a following output transformer (OPTs) specifications:
- Standard : SW1X Audio Design™ all Copper wound, orient grain M6 EI Core OPTs
- Special : SW1X Audio Design™ all Copper wound Super HiB DC Core OPTs
- Classic : SW1X Audio Design™ Copper/Silver Windings, Super HiB DC Core OPTs
- Signature : SW1X Audio Design™ Silver/Silver Windings, Super HiB DC Core OPTs
- Silver wound SW1X Audio Design™ Custom Designed Super HiB or Ultra HiB DC core Signal Output Transformers
- Fully Hardwired Tube Output Stage on the Bakelite Board
- Fine Silver wiring on the Input, Bakelite Board and Output
- Black Gate VK capacitors in the B+ power supply
- AN 2W non-magnetic Niobium resistors on a Hardwired Bakelite Board
- Super HiB double C-Core mains transformers
- Inter-stage signal decoupling capacitors: 1. Copper Foil in Oil or 2. Silver Foil capacitors
- AN 2W silver, non-magnetic, Tantalum resistors
