iFi Zen Dac


Price:
Sale price$199.00

Description

Cute, compact and stylish

This superb hi-res USB DAC/headphone amp delivers a level of specification and performance that punches above its super-affordable price tag.

Compact enough to use as a USB DAC/amp on your work desk with your much-loved headphones.

Stylish enough to use in your home system as a USB DAC. Just add your favourite active speakers or amp.


Zen DAC — DAC/headphone amplifier

DAC to the future

The ZEN DAC supports PCM and DXD to 32-bit/384kHz, DSD256 and MQA. DSD remains ‘bit-perfect’ thanks to the True Native Burr Brown chip design.

Our R&D maxes out the circuitry with bespoke, easy to install firmware to bring you the joyous musicality of hi-res. The ethereal music quality will leave you grinning ear to ear.


Brings balance (in more ways than one)

We’ve used a balanced design for the analogue stage – rare and not found at this price point. This makes it pretty special for the best sound quality. With super-low noise performance, it will remain quiet even in noisy situations such as yachts or RVs.

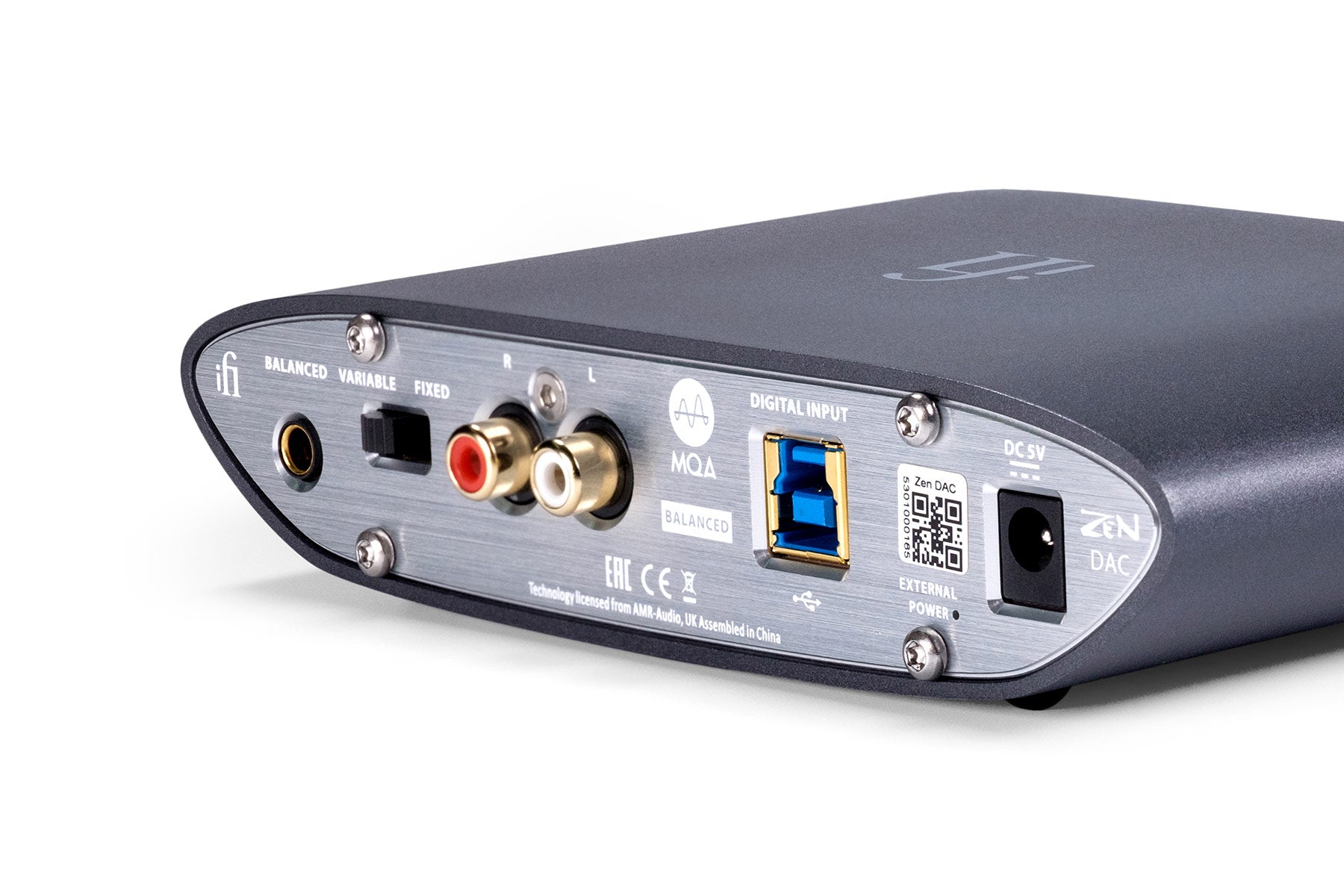

The ZEN DAC sports Balanced 4.4mm balanced outputs at both the front and back. On the front, there’s also the popular 6.3mm headphone socket. You get both headphone options.

Zen DAC — DAC/headphone amplifier

So flexible it almost does yoga

Switch effortlessly between ‘variable’ and ‘fixed’.

Set to ‘Variable,’ use the ZEN DAC as a pre-amp to feed a power amp or active speakers.

On ‘Fixed’ to bypass the volume control. Connect to an external pre-amp or integrated amp.



Power. Drive. Performance.

Our headphone amp has PowerMatch – switchable gain to perfectly match your headphones.

IEMs are high-sensitivity, Leave PowerMatch at its lower setting for hiss-free listening.

On/over-ear types with relatively low impedance require more oomph – press PowerMatch to increase the level of drive.

Zen DAC — DAC/headphone amplifier

Ace of Bass.

The ZEN DAC boasts TrueBass. This proprietary tech is a switchable ‘bass boost’ operating in the analogue domain. There’s no DSP with iFi gear.

TrueBass enhances the bass but does not muddy the mid-range. Perfect for use with IEMs or open-back headphones which often lose out on bass.

So, in the words of the great Eric Clapton and from the film Back to the Future, Heaven is One Step Away.

Go find your ZEN.

A fully-discrete and balanced amplifier audio circuit. The full symmetric dual-mono headphone amplifier with gold-plated 4.4mm balanced connection. Premium engineering is more expensive but lowers the noise floor to a whisper-quiet levels.

Check out the tech note for the details.

TrueBass® – delivers genuine bass with realistic depth and definition.

Everything from timpani to a bass guitar, to an electronic bassline, is conveyed with power and poise.

TDK C0G (Class 1 ceramic) capacitors offer high stability and low losses for resonant circuit applications.

Getting ever closer to the theoretical ideal of pure, frequency-constant capacitance, these capacitors reduce capacitor-induced distortion to vanishingly low levels.

They are pricey but are a perfect addition to our products.

The Burr-Brown True Native® chipset means file formats remain unchanged or ‘bit-perfect’. This means you are listening to music as the artist intended in the format in which it was recorded.

At iFi we use Burr Brown extensively in our products having selected it for its natural-sounding ‘musicality’ and True Native architecture. Our experience with this IC means we know how to make the most of it.

Hi-Res True Native® playback of all music formats from MP3 to DSD256, PCM384 and DXD384.

Listen to Master Quality Authenticated audio straight out of the box. Connect to Tidal Masters and check the option to stream MQA.

MQA is an award-winning audio technology that enables music fans to stream the original master recording into their home, car or on their mobile. In the words of Gilbert O’Sullivan, iconic Irish-born singer-songwriter, “The great thing about MQA is that it delivers the finesse that was there in the desk sound. It’s tremendous, it sounds really good.”

Our video tutorials on You Tube show you how.

Using Mac or Linux? Then check out our exclusive iFi firmware. Download ‘Limoncello’ 5.2A to unlock DoP256 for Mac/Linux.

Fancy adding the special GTO filter first introduced in our flagship DAC, the Pro iDSD? Use ‘Cookies and Cream’ 5.3C. More on the GTO filter here.

It is a superior method to the traditional single-ended circuit approach. Balanced circuits reduce noise and crosstalk. Less Interference – clearer sound.

You normally find this set-up in products at the higher end of the price spectrum such as the Pro iCAN Signature but iFi is now using this across its range to produce the best quality audio for all our customers.

Specifications

Input USB3.0 B Socket
(USB2.0 compatible)
Formats PCM (384/352.8/192/176.4/96/88.2/48/44.1kHz)
DSD (256/128/64), DXD(384/352.8kHz),
MQA (Decoder)
DAC Bit-Perfect DSD & DXD DAC by Burr Brown

Line Section

Output Audio RCA (SE) — 2.1V fixed
1V / 3.3V max. (variable)
4.4mm (BAL) — 4.2V fixed
2V / 6.2V max. (variable)
Zout <= 200 Ohm (BAL)
<= 100 Ohm (SE)
SNR < -116dB(A) @ 0dBFS (BAL/SE)
DNR > 116dB(A) @ -60dBFS (BAL/SE)
THD+N < 0.0015% @ 0dBFS (BAL/SE)

Headphone Section

Output Power (@1% THD) 4.4mm (BAL)
330mW@32 Ohm; 6.6V@600 Ohm;
16 Ohm - 600 Ohm Headphone

6.3mm S-BAL (SE)
230mW@32 Ohm; 3.3V@600 Ohm
16 Ohm - 600 Ohm Headphone

Note: Using 5v power. If powered from USB, power output may vary.
Output Impedance < 1 Ω (BAL/SE)
THD & N < 0.005% (125mW @ 32R)
SNR > 113dBA (6.2V BAL/3.3V SE)
Power consumption < 1.5W via USB power OR 5v DC (power supply not included)
Dimensions 160(w) x 117(d) x 35(h) mm
6.3" x 4.6" x 1.4"
Weight (Gross) 0.8 kg (1.8 lbs)
Warranty period 12 months
