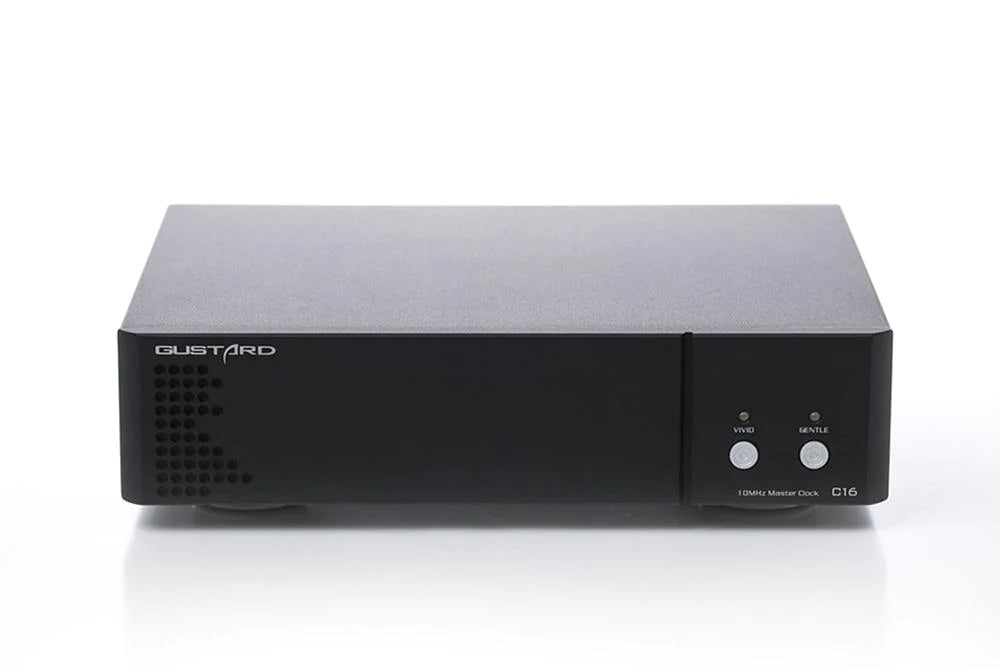

Gustard C16 10M Audio Clock

Costa's C16 clock technology features:

• C16 is a 10M high precision low noise clock generator;
• The new custom model SC cut OCXO, which is a mature product line of the crystal industry, has stable quality;
• True low jitter design with low near-end phase noise. In fact, the measured performance is more than two orders of magnitude higher than the traditional SPXO femtosecond crystal oscillator;
• With six BNC interface outputs (3+3), it is divided into two output types: direct output and isolated output.
• With square wave output mode, compatibility with back-end devices is better than with sine wave output
• Optimized objective performance and subjective listening in the R&D process for the Gothic U16 and future audio digital source devices
• A good price-performance OCXO is used to achieve a good balance between performance and price. C16 has both subjective and objective audio performance far beyond the traditional SPXO femtosecond crystal.

Other parameters:

• Output amplitude: 7dBm @50 Ohm
• AC power supply: AC 115V/230V 50/60Hz
• Machine power consumption: <15W
• Body size: width 220mm* height 50mm* depth 170mm (excluding protruding parts)
• Packing size: width 285mm* height 85mm* depth 270mm
• Weight: 2.5Kg (including packaging)
