Burson Playmate 2
More than a Facelift
Playmate 2 is more than a pretty new outfit. It is a complete transformation from the already famous P1.
Beautiful, Cool, with a different Touch

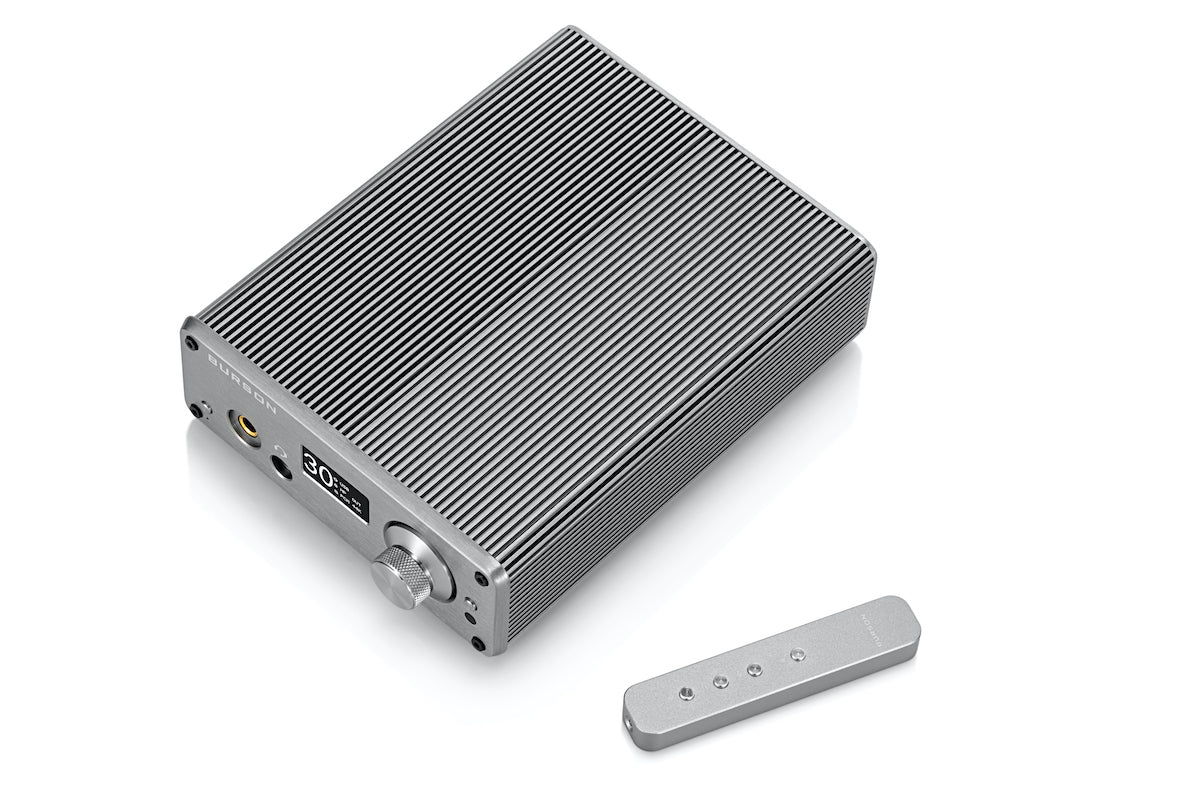

Touch and feel the Playmate 2 then our competition. The difference will be striking. Precision machined, this beautiful aluminium enclosure is also an unified heat-sink, keeping the Class-A Playmate running cool while looking hot.
Smart and Handy
SABRE32/ESS9038Q2M DAC, Xmos USB Input. They are the most advanced digital processors money can buy. DSD512 and 32/768khz, easy!
Powerful and Quiet
Class-A and 3Wpc. Two levels of power control, each with 100 volume steps. 110db IEM, no worries. 70db planner magnetic, no sweat.
Playmate Your Way
Opamp rolling to tune its sound. With four detachable DIP sockets, Playmate 2 is ready when you are.
USB-C Back to Back
With competitors staying in the USB-B age, Playmate 2 warps into the USB-C future. No more dongles, no more converters. Phones, tablets, Windows or Mac, Plug-n-play!
Powers Inequality
Proprietary to Burson. Our MCPS charges the Playmate at 170 thousand times per second while our competitors do 50 per second. Power, dynamics, micro-details, our 3Watt sounds like their 10Watt.
Go to your Roon!
Roon is the most popular streaming and HD music management platform for audiophiles. Burson is part of this fantastic ecosystem.
Our Playmate 2 are Roon Tested, and they seamlessly connect with any 3rd party Roon Ready audio streamers.
Specifications
Measurement | Package Content | ||
Input impedance: | 38 KOhms | Burson Playmate (P-171) | IC Opamps for warranty diagnostic use. |
Frequency response: | ± 1 dB 0 – 35Khz | Remote Control (optional) | hex key |
THD: | <0.002% | Power Supply | 100-240V AC |
Output impedance (Head Amp): | <2 Ohm | ||
Output impedance (Pre Out): | 15 Ohm | ||
General | |||
Inputs: | USB, Toslink | Weight: | app. 3Kg |
Outputs: | RCA Pre-Amp / Headphone Jack | Dimensions: | 190mm x 150dimm x 60mm |
Impedance (Headphone Jack) | Power | Signal to Noise Ratio | Separation |
16 Ohm | 3.5W | 96db | 99% |
32 Ohm | 2.5W | 97db | 99% |
100 Ohm | 600mW | 98db | 99% |
150 Ohm | 400mW | 96db | 99% |
300 Ohm | 150mW | 95db | 99.50% |
DAC Spec | XMOS USB Spec | ||
Channel Separation: | 128 dB @ 1KHz, 121 dB @ 20KHz | Desktop OS: | Win XP, 7, 8, 10 Mac OSX |
THD+N: | 0.0018% @ 1KHz, 0dBFS | Mobile OS: | iOS* & Android (OTG support) |
PCM & DXD Support: | PCM ≤ 768kHz up to 32bits | ||
Native DSD: | Native DSD 64 / 128 / 256 / 512 | ||
DSD over PCM: | DoP64 / DoP128 / DoP256 | ||
Asynchronous Isochronous |
