Description

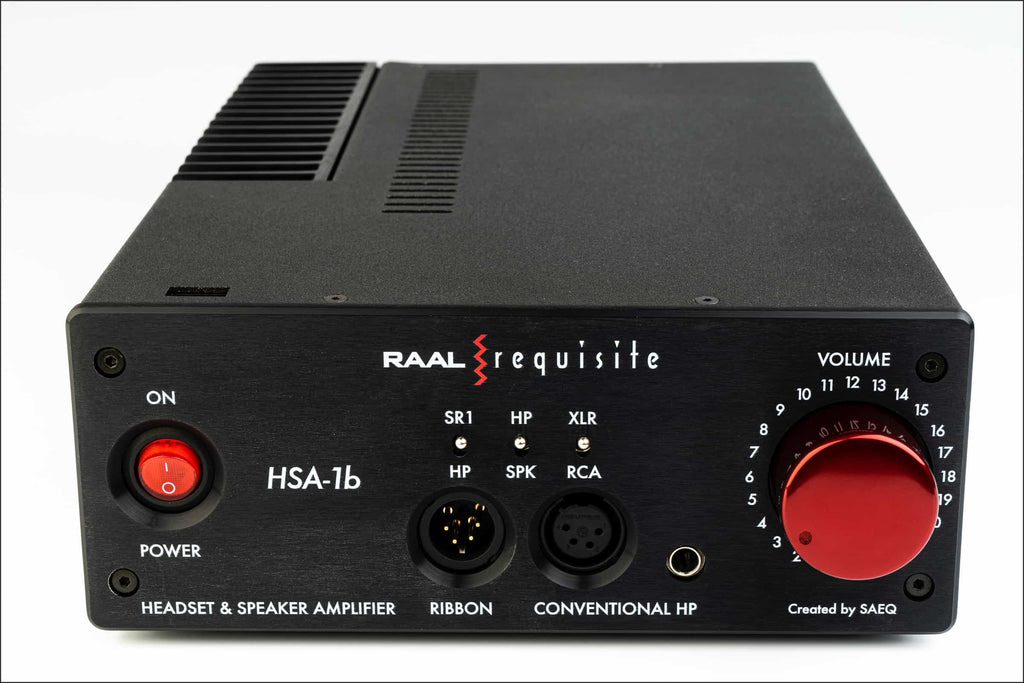

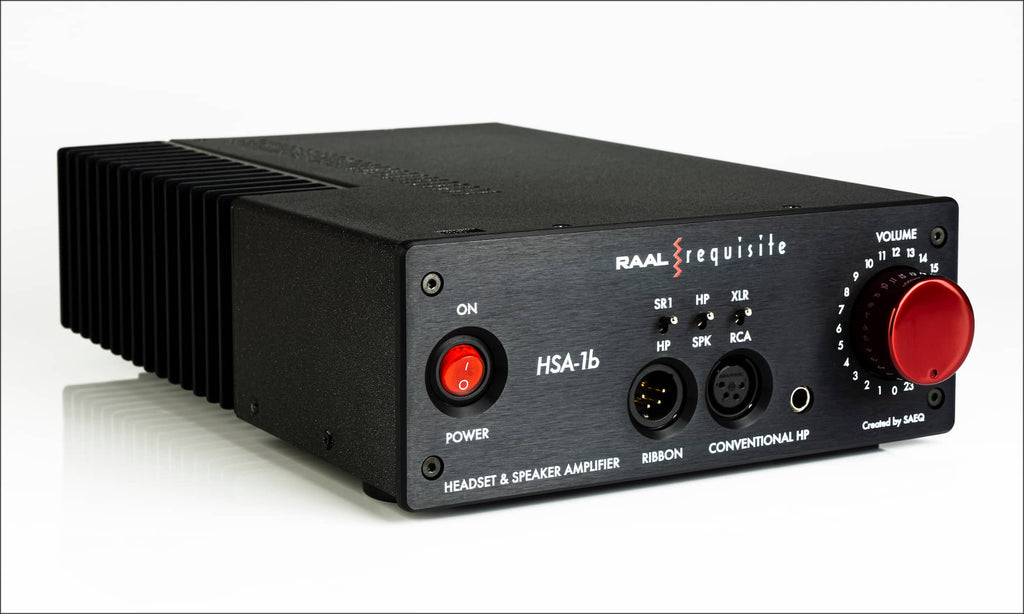

RAAL HSA-1B Headphone and Speaker Amplifier
Direct drive amplifier for True-Ribbon Earfield Monitor headphones, speakers, conventional dynamic, and planar magnet headphones.
Outputs: Drive the SR-1a or 1b, CA-1A, traditional headphones, or speakers.
Inputs: Unbalanced, Single-Ended RCA. True-Balanced, XLR.
Precision 24-step attenuator for rock-solid left/right balance at all listening levels.
Headphone & Speaker Amplifier.
Direct drive amplifier for True-Ribbon Earfield Monitor headphones, speakers, conventional dynamic, and planar magnetic headphones.
Switch Drive.
Drive the SR1a, conventional headphones, or speakers.
HSA-1b - Headphone/Speaker Amplifier Specs
| Load Impedance: | 0.3 Ohm – infinity |
| Output Power (one chanel driven): | 10W /8Ω, 20W/4Ω, 40W/2Ω, 55W/1Ω @ 1khz/sine |
| Ribbon & Headphones Drive: | RAAL-requisite SR-1a, Dynamic & Planar Magnetic |
| Speaker Drive: | 8Ω, 4Ω, & 2Ω Loads |
| Freq. Response: | 100mv/ in/sin. 15hz – 500kHz |
| Power Bandwidth: | 100kHz (-3db) at 1khz |
| Distortion: | < 0,5% at 1khz |
| Signal to Noise Ratio: | Better than 90dB |
| Input Impedance: | 40 kOhm |
| Sensitivity: | 0,5V /40kOhm |
| Input: | IN1- 2 RCA, IN2 – 2 XLR |
| Max Power Consumption: | 150W , without signal 25W |
| Dimensions: | H 90, W 218, D 320mm (3.54 x 8.58 x 12.60 inches) |
| Weight: | 5,3kg (11.68 pounds) |
| Price: | $4,500 USD |

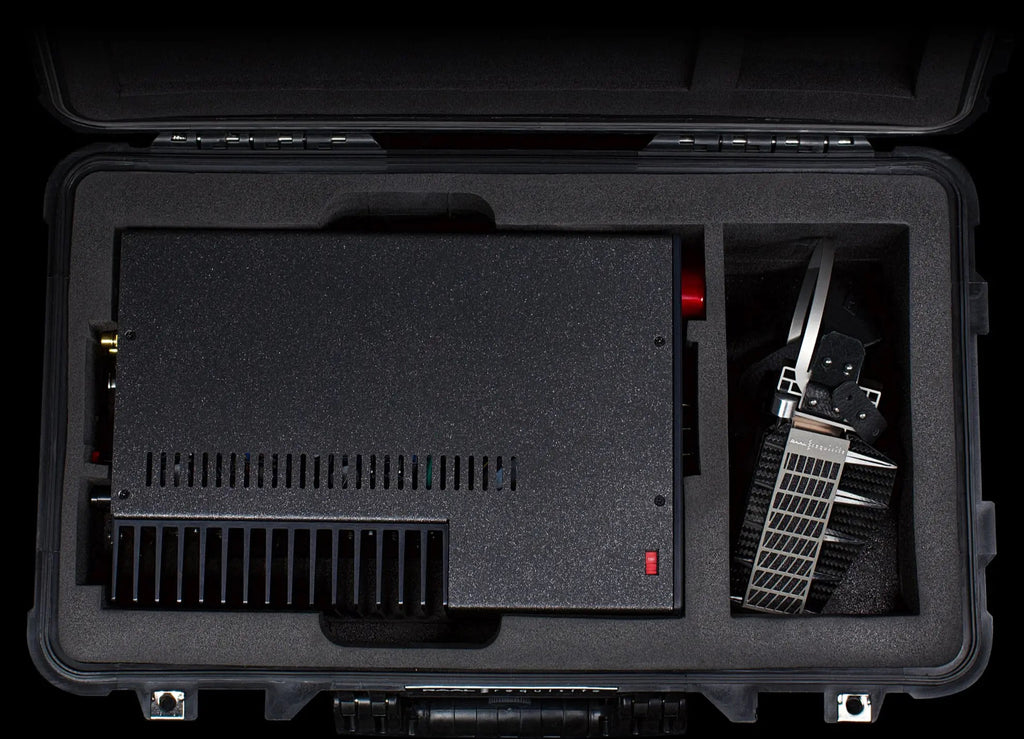

| Optional: | Waterproof Flight Case w/Handle & Casters $350 USD |
| Selectable Mains Volatge: | 115/230V (100V available for Japan) |
