Description
Moondrop KATO and FiiO BTR7
Its really is hard to say a bad word about this combo. You get so much bang for your buck in an amazingly portable package. For your "walking the dog, riding the train, at the office" perfect setup look no further. This even carries weight for those looking for a standalone setup that just so happens to be portable.

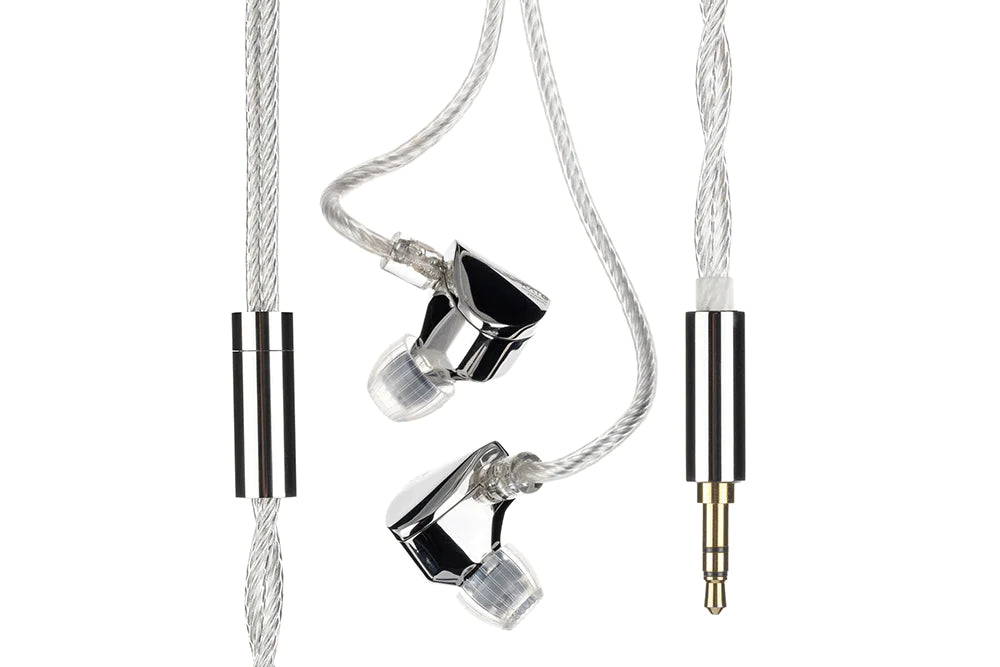

KATO Specifications
Driver - 10mm-ULT dynamic driver
Diaphragm - the 3rd generation DLC composite diaphragm
Socket - 0.78-2Pin sunken design
Housing - MIM stainless steel
Nozzle - stainless steel *2, brass *2
Cable plug - 3.5mm stereo single-ended plug
Frequency response range - 10Hz-45kHz (IEC61094, Free Field)
Effective frequency response range - 20Hz-20kHz (IEC60318-4, -3dB)
Impedance - 32Ω±15% (@1KHz)
Sensitivity - 123dB/Nrms (@1KHz)
Distortion - < 0.15% (@1khz, AES17 20khz, A-weight)

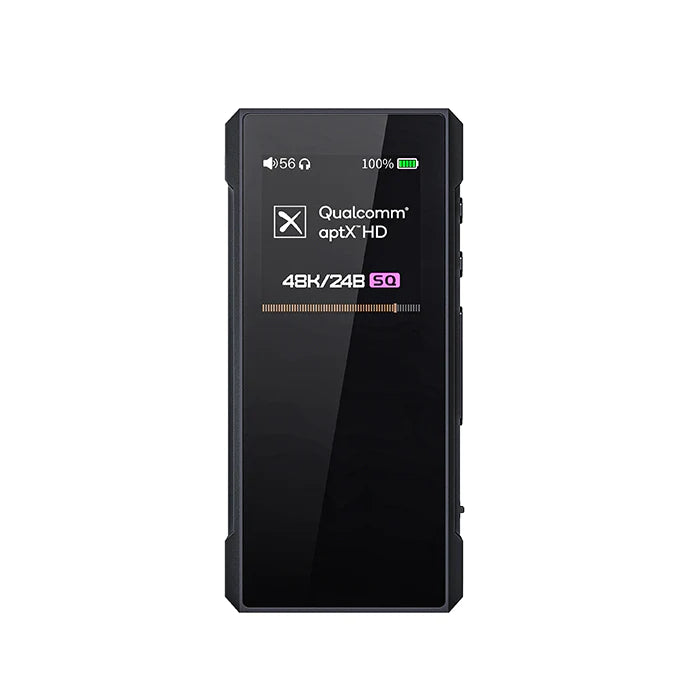

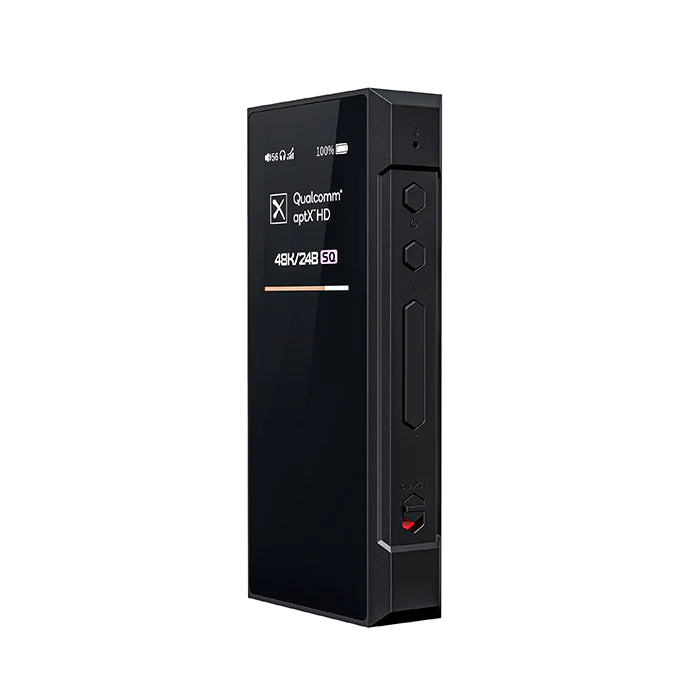

FiiO BTR7 Specifications
|
Weight |
About 68g |
Dimensions |
About 39.6x83.6x14.6mm |
|
Audio Input |
Bluetooth connection (Bluetooth 5.1supported) |
Supported Audio Format(s) |
AAC/SBC/aptX/aptX LL/aptX adaptive/aptX HD/LDAC |
|
Driver-free mode（Switch mode） |
Supported |
In-vehicle mode |
Supported |
|
NFC |
/ |
Mic Function |
Yes （Only supports voice calls under Bluetooth mode. Built-in omnidirectional microphone. Only supports the microphone of the CTIA standard headphones.） |
|

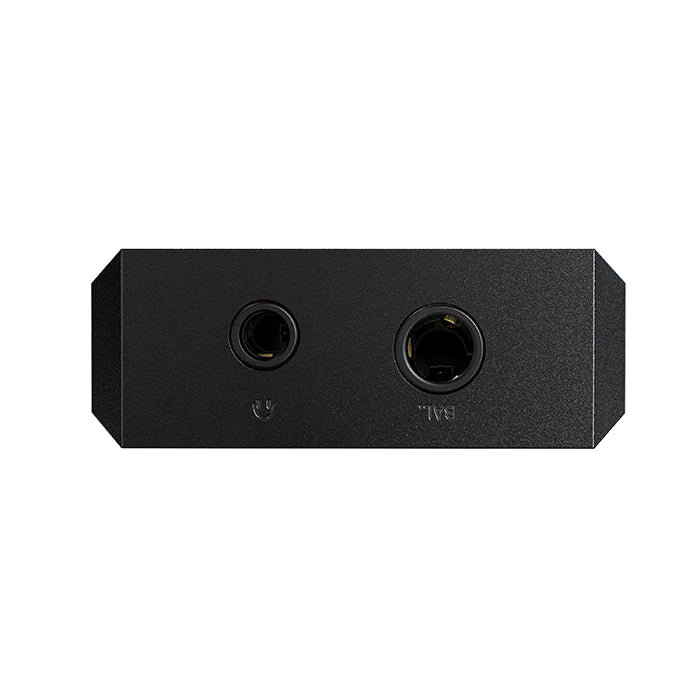

Single-ended Headphone Output |
3.5 mm stereo port |
USB Port |
TYPE C (USB2.0) |
|
Balanced Headphone Output |
4.4mm port |
Recommended headphone impedance |
16~100Ω（PO） |
|
16~150Ω（BAL） |
|||
|
Channel Balance |
≤0.2 dB |
Gain |
Supported(High/Low) |
|
Volume Control |
Side buttons |
Status indication |
Codec, charging status, battery level, volume, sampling rate, menu |
|
APP interconnection |
Supports setting through App |
Bluetooth Codes Display |
Supported |
|
Charging Time |
Wired charging time: ≤1.5 hours Wireless charging time: ≤3 hours |
Power Input |
Recommend DC 5V 2A |
|
Battery Capacity |
880 mAh |
Frequency Response |
PO 20Hz~50kHz：±＜0.5dB |
|
Output Power |
PO about 165mW（16Ω loaded） | PO 20Hz~20KHz：±＜0.1dB | |
| PO about 160mW（32Ω loaded） | |||
| PO about 18mW（300Ω loaded） | |||
|
BAL about 235mW（16Ω loaded） |
BAL 20Hz~50kHz：±＜0.5dB |
||
|
BAL 20Hz~20KHz：±＜0.1dB |
|||
| BAL about 320mW（32Ω loaded） | |||
| BAL about 40mW（300Ω loaded） | |||
|
THD+N |
＜0.00055%(1kHz/-6dB@32Ω) |
Output Impedance |
PO≤＜1.2Ω（32Ω loaded） |
|
＜0.00048%(1kHz/-2dB@32Ω) |
BAL＜2.8Ω（32Ω loaded） |
||
|
Noise Floor |
PO＜3uV（dbA） |
Amplitude |
PO：2.3Vrms |
|
BAL: 3.2Vrms |
|||
|
BAL＜5.5uV(dbA） |
|||
|
SNR |
PO≥≥118dB (dbA)(32Ω dbA) |
Crosstalk |
PO≥75dB |
|
BAL≥107dB |
|||
|
BAL≥115dB (dbA)(32Ω dbA) |
|||
|
Sampling Rate Supported Up to |
384kHz/32bit（USB DAC） |
DSD Support (USB IN) |
384KHz 32bit/ DSD256 |
|
hardware scheme |
DAC: ES9219C *2，USB: XMOS XU208，AMP：THX_AAA_28*2 |
Accessories |
Standard version: Type-C USB cable*1, Type-C to Type-C data cable*1, Leather case*1, Manual*1, Warranty card*1 |
|
Apple Deluxe Edition: Charging cable, back clip, manual, |
