This is how the world was meant to sound.
ARCHITECTURE OF THE ISODYNAMIC® HYBRID ARRAY DRIVER
Fiberglass infused ABS
RINARO ISOPLANAR® DIAPHRAGM
Weighing only 0.16 g while
having 4650 mm² of active area.
HYBRID MAGNET ARRAY
Symmetrically placed on each side of the diaphragm, our neodymium magnets are specifically arranged into a Hybrid Array to create efficient Isodynamic magnetic field required for a uniform activation across the whole diaphragm surface.
HYBRID ARRAY DRIVER ADVANTAGES
Combines two independently shaped voice coils within the same diaphragm delivering more selective acoustic performance to the various areas within the structure of the ear.
Total harmonic distortion (THD) measures under 0.1% in the whole frequency range
Reduced driver weight designed to create a headphone that offers prolonged listening sessions
Ergonomically shaped driver structure with an increased active area
Upper-frequency limit of audio reproduction is 110,000 Hz
100db@1mw/1kHz High performance without needing amplification
PATENT PENDING ISODYNAMIC HYBRID ARRAY DRIVER
World's first in planar magnetic headphones
Over 30 years of research and development have led to the creation of the first Isodynamic Hybrid Array driver. Meze Audio have collaborated with Rinaro to create a new standard in planar magnetic audio, the resulting technology being one of the lightest and most advanced planar magnetic drivers on the market.
The Empyrean Driver combines individual switchback and spiral-shaped voice coils, their unique shapes allowing sound to be targeted with more accuracy around the natural form of the ear. This unique combination generates an increased exposure of direct sound wave frequencies over the 10kHz range and improves imaging and localization by decreasing the impact of shortwave time delays caused by diffused field reflections.
AUDIBLE BENEFITS OF A DUAL DRIVEN SYSTEM
One of the problems with conventional planar magnetic arrays is coming from reflected signals entering the ear canal with different time delays, thereby worsening the focus of 3D sound imaging.
Combining different voice coil configurations makes it possible to create a better sound intensity distribution across the sound wavefront at high frequencies when directed at the auricle and ear canal.
ISOPLANAR® DIAPHRAGM MATERIAL
The diaphragm is manufactured from a custom developed isotropic thermally stabilized polymer with a conductive layer. Through unique processing methods, an ultralight yet rigid diaphragm has been achieved.
The switchback coil is more efficient at reproducing lower frequencies and is positioned in the upper part of the driver.
The spiral coil is more efficient at reproducing middle-high frequencies and is positioned directly over the ear canal enabling more direct sound waves to enter the ear without any time delays.
AN ERGONOMIC APPROACH LEADS TO A NEW WAY OF THINKING
To create an audiophile headphone that is powerful yet light the driver needed to maximize power output while reducing weight as much as possible.
Weight was minimized by optimizing a magnet structure around an ovoid shape that fits the ear more closely. Power output was increased through the use of a completely bespoke coil and magnet array design that optimized the active usable area of the driver within its ovoid shape.
ISOMAGNETIC® EARCUP TO EARPAD COUPLING TECHNOLOGY
An innovative feature is the Isomagnetic® ear cup attachment which utilizes the demagnetizing field generated by the driver to hold the ear cup in place whilst also redirecting the magnetic field back into the driver and improving driver efficiency.
Magnetic field shielding
The ferromagnetic ear pads decrease the magnetic stray field affecting the listeners head.
Increase in driver efficiency
Patented ferromagnetic plates channel the magnetic field back into the driver, increasing output.
Invisible locking system
Innovative use of the magnetic field of the drivers to fix the earcups in place.
STRAY FIELD REDUCTION FROM ISOMAGNETIC® PLATE COUPLING
Patented ferromagnetic plates channel the demagnetizing field back into the driver increasing efficiency by 1db or 12% and deflect 95% of stray fields away from the head.
ISODYNAMIC DRIVER MANUFACTURED BY RINARO
Each driver has been hand assembled and tested in an industrial facility in Ukraine.
PRESSURE DISTRIBUTION WINGS
Suspension wings increase the leather headrest’s contact surface area with your head and relieve uncomfortable pressure points, offering additional comfort, even when used for a longer period of time.
This revolutionary patent pending concept sets a new standard in combining
true natural sound with the enjoyment of wearing
your favorite headphone for hours on end.
LIGHTWEIGHT CARBON / ALUMINIUM SKELETON
CARBON FIBER HEADBAND
SCULPTED ALUMINIUM SKELETON
CNC milling time: ≈20 hours.
High precision CNC sculpted chassis,
milled from a single piece of
Weight: ≈ 430 g
CNC MILLED ALUMINUM GRILL
Ensures a natural sound transparency and is a work of art in its own right.
DESIGNED AND ENGINEERED IN BAIA MARE, ROMANIA
For the audiophiles who want to hear how 30 years of progression sound like, Empyrean pairs the advances in audio reproduction with a headphone chassis that delivers extended hours of listening pleasure.
We carefully hand assemble each headphone in our facilities in Baia Mare, Romania.
A core belief of Meze is to create products that last. The Empyrean is no different: from the replaceable earpads to the high-performance materials used, every part on the headphone chassis is available to be serviced and disassembled by our skilled team.

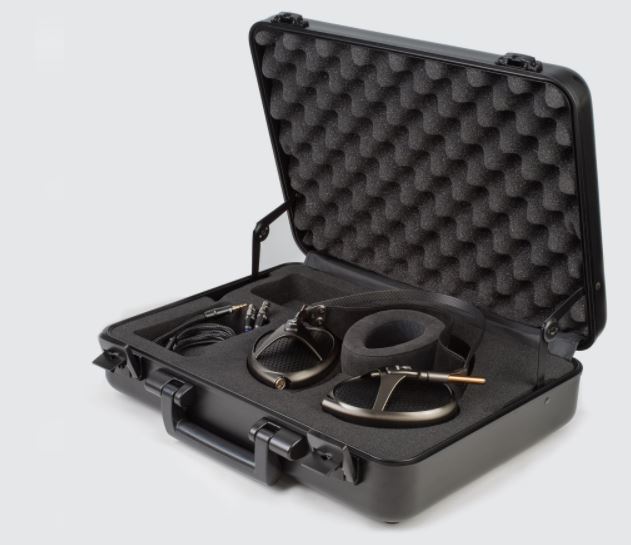

• Case: High-strength aluminum suitcase with foam inserts
• Two sets of earpads included: one real leather, one Alcantara
• Cable options:
- 2.5m OFC cable, 4pin mini XLR plugs ending with 6.3 jack connector
- 1.2m OFC cable, 4pin mini XLR plugs ending with 3.5 jack connector
- 2.5m OFC cable, 4pin mini XLR plugs ending with 4 pin XLR connector
*Vegan option available upon request.
EMPYREAN TECHNICAL SPECIFICATIONS
- Driver Type
- Rinaro Isodynamic Hybrid Array
- Operating Principle
- Ear Coupling
- Frequency Response
- 4 - 110,000 Hz
- 31,6 Ω
- Nominal SPL
- 100 dB (1 mW / 1 kHz)
- Maximum SPL
- > 130 dB
- Total Harmonic Distortion (THD)
- < 0.1%
- ~ 430 g
MZ3 DRIVER SPECIFICATIONS
• PHYSICAL •
- Geometrical Shape
- 102 mm x 73 mm
- 82 g
- Fiberglass Infused ABS
• DIAPHRAGM •
- Rinaro ISOPLANAR®
- Active Area
- 4650 mm2
- 0.16 g
- Acoustic Mass
- 10.7 kg/m4
- Lower Frequency Limit
- 4 Hz
- Upper-Frequency Limit
- 110.000 Hz
• MAGNET ARRAY •
- 75 mm x 49 mm
- Magnetic Flux
- 0.35 T
WARRANTY PERIOD: 2 YEARS
Rinaro, Isoplanar, Isomagnetic are the registered trademarks of Rinaro Isodynamics Limited.
