IsoTek Evo3 Corvus

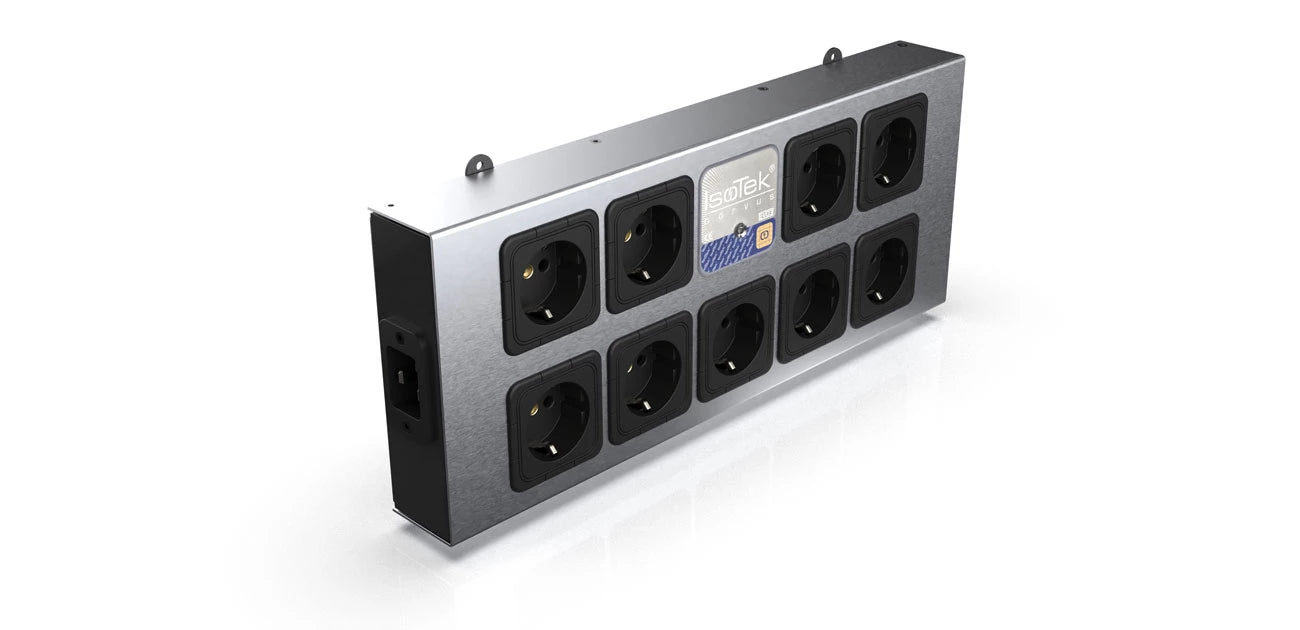

EVO3 Corvus is an evolution of IsoTek’s award winning EVO3 Polaris design, reconfigured to feature nine output sockets with increased wattage. It is a cost effective upgrade to any audio or audio-visual system, delivering improved performance and protection as well as being great value for money. Corvus can be easily wall mounted behind your audio system.
- Suitable for all audio or AV systems
- RFI reduction 30dB
- Central clean power network removes Common and Differential Mode mains noise
- 9 independent outlets stop Differential Mode cross contamination
- 13,500A instantaneous protection
- Fully star-earthed network
- Multi-strand 6n OFC silver-plated internal wiring with FEP dielectric
- Supplied with IsoTek EVO3 Premier power cable
- UK, EU, US, AU & CH outlets available

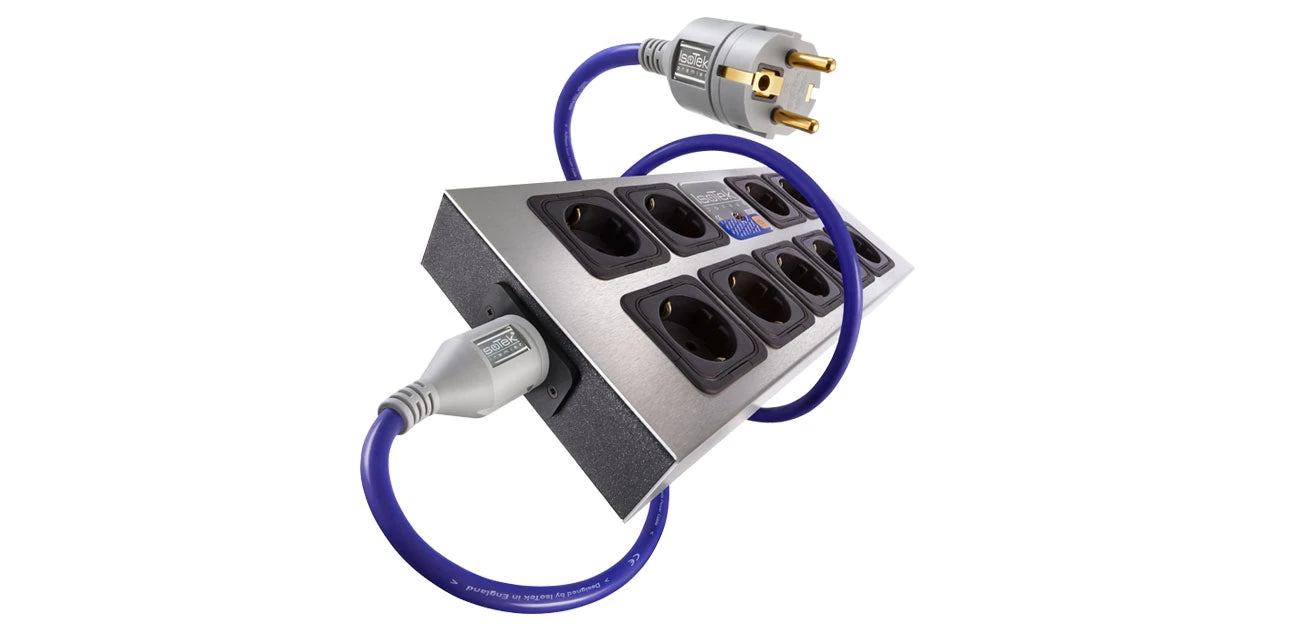

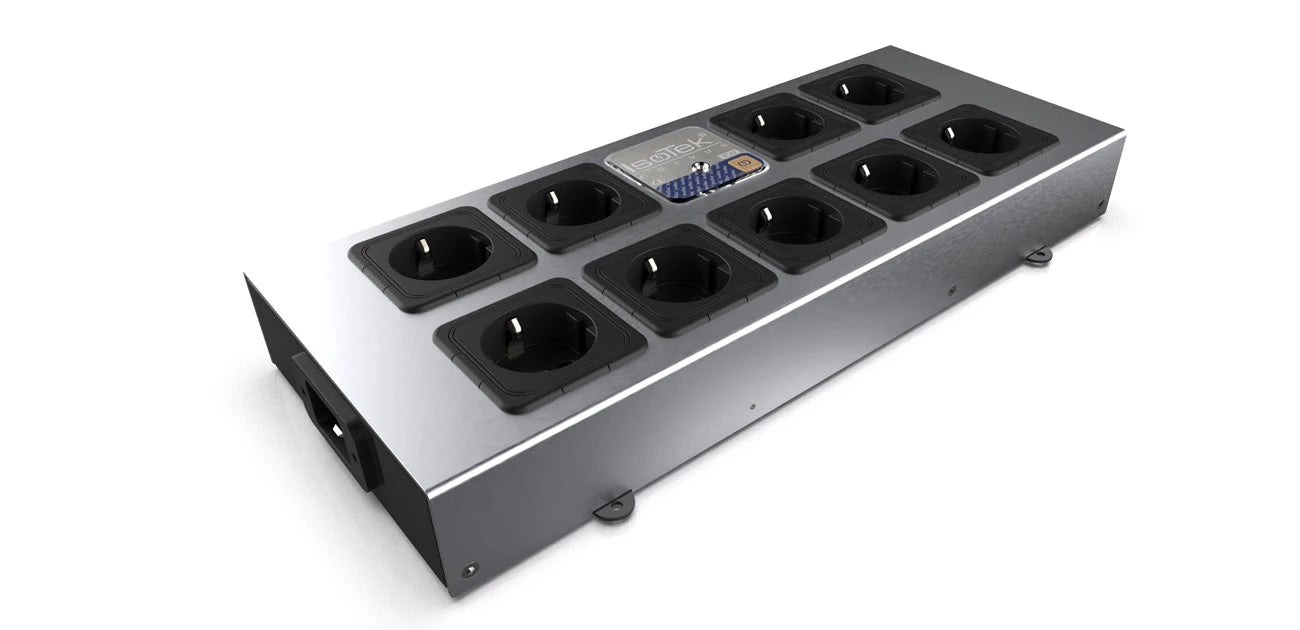

The EVO3 Corvus is a compact yet elegant power cleaning and distribution centre measuring 363mm in length, 146.5mm wide and just 45mm high. It features nine individual outlets, which reference back to the central PCB. Most power filters of this style join output sockets together, running each in series. This is an error as Differential Mode Noise created by your connected electronics will cross-contaminate from one output socket to the next. The electrical architecture and design of Corvus is superior.
The EVO3 Corvus has a unique delta filter topology ensuring class-leading power cleaning of both Common Mode and Differential Mode mains noise. Clean power is then delivered to its nine output sockets – each one independently isolated to prevent cross-contamination of mains noise. The internal wiring is of the highest standard, pure 6n oxygen free copper conductor strands with silver-plating offer low resistance and high amperage. A PTFE dielectric is used to protect the conductors as well as giving the ultimate internal power delivering system. Furthermore, 13,500A of instantaneous protection is provided, safeguarding valuable equipment via IsoTek’s unique sequential and repeatable protection system.
The internal wiring of IsoTek products synergizes with the range of IsoTek power cables. One critical but overlooked area is maintaining commonality of design and material properties though an audio wiring loom, be it signal carrying cables or your power cable network.
|NUMBER OF OUTLETS||9|
|TYPE OF OUTLETS||UK, EU, US, AU & CH|

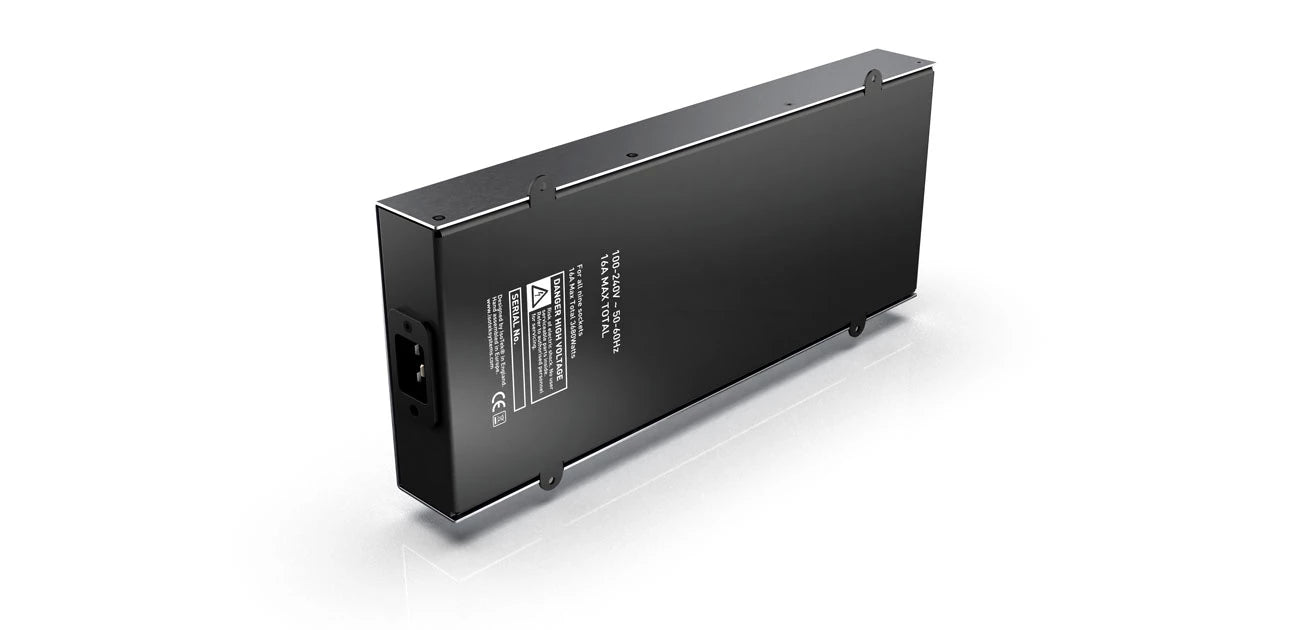

|MAINS INLET||16A IEC C20|
|MAINS VOLTAGE||100-240V / 50-60Hz|
|MAXIMUM CURRENT||16A HRC|
|TOTAL WATTAGE||3,680W (@230V) / 1,840W (@115V)|
|DIMENSIONS (W x H x D)||146.5 x 45 x 363mm|
