Fyne Audio F1-12
Fyne Audio F1-12

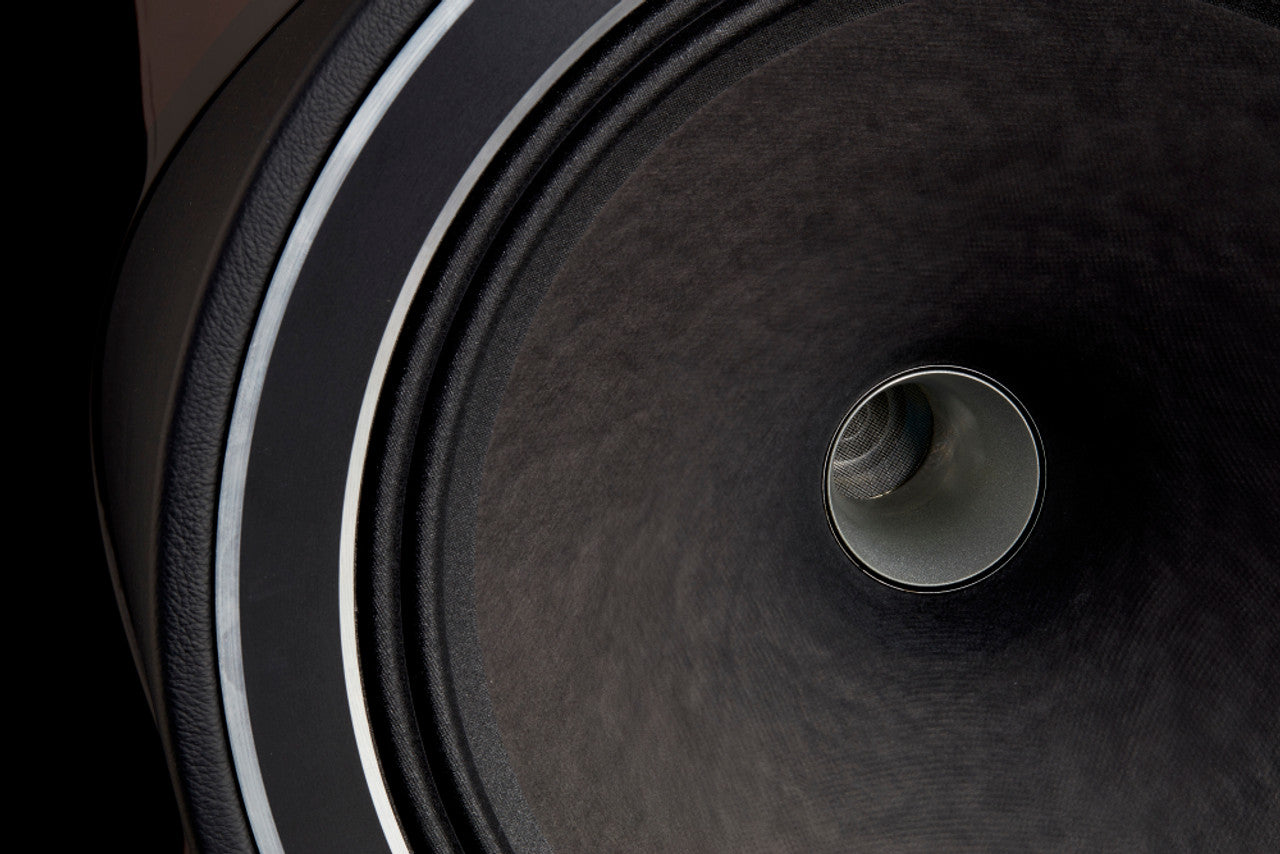

The epic F1-12 is Fyne Audio’s flagship loudspeaker, embodying the brand’s philosophy, expertise and engineering excellence into a truly outstanding design. The imposing twin cavity cabinet is supported on a 20kg machined aluminium plinth that houses Fyne’s state of the art BassTrax LF diffuser. At its heart, the F1-12 boasts Fyne’s largest IsoFlare driver to date. This seamlessly mates a 300mm (12″) multi-fibre cone LF unit with a 75mm titanium dome compression tweeter to create a point source, time aligned transducer delivering pure isotropic radiation across the entire audio spectrum. Breathtakingly dynamic and revealing with a smoothly extended HF, the F1-12 delivers music with ultimate realism and listener engagement. Designed, hand crafted and hand finished at Fyne Audio’s UK manufacturing facility in stunning real walnut veneer with burr walnut inlay, the F1-12 represents the pinnacle of UK’s Hi-Fi speaker design.
Product Specifications
| System Type | 2 way, downwards firing port, with BassTrax Tractrix diffuser* |
| Recommended amplifier power (Watt RMS) | 20 - 350 |
| Continuous power handling (Watt RMS) | 175 |
| Sensitivity (2.83 Volt @ 1m) | 96dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 26Hz - 26kHz |
| Drive unit complement | 1 x 300mm IsoFlare point source driver, multi-fibre bass / midrange cone, with 75mm titanium dome compression tweeter, neodymium magnet system |
| Crossover frequency | 750Hz |

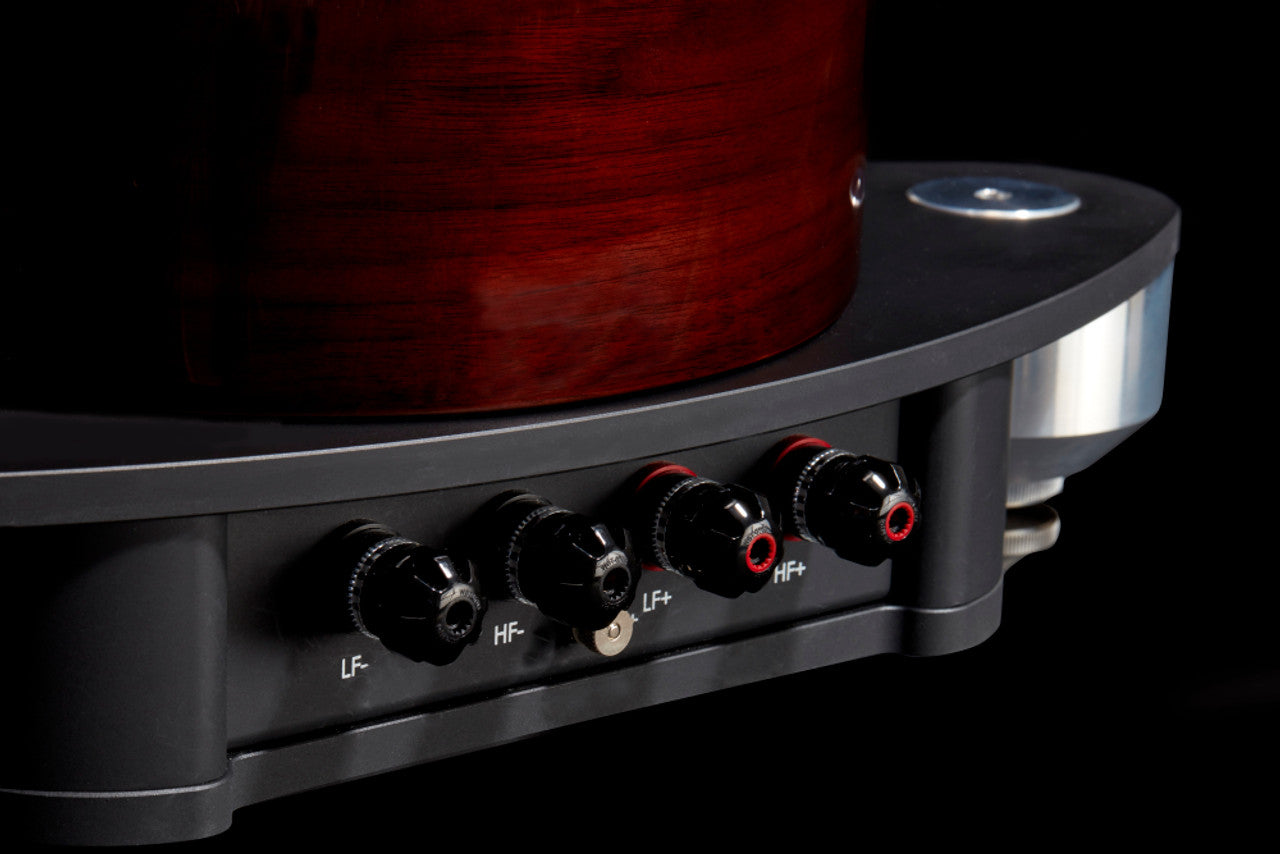

| Crossover type | Bi-wired passive low loss, 2nd order low pass, 2nd order high pass, Deep Cryogenically Treated |
| System adjustments | High frequency energy (750Hz - 26kHz) +/-3dB Presence (2.5kHz - 5.0kHz) +/- 3dB |
| Dimensions - HxWxD | 1350 x 450 x 680mm (53.2” x 17.7 x 28.6”) |
| Weight - Each | 72kg |
| Finishes | Piano Gloss Walnut |
